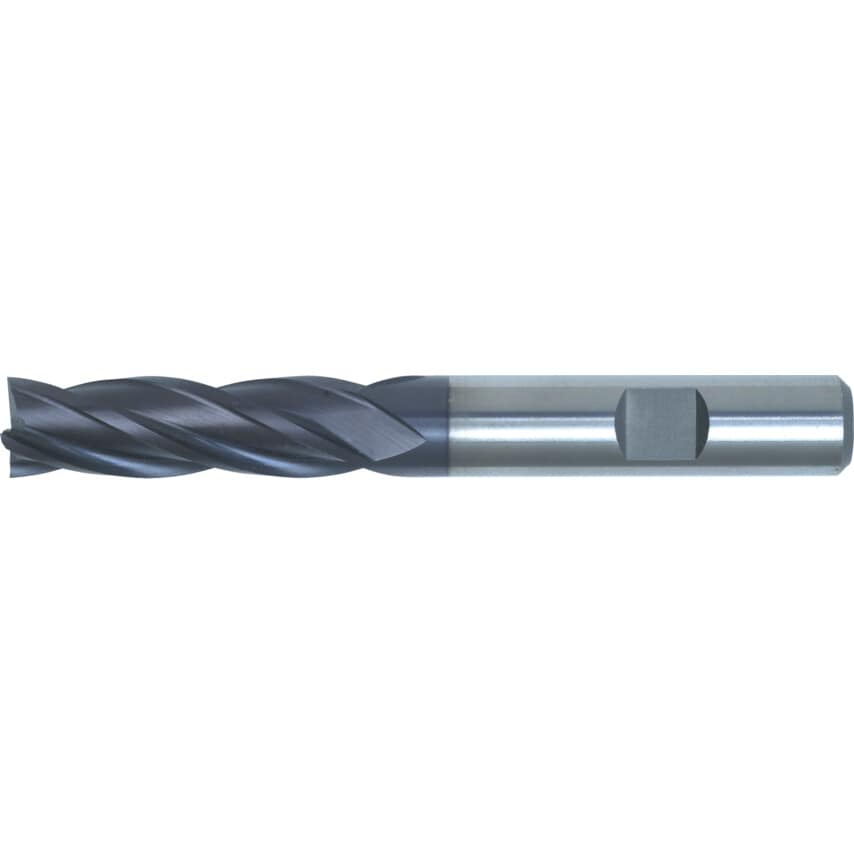

Series 92 - Long Series
Dimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to k10. Shank diameter to h6.
The combination of HSS-E PM and TiALN provides a cutter that is ideally suited to dry and semi-dry machining of materials up to 45 HRC, stainless steels and Aerospace alloys.
| Finish/Coating | TiAlN |
| Material Grade | M35 |
| Milling Application | Slotting | Profiling | Semi-finishing | Finishing |
| Shank Diameter | 16.0mm |
| Cutter Style | Special Geometry Cutters |
| Length Type | Long |
| Coolant Delivery | External |
| Number of Flutes | 6mm |
| Shank Diameter Tolerance | H6 |
| Helix Angle | 30\u00b0 |
| Flute Length | 45.0mm |
| Overall Length | 100.0mm |
| Milling Cutter Type | End Mills |
| System of Measurement | Metric |
| Cutting Direction | Right Hand |
| Material | Cobalt High Speed Steel |
| Helix Direction | Right Hand |
| Cutter Diameter | 16.0mm |
| Flute Type | High Helix |
| Cutter Diameter Tolerance | K10 |
| Standards Met | DIN 844 | DIN 1835B |
| Shank Type | Weldon Flat |
| Plunge Type | Centre Cutting |
