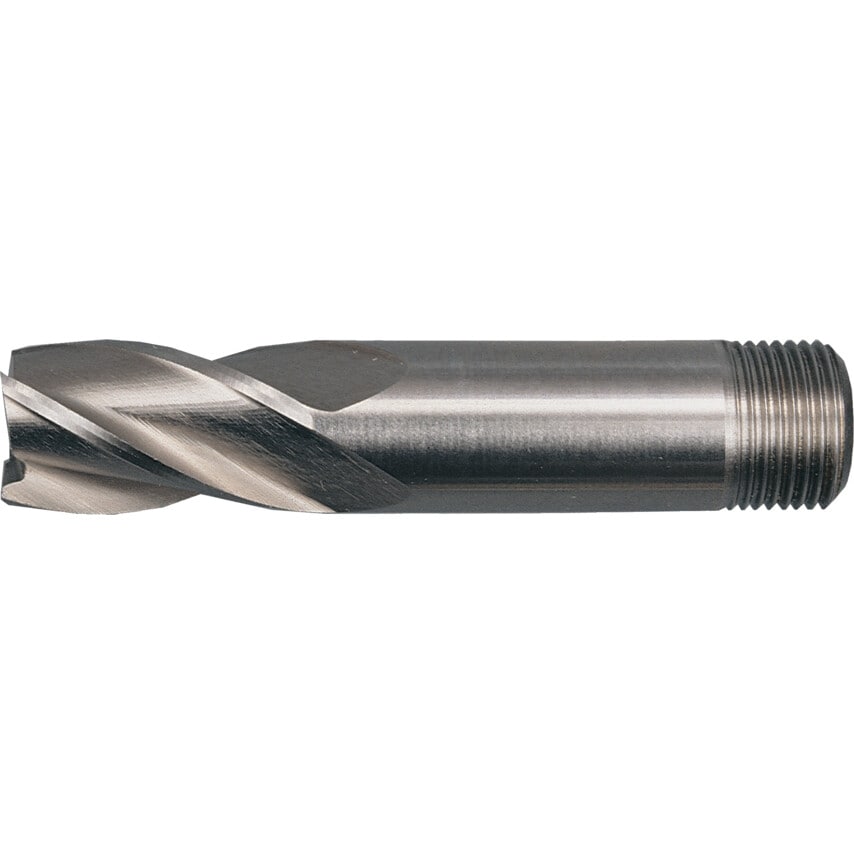

Short series E410T used for profile milling and producing open slots. Manufactured from high speed steel with a bright finish for improved durability and cutting performance.
Features and Benefits
High speed steel construction for improved stock removal
4 flutes for improved cutting performance
Excellent heat and wear resistance properties
Typical Applications
Milling
Standards
BS 122: Part 4: 1980
Bright finish. Flute type : 30 helix.
Manufactured to BS 122 : Part 4 : 1980.
METRIC TOLERANCES:
Diameter: up to 38.00mm. Tolerance: +0.0630, -0.0130.
Diameter: Over 38.00mm ~. Tolerance: +0.1250, -0.0000.
| Helix Angle | 30\u00b0 |
| Cutter Diameter Tolerance | K10 |
| Material Grade | M2 |
| Cutter Diameter | 14.00mm |
| Overall Length | 73.50mm |
| Series | E410T |
| Milling Cutter Type | End Mills |
| Finish/Coating | Bright |
| Coolant Delivery | External |
| Standards Met | BS 122 |
| Cutter Style | Square End |
| Material | HSS |
| Shank Diameter Tolerance | H6 |
| Cutting Direction | Right Hand |
| Flute Type | Helical |
| End Mill Type | End Mill |
| Plunge Type | Non-centre Cutting |
| Reach Type | Standard Neck |
| Shank Diameter | 16.00mm |
| Number of Flutes | 4 |
| Length Type | Short |
| Flute Length | 28.50mm |
| Shank Type | Threaded |
| System of Measurement | Metric |
