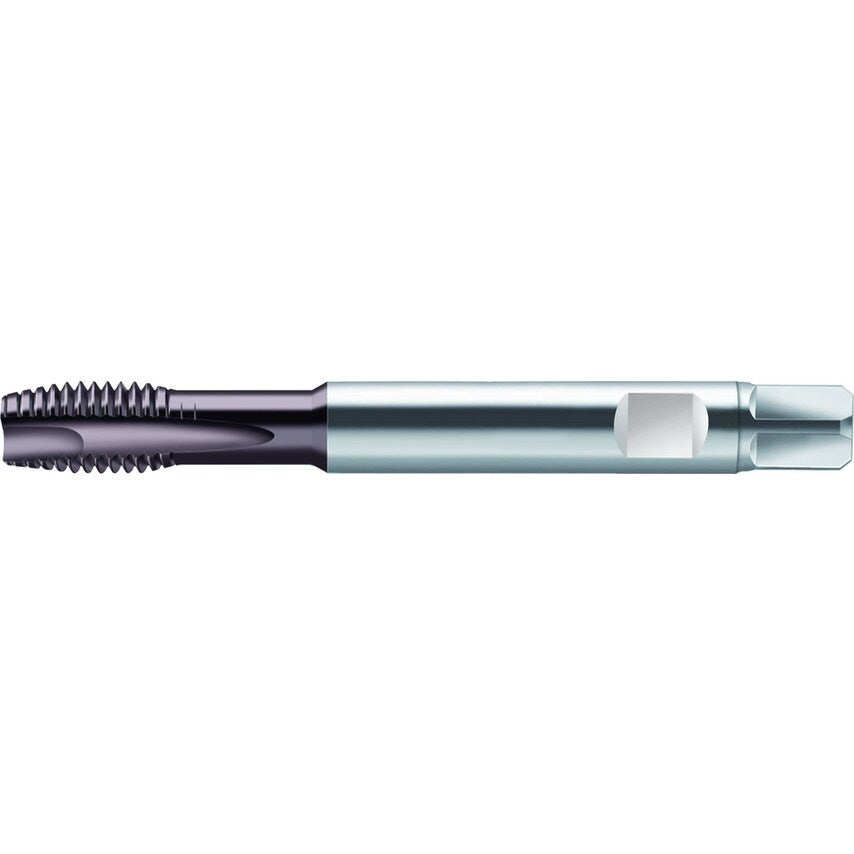

HSS-E machine taps Prototex Synch. B = 3.5-5xTP (plug chamfer) 3xD M/6HX ~DIN 376 Suitable for through hole THL M 20 P=0.0984in
| Overall Length | 140mm |
| Driving Square Length | 15mm |
| Thread Pitch | 2.5mm |
| Tool Designation | S2026302-M20 |
| MFR Part No. | 5101679 |
| Cutting Edge Length | 25mm |
| Thread Size | M 20 |
| Shank Diameter | 16mm |
| Clamping Width | 12mm |
| Number of Grooves | 4 |
| Usable Length | 95mm |
| Connection Diameter | 20mm |
