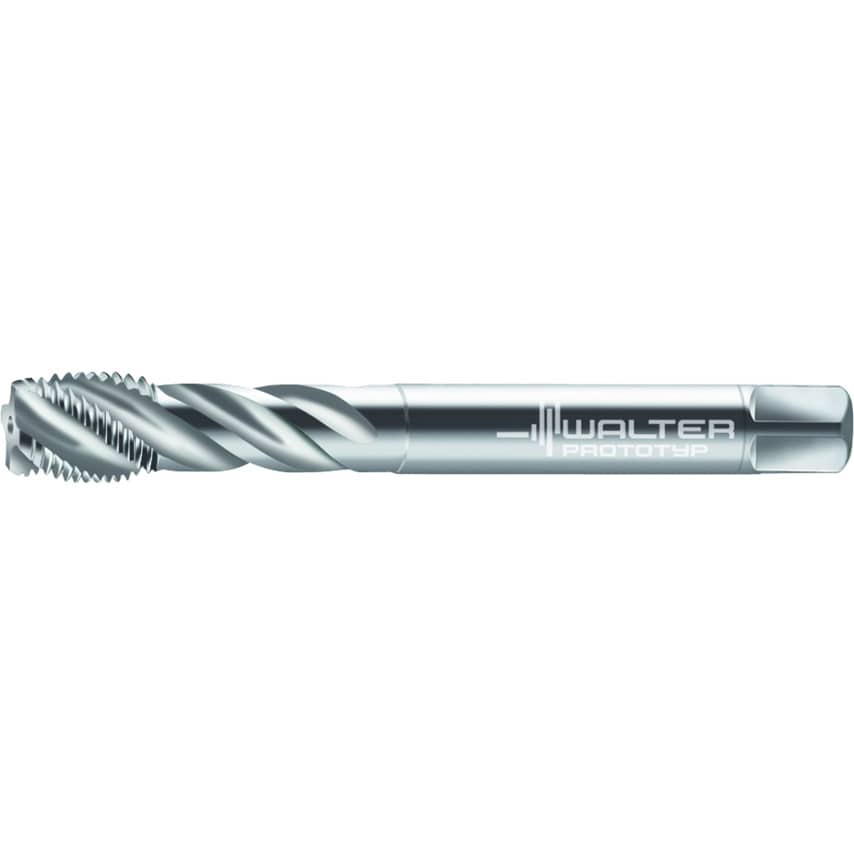

HSS-E machine taps Paradur Uni C = 2-3xTP (semi-bottom chamfer) 3xD G/NORMAL DIN 5156 right hand flute 40 Suitable for blind hole G 1"-11 P=11
| Number of Grooves | 5 |
| Thread Size | G 1in-11 |
| Tap Type | Machine Tap |
| Thread Pitch | 11 |
| Material | HSSE |
| Usable Length | 93mm |
| MFR Part No. | 5200944 |
| Functional Length | 160mm |
| Clamping Width | 20mm |
| Connection Diameter | 25mm |
| Cutting Edge Length | 22mm |
| Driving Square Length | 23mm |
| Tool Designation | 7456770-G1 |
| Threads Per Inch | 11 |
