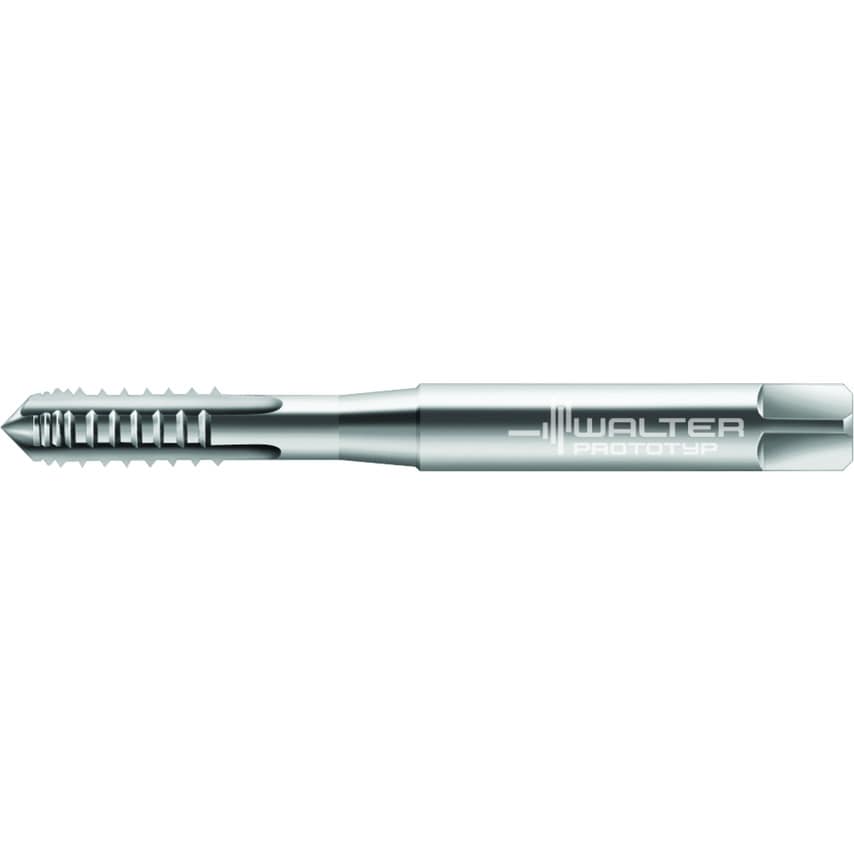

HSS-E machine taps Paradur H AZ C = 2-3xTP (semi-bottom chamfer) 1,5xD M/6H DIN 371 neutral (straight) flute 0 Suitable for blind hole Suitable for through hole M 3 P=0.0197in
| Functional Length | 56mm |
| Cutting Edge Length | 9mm |
| Usable Length | 18mm |
| Driving Square Length | 6mm |
| Tool Designation | 40311-M3 |
| Connection Diameter | 3.5mm |
| Thread Size | M 3 |
| Clamping Width | 2.7mm |
| Thread Pitch | 0.5mm |
| Number of Grooves | 3 |
| MFR Part No. | 5079225 |
