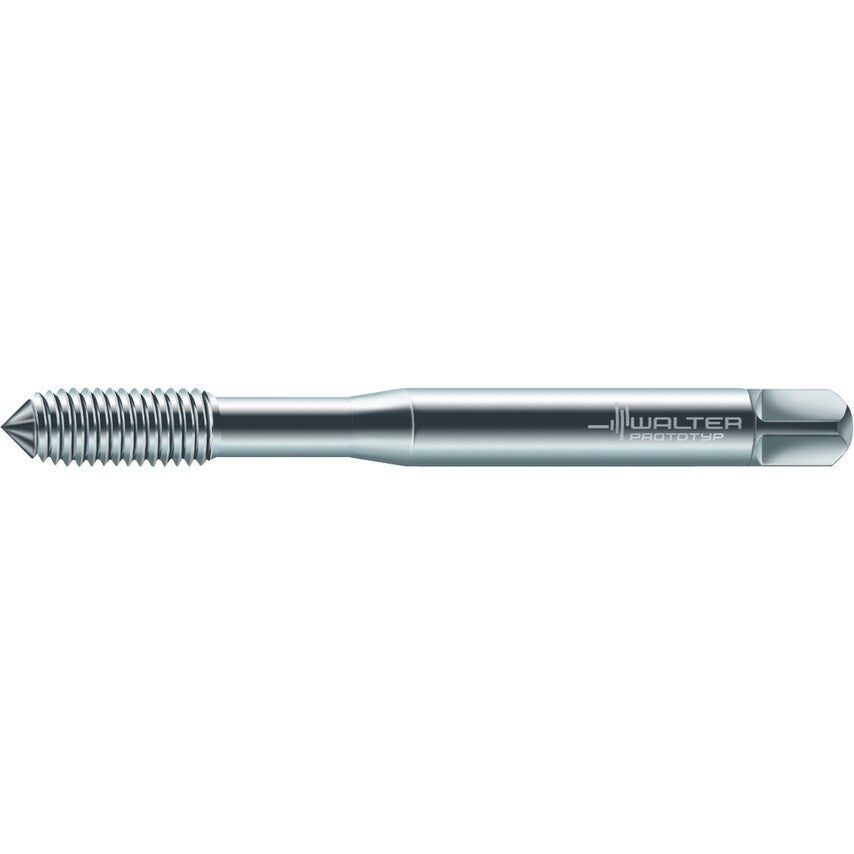

HSS-E machine thread formers Protodyn C C = 2-3xTP (semi-bottom chamfer) 3xD M/6HX DIN 2174 Suitable for blind hole Suitable for through hole M 3.5 P=0.0236in
| Usable Length | 20mm |
| Cutting Edge Length | 11mm |
| Number of Grooves | 4 |
| MFR Part No. | 5201789 |
| Clamping Width | 3mm |
| Functional Length | 56mm |
| Driving Square Length | 6mm |
| Material | HSSE |
| Thread Pitch | 0.6mm |
| Connection Diameter | 4mm |
| Tool Designation | D7061100-M3.5 |
| Thread Size | M 3.5 |
