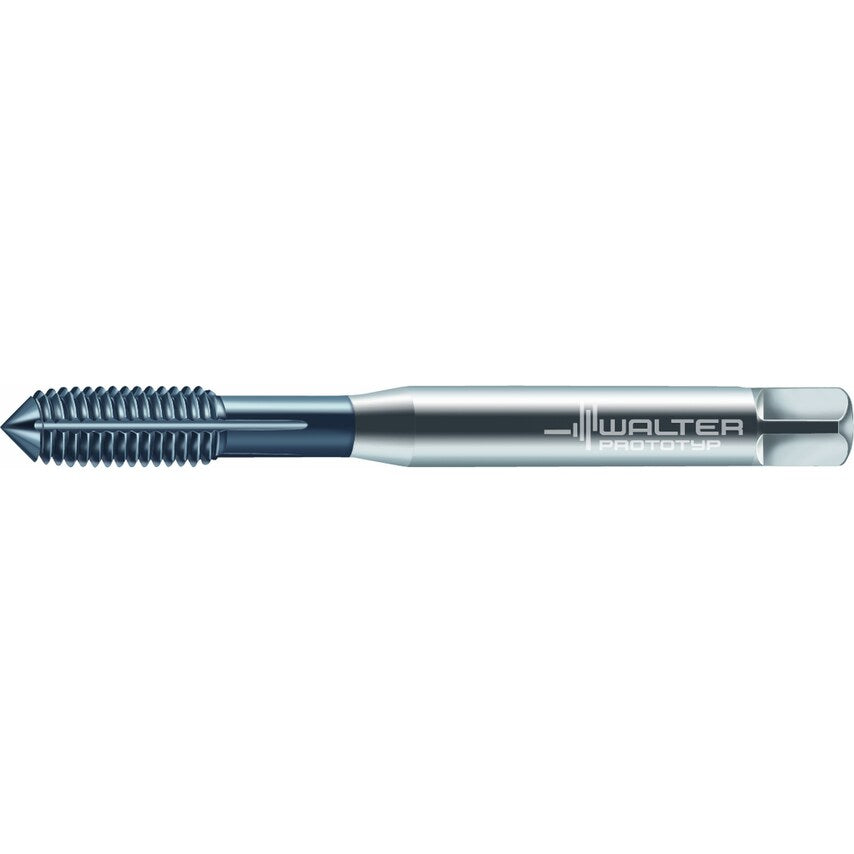

HSS-E machine thread formers Protodyn SF C = 2-3xTP (semi-bottom chamfer) 3,5xD M/6HX DIN 2174 Suitable for blind hole TICN Suitable for through hole M 3 P=0.0197in
| Thread Pitch | 0.5mm |
| Material | HSSE |
| Finish/Coating | TiCN |
| Cutting Edge Length | 9mm |
| Tap Type | Machine Tap |
| Tool Designation | D7061706-M3 |
| Thread Size | M3 |
| Connection Diameter | 3.5mm |
| Clamping Width | 2.7mm |
| Number of Grooves | 4 |
| Thread Standard | Metric |
| Series | Protodyn\u00ae SF |
| Pitch | 0.5mm |
| Driving Square Length | 6mm |
| Usable Length | 18mm |
| ISO Designation | D7061706-M3 |
| Dimensions Standard | DIN 2174 |
| ISO Category | M | N | P | S |
| MFR Part No. | 5201820 |
| Functional Length | 56mm |
