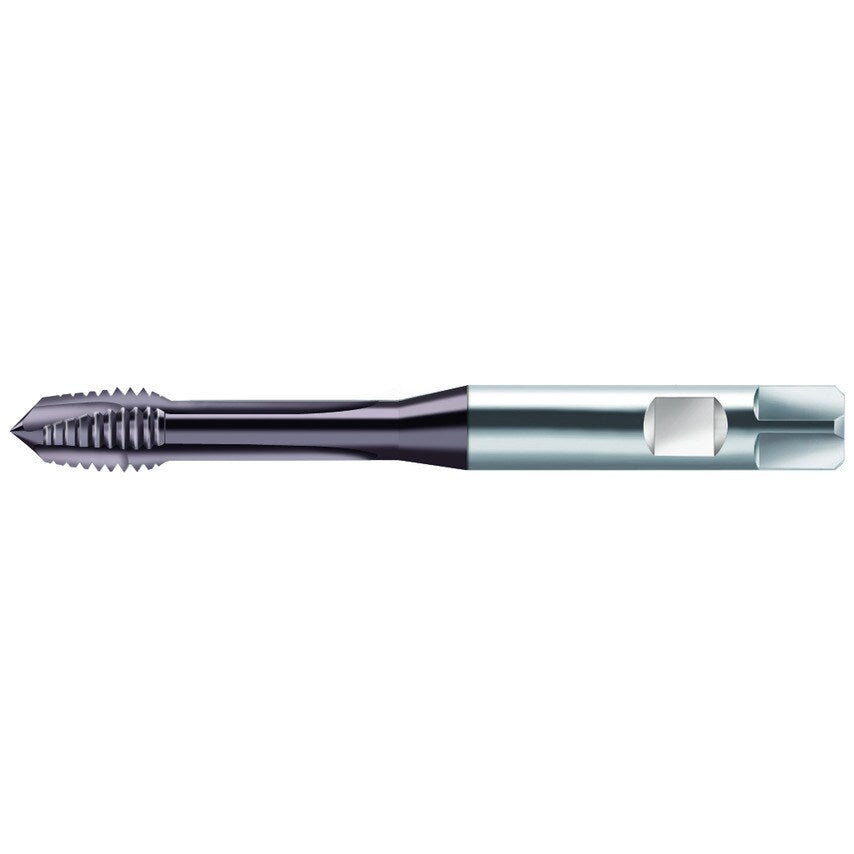

HSS-E machine taps Prototex Synch. B = 3.5-5xTP (plug chamfer) 3xD MF/6HX ~DIN 371 Suitable for through hole THL MF 12x1.5 P=0.0591in
| Thread Size | MF 12x1.5 |
| MFR Part No. | 5101752 |
| Shank Diameter | 12mm |
| Cutting Edge Length | 15mm |
| Thread Pitch | 1.5mm |
| Tool Designation | S2126302-M12X1.5 |
| Clamping Width | 9mm |
| Number of Grooves | 3 |
| Overall Length | 100mm |
| Driving Square Length | 12mm |
| Usable Length | 42mm |
| Connection Diameter | 12mm |
