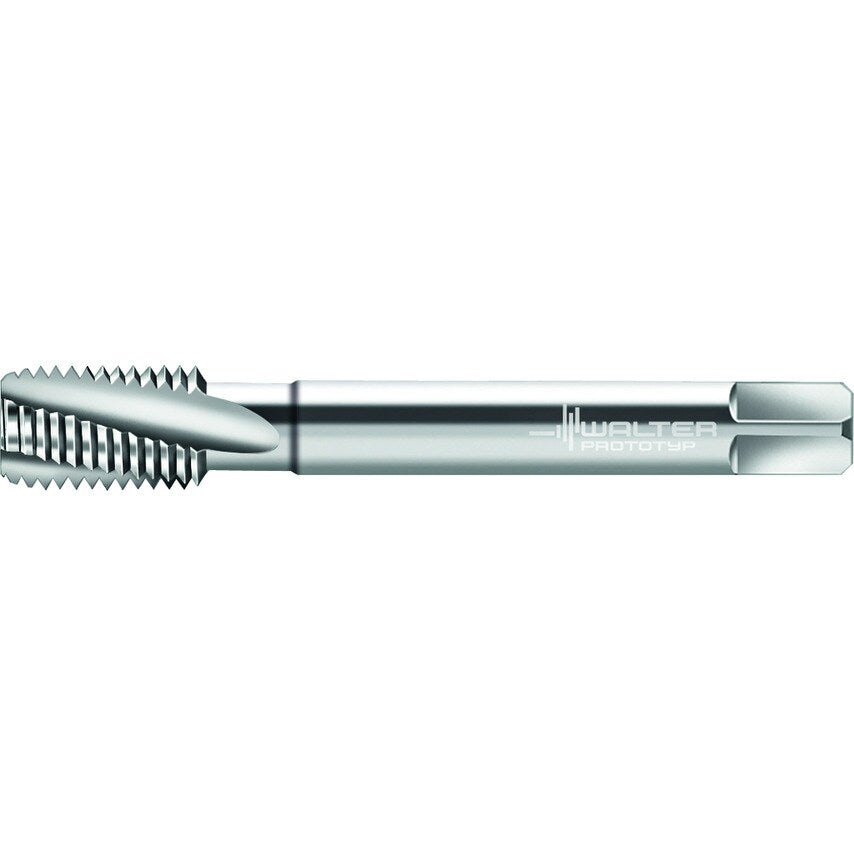

HSS-E PM machine taps Paradur Ti C = 2-3xTP (semi-bottom chamfer) 2xD MF/6HX DIN 374 right hand flute 15 Suitable for blind hole MF 16x1 P=0.0394in
| MFR Part No. | 5077692 |
| Number of Grooves | 4 |
| Connection Diameter | 12mm |
| Thread Pitch | 1mm |
| Driving Square Length | 12mm |
| Cutting Edge Length | 18mm |
| Tool Designation | 21466-M16X1 |
| Usable Length | 58mm |
| Thread Size | MF 16x1 |
| Functional Length | 100mm |
| Clamping Width | 9mm |
