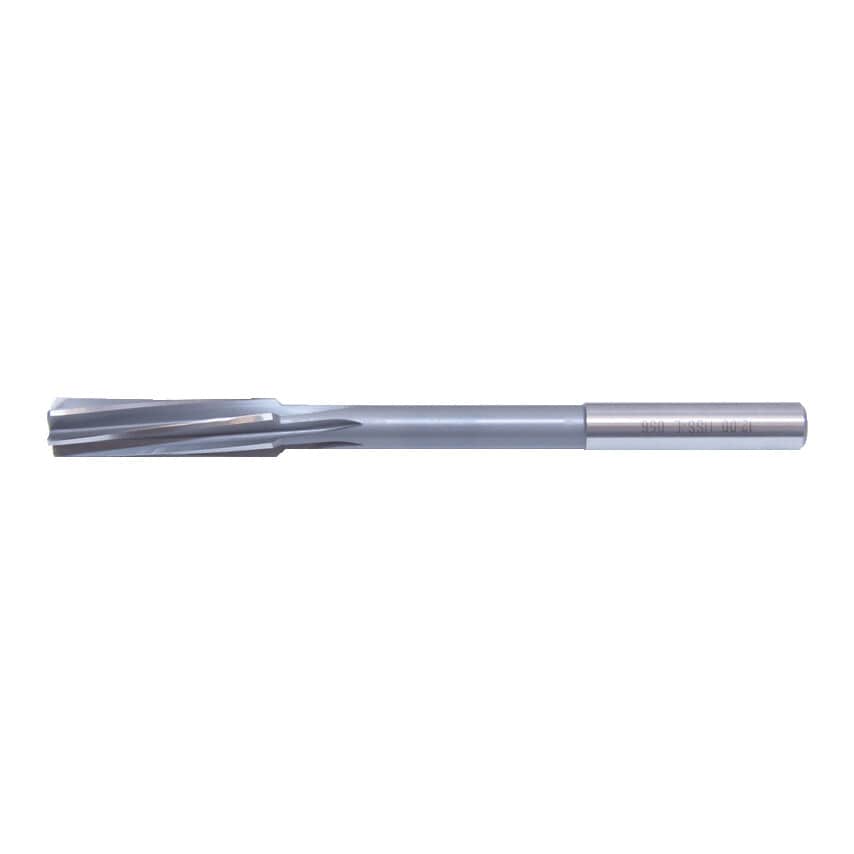

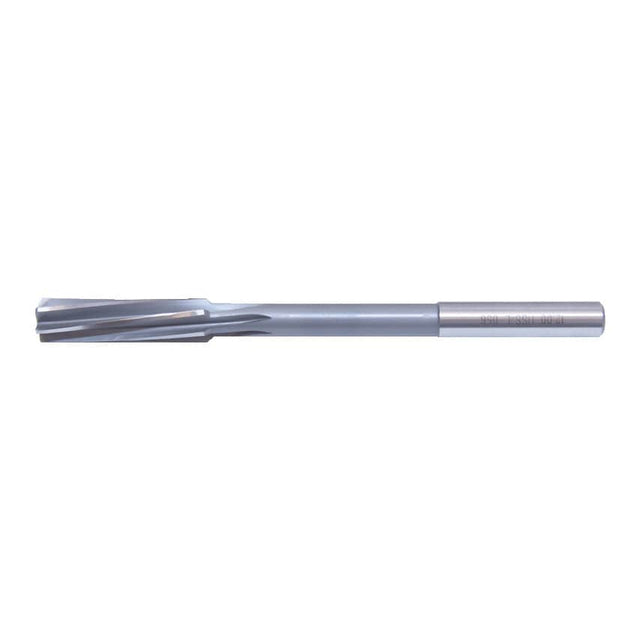

Manufactured from durable high speed steel with a left hand spiral flute for right hand cutting applications. Manufactured to BS 328-4.
Features and Benefits
HSS construction for increased durability
6 flutes for increased chip control
Suitable for right handed cutting applications
Notes
Diameter: ~ up to 3.00. Tolerance: High +0.008, Low -0.004.
Diameter: Over 3.00 ~ up to 6.00. Tolerance: High +0.010, Low -0.005.
Diameter: Over 6.00 ~ up to 10.00. Tolerance: High +0.012, Low -0.006.
Diameter: Over 10.00 ~ up to 18.00. Tolerance: High +0.015, Low -0.008.
Standards
Manufactured to BS 328-4
| Flute Type | Left Hand Spiral |
| Standards Met | BS 328-4 |
| Finish/Coating | Steam Tempered |
| Material | HSS |
| Cutting Direction | Right Hand |
| Length Type | Standard Length |
| Flute Length | 33mm |
| Shank Type | Straight |
| Overall Length | 66mm |
| Material Grade | M2 |
| Reamer Type | Fixed |
| Number of Flutes | 4 |
| Diameter Tolerance | 0.010 - 0.005 |
| Reamer Diameter | 3.5mm |
