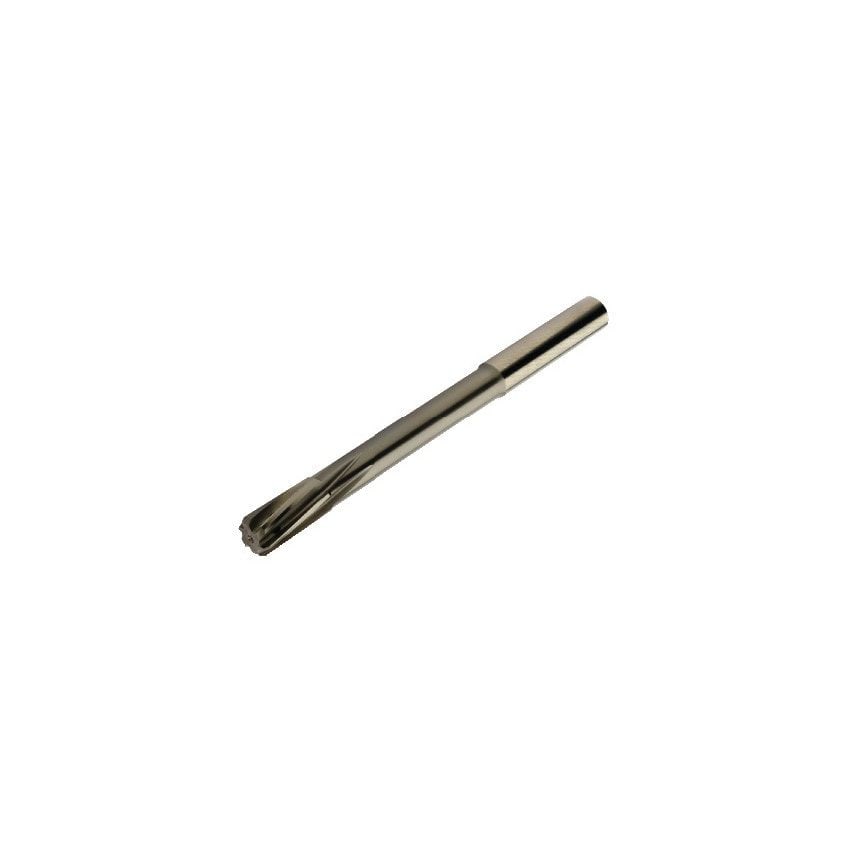

Product Range: CoroReamer 435Tool Type: ReamersCoroReamer 435 is a multi-application, versatile and high speed reamer, suitable for a wide range of materials. It provides close hole tolerances and high-quality surface finish thanks to internal coolant, the cutting edge geometry and extremely unequal spacing of the cutting edges.FLUTE SPACING - Extremely unequal flute spacing means that the divide is not the same for each tooth. As there are no teeth diametrically opposite each other, the reamer produces a hole with improved hole roundness variance.INTERNAL COOLANT - Internal coolant nozzles (axial for straight flute and lateral for spiral flute) deliver coolant directly to the cutting zone, resulting in longer tool life and good chip evacuation.VERSATILE SOLUTIONS - Designed for high performance and secure machining in a variety of materials, applications, components sizes and shapes, allowing maximum machine utilisation.Features & Benefits- Flexible reamer for a wide range of materials- Excellent surface finish on the component- Internal coolant for better chip evacuation and reduced wearApplication- Diameter range: 3.9720 mm (0.1560.787 inch)- Suitable for all industry segments e.g. general machining, die and mould, automotive, energy and power generation- Available in spiral flute for through holes and straight flute for blind holes- Hole tolerance H7
| Usable Length | 100mm |
| Functional Length | 146.99mm |
| Finish/Coating | Uncoated |
| Weight | 597.3g |
| MFR Part No. | 26266878 |
| Coolant Entry Style | 1 |
| Rotational Speed Maximum | 1528 1/min |
| Overall Length | 150mm |
| Material | Uncoated WC |
| CoroPak | 12.2 |
| Coating Process Type | Uncoated |
| Cutting Diameter | 20mm |
| Standards Met | COROMANT |
| Connection Diameter | 20mm |
| Material Grade | H10F |
| Unit Measured | Metric |
