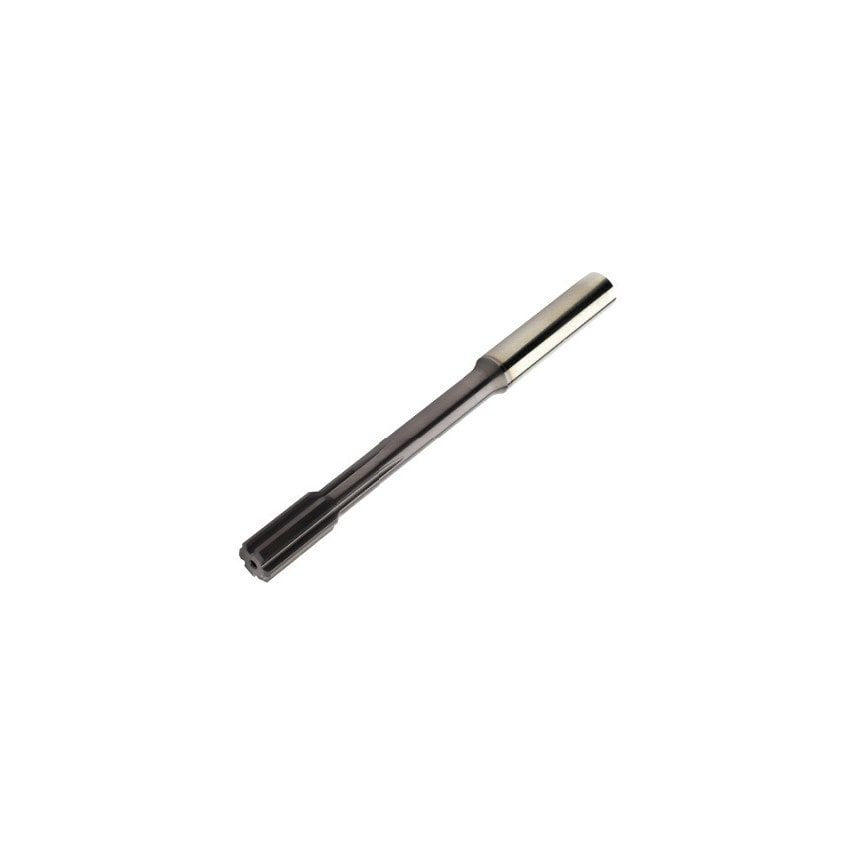

Product Range: CoroReamer 835Tool Type: ReamersCoroReamer 835 is optimized for specific materials. Internal coolant and extremely unequal spacing of the cutting edges are two features that promise really close hole tolerances and high-quality surface finish.Flute spacing - Extremely unequal flute spacing means that the divide is not the same for each tooth. As there are no teeth diametrically opposite each other, the reamer produces a hole with improved hole roundness variance.Internal Coolant - Internal coolant nozzles (axial for straight flute and lateral for spiral flute) deliver coolant directly to the cutting zone, resulting in longer tool life and good chip evacuation.Coating - Available with TiAIN coating which allows an increase in cutting parameters, resulting in improved productivity and reduced built-up edge.Features & Benefits- High-performance solid carbide reamer- Available with spiral flute for through holes or straight flute for blind holes- Internal coolant for better chip evacuation and reduced wearApplicationFor all industry segments e.g. general machining, die and mould, automotive, energy and power generation.
| Rotational Speed Maximum | 2183 1/min |
| Unit Measured | Metric |
| Material Grade | 1024 |
| Finish/Coating | TiAlN |
| Connection Diameter | 8mm |
| MFR Part No. | 26267025 |
| Cutting Diameter | 7mm |
| Weight | 56.7g |
| Standards Met | COROMANT |
| Achievable Hole Tolerance | H7 |
| Usable Length | 64mm |
| Material | Coated WC or Cermet |
| Coolant Entry Style | 1 |
| CoroPak | 12.2 |
| Coating Process Type | PVD |
| Overall Length | 100mm |
| Functional Length | 98.95mm |
