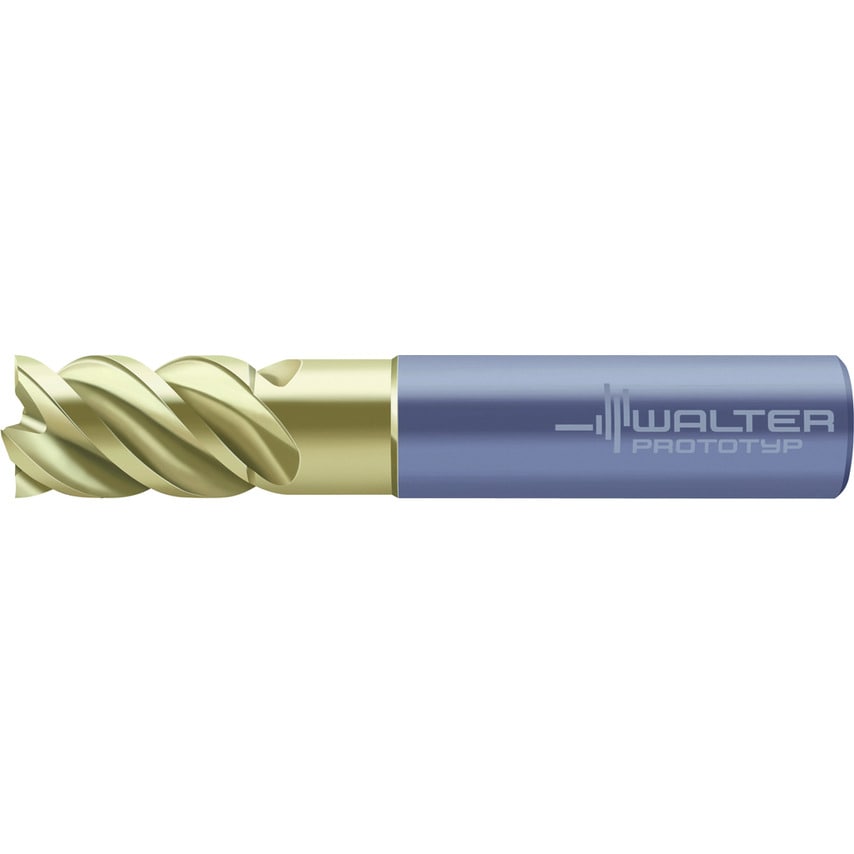

Solid carbide shoulder/slot milling cutter Proto max Parallel shank inch flute helix angle 50 center cutting capability TAZ Dc=0.3126in Z=4
| Tool Designation | AH4034217-5/16 |
| Shank Diameter | 0.38in |
| Overall Length | 3in |
| Number Of Teeth | 4 |
| MFR Part No. | 5905823 |
| Useable Length | 0.76in |
| Cutting Edge Length | 0.51in |
| Functional Length | 1.44in |
| Neck Diameter | 0.3in |
| Cutting Edge Diameter | 5/16in |
