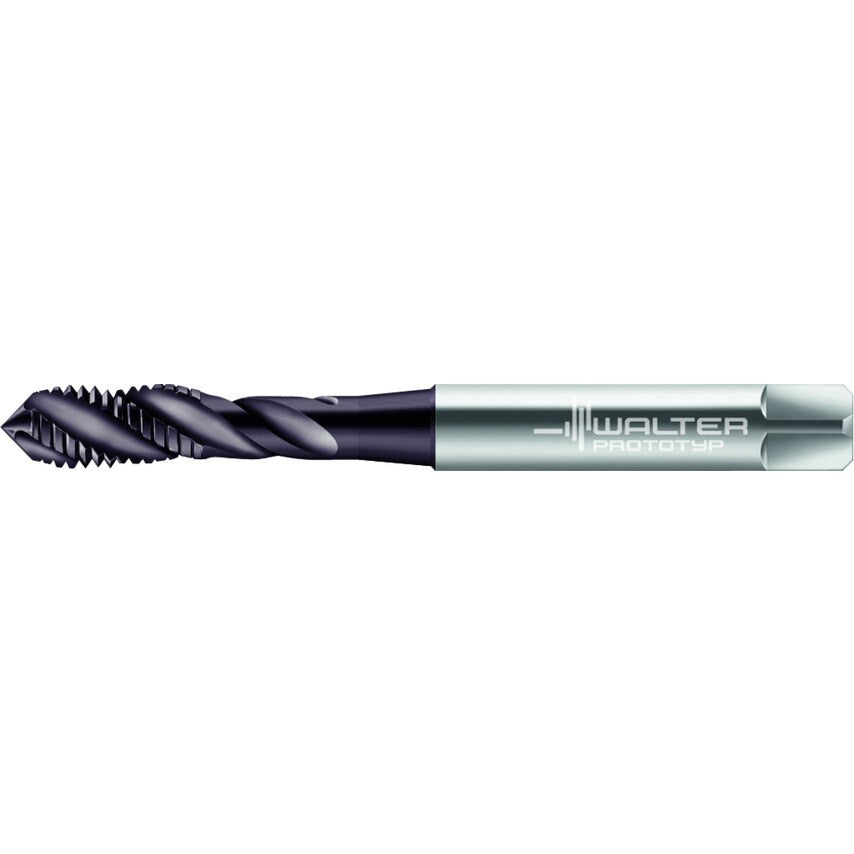

HSS-E PM machine taps Paradur Eco Plus C = 2-3xTP (semi-bottom chamfer) 3xD M/6GX ~DIN 371 right hand flute 45 Suitable for blind hole THL M 3 P=0.0197in
| Thread Pitch | 0.5mm |
| Tool Designation | EP2053302-M3 |
| Functional Length | 56mm |
| Driving Square Length | 6mm |
| Connection Diameter | 3.5mm |
| Usable Length | 11mm |
| Clamping Width | 2.7mm |
| MFR Part No. | 6245622 |
| Number of Grooves | 3 |
| Thread Size | M 3 |
| Cutting Edge Length | 6mm |
