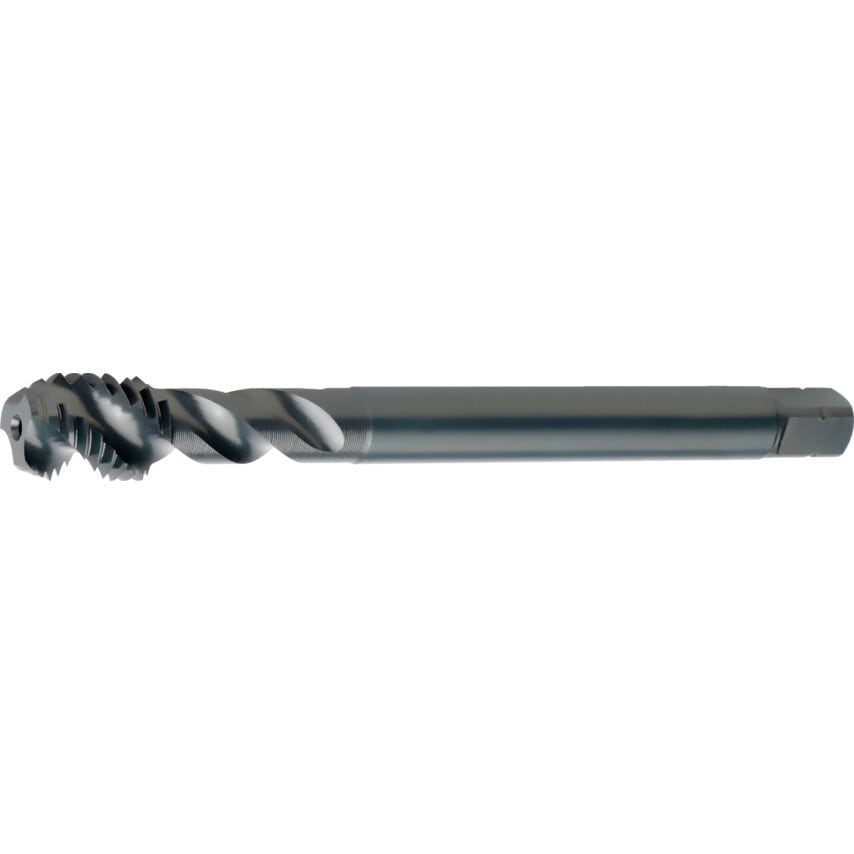

EX01 Steam Tempered Metric
Dormer machine tap ranges have been designed for use with a high quality floating tool holder. For synchronous tapping on CNC machines with a rigid tapping cycle.
Manufactured from HSS-XS1 premium quality vanadium powder steel and HSCo for superior toughness and edge strength, to give a high resistance to wear and long tool life.
Metric Thread
Short Thread Length for low torque and better chip evacuation.
2.5xD
Sizes M2 to M64
45 Helix angle
Spiral Flute for blind hole
Three radii profile, with a constant rake angle all along the flute, is specially designed to give an optimum performance and chip evacuation in materials being threaded.
Steam Tempered Suitable for: Steel, Stainless Steel and Cast Iron
Special gold finish with bright flutes/thread, or steam tempering (blue) guarantee a smooth cutting action with less build up on the cutting edge.

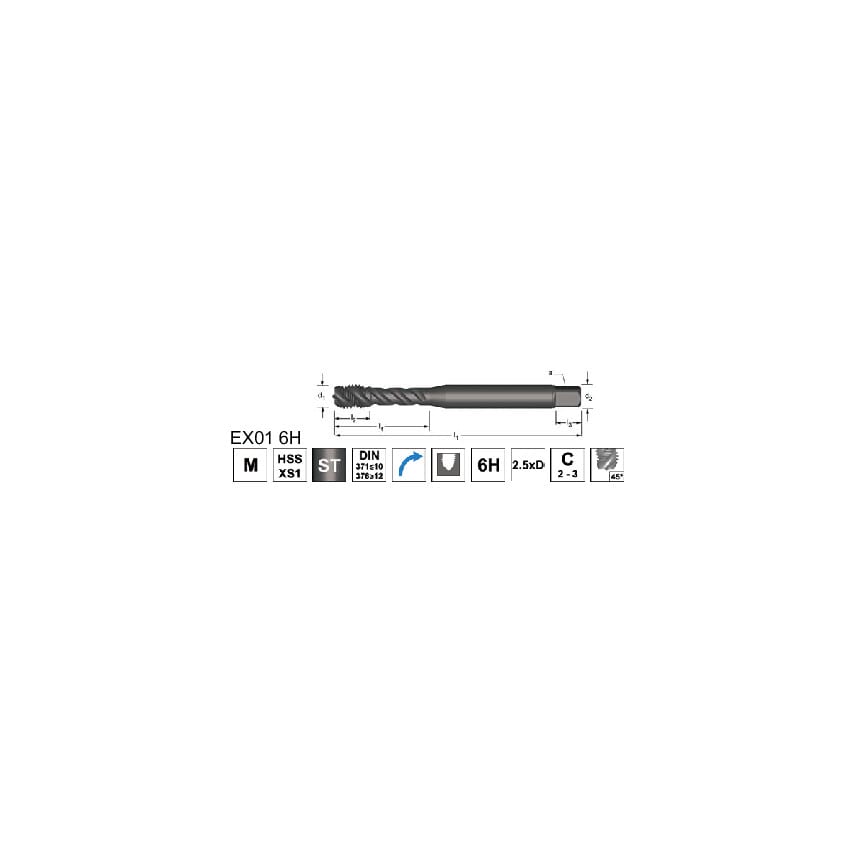

| Tap Type | Spiral Flute |
| Thread Size | M3 |
| Material | Cobalt High Speed Steel |
| Series | EX016H |
| Thread Standard | Metric Coarse |
| Overall Length | 56.00mm |
| Helix Angle | 45 |
| Square Width | 2.70mm |
| Class of Fit | 6H |
| Shank Diameter | 3.5mm |
| Material Grade | M35 |
| Thread Direction | Right Hand |
| Finish/Coating | Steam Tempered |
| Dimensions Standard | DIN 371 |
| Number of Flutes | 3 |
| Product Type | Spiral Flute Machine Tap |
| Thread Length | 6.0mm |
| Tapping Depth | 18.00mm |
| Lead | C 2-3 |
| Pitch | 0.5 |
| MFR Part No. | EX01M3 |
