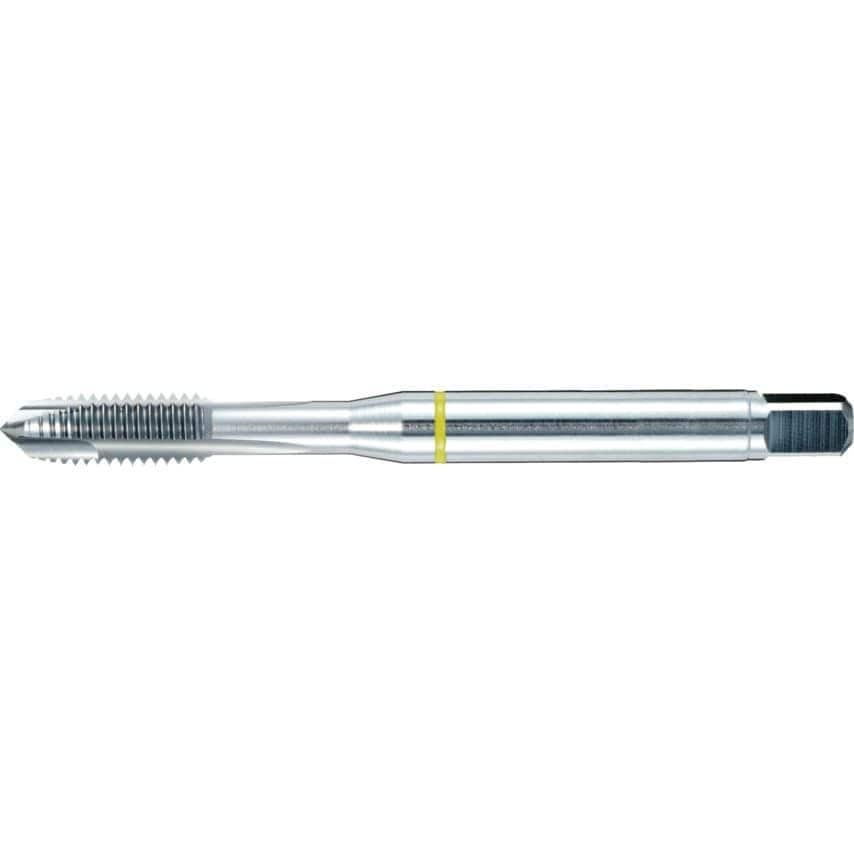

Also available in Metric Fine thread form (E299)Excellent for Application Good for ApplicationE297 - Hard Chrome
| Shank Diameter | 20mm |
| Shank | Cylindrical Shank with Square |
| Flute Geometry (FDC) | Spiral\u00a0Point Geometry |
| Material | HSS-E-PM |
| Finish | Flash Crome |
| Square Width | 16mm |
| Thread Form | M - Metric coarse |
| Series | E297 |
| Material Grade | M35 |
| Tap Type | Spiral Point |
| Standards | DIN 376 |
| Thread Length | 38mm |
| Thread Size | M27 |
| MFR Part No. | E297M27 |
| Thread Direction | Right Hnd |
| Pitch | 3mm |
| Cutting Direction | Right |
| Class of Fit | 6H |
| Finish/Coating | Flash Chrome |
| Unit of Measurement | Metric |
| Product Series | E297 |
| Lead | Second |
| Product Type | Taps |
| Overall Length | 160mm |
| Tap Chamfer Style | B 3.5 - 5 |
| Number of Flutes | 4 |
| Tap Application | Through Hole |
| Dimensions Standard | DIN 376 |
| Thread Standard | Metric Coarse |
