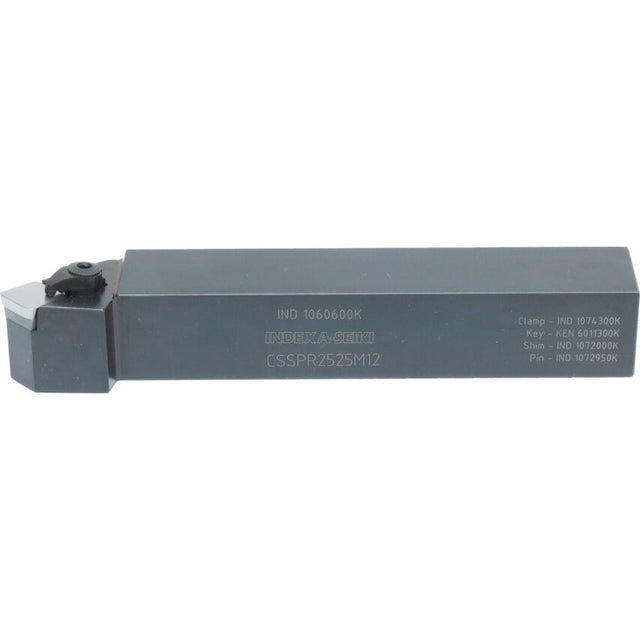

45 approach for 11 positive square inserts.
| Clearance Angle | 11 |
| Insert Shape | Square |
| MFR Part No. | CSSPR2525M12 |
| Insert Holding Type | Top Clamp |
| Cutting Direction | Right Hand |
| Toolholder Style | CSSP |
| Shank Width (b) | 25 |
| Shank Style | Offset |
| Neck Length | 28mm |
| Head Length (l2) | 28 |
| Insert Inscribed Circle | 12.7 |
| ISO Designation | CSSPR 2525M12 |
| Cutting Height (h1) | 25 |
| Insert Size | 1203 |
| Approach Angle | 45 |
| Insert Cutting Edge Length | 12 |
| Shank Material | Steel |
| Side to Cutting Tip (f) | 32 |
| Overall Length (l1) | 150 |
| Set Type | Individual Toolholder |
| Coolant Delivery | External |
| Insert Style | SP_N | SP_R |
| Shank Height (h) | 25 |
