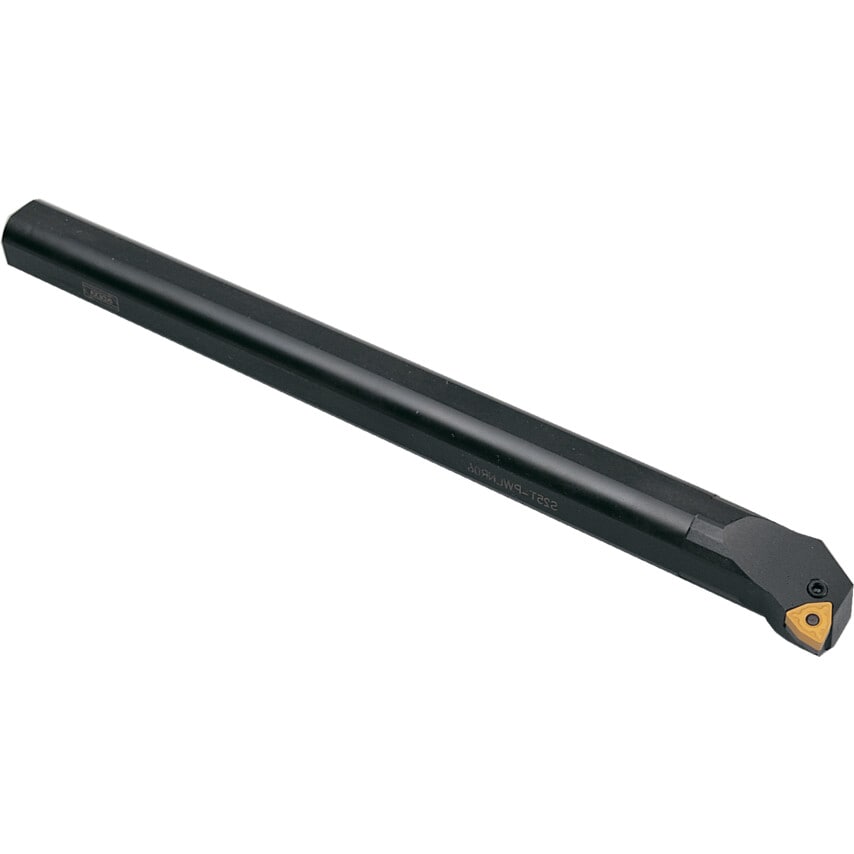

95 approach for negative 80 Trigon inserts.
| Insert Holding Type | Lever Lock |
| Cutting Height (h1) | 9mm |
| Insert Style | WN_G |
| Shank Diameter (d) | 16mm |
| Clearance Angle | 0\u00b0 |
| Centre To Cutting Tip | 10mm |
| Cutting Direction | Left Hand |
| Set Type | Individual Boring Bar |
| Coolant Delivery | External |
| Insert Inscribed Circle | 9.52mm |
| Insert Cutting Edge Length | 6.5mm |
| Product Type | Boring Bar |
| ISO Designation | S16R PWLNR 06 |
| Insert Shape | Trigon |
| Toolholder Style | PWLN |
| Shank Material | Steel |
| Overall Length (l1) | 200mm |
| Insert Size | 0604 |
| Neck Length (l2) | 44mm |
| MFR Part No. | S16R-PWLNL06 |
| Approach Angle | 95\u00b0 |
| Shank Height (h) | 15mm |
