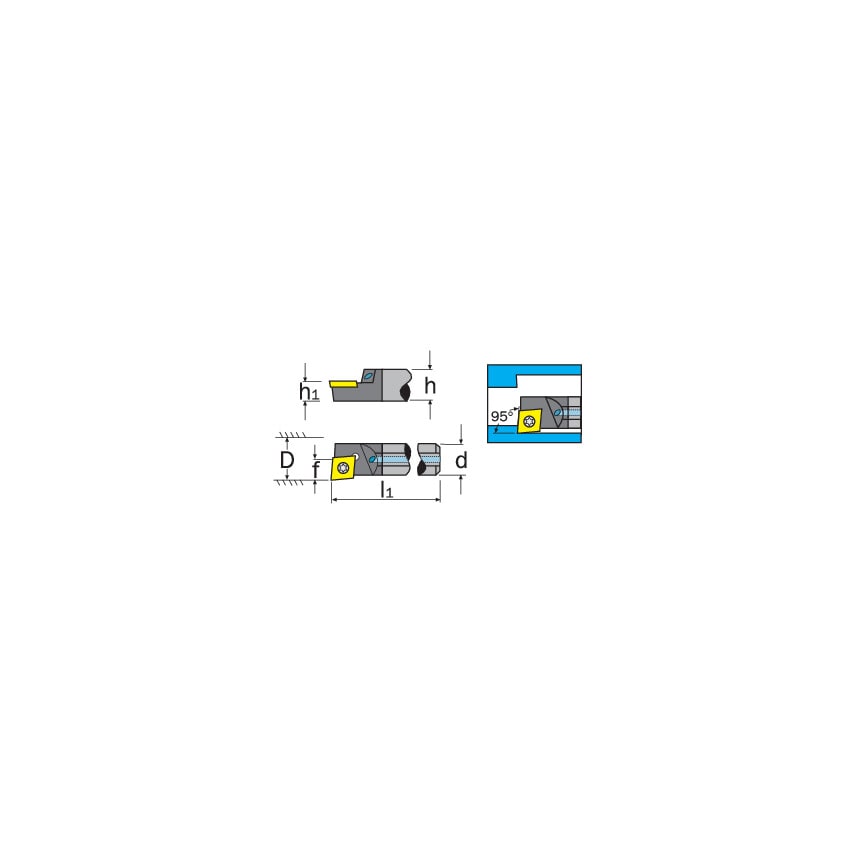

95 approach for 7 positive 80 rhombic inserts.
| Centre to Cutting Tip (f) | 8.5mm |
| Coolant Delivery | Internal |
| Insert Shape | 80\u00b0 Rhombic |
| Approach Angle | 95\u00b0 |
| Cutting Height (h1) | 8mm |
| Minimum Bore Diameter (D) | 18mm |
| Shank Height (h) | 14mm |
| Toolholder Style | SCLC |
| Shank Diameter (d) | 16mm |
| Centre To Cutting Tip | 8.5mm |
| Insert Cutting Edge Length | 9.7mm |
| Insert Holding Type | Screw-On |
| Minimum Bore Diameter | 18mm |
| Clearance Angle | 7\u00b0 |
| Shank Material | Carbide |
| ISO Designation | E16R SCLCR 09 |
| Insert Style | CC_T |
| Cutting Direction | Right Hand |
| Overall Length | 200mm |
| Overall Length (l1) | 200mm |
| Insert Size | 09T3 |
| Insert Inscribed Circle | 9.52mm |
| Set Type | Individual Boring Bar |
| Neck Length | 28mm |
