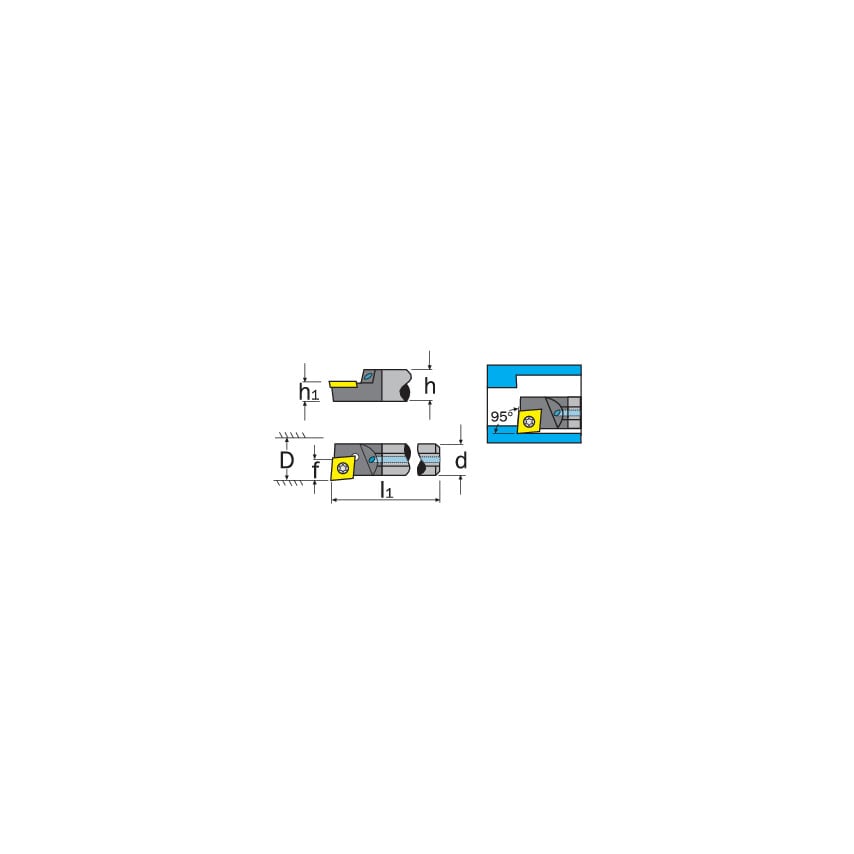

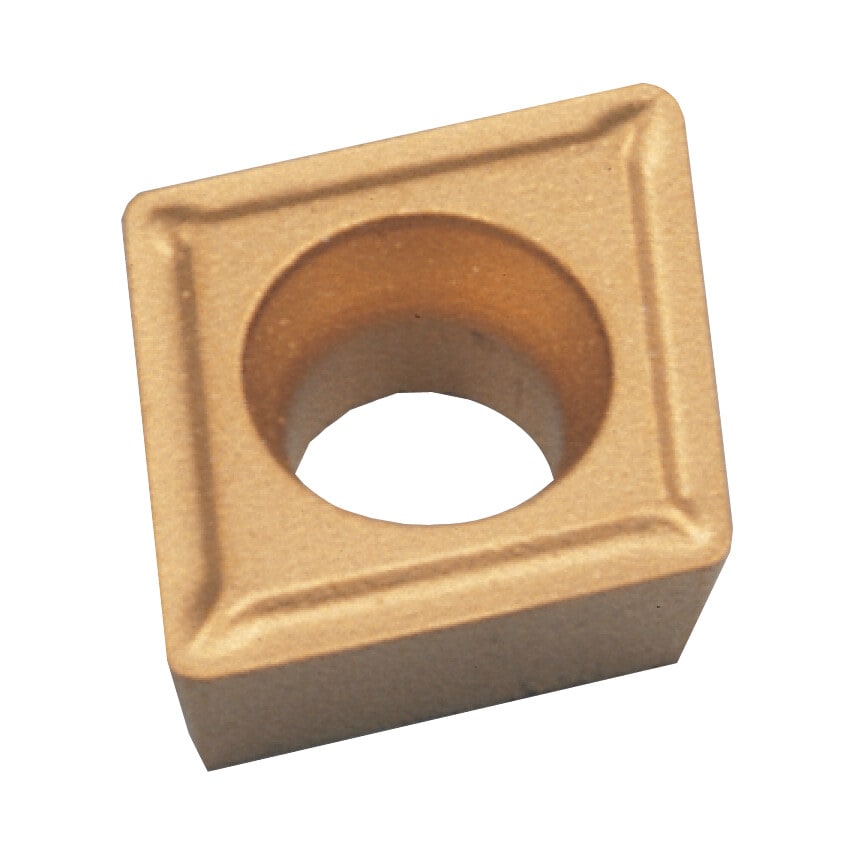

95 approach for 7 positive 80 rhombic inserts.
| Insert Size | 04T102 |
| Cutting Height (h1) | 3mm |
| Insert Style | CPGX |
| Approach Angle | 95\u00b0 |
| Insert Holding Type | Screw-On |
| Product Type | Boring Bar |
| Toolholder Style | CPGX |
| Minimum Bore Diameter (D) | 7mm |
| Set Type | Individual Boring Bar |
| Cutting Direction | Right Hand |
| Shank Height (h) | 5.5mm |
| Clearance Angle | 11\u00b0 |
| Insert Inscribed Circle | 4.76mm |
| Insert Shape | 80\u00b0 Rhombic |
| Coolant Delivery | Internal |
| Overall Length (l1) | 110mm |
| Shank Material | Carbide |
| ISO Designation | E06J SCLPR 04 |
| Shank Diameter (d) | 7mm |
| Insert Cutting Edge Length | 4.8mm |
| Centre To Cutting Tip | 3.5mm |
