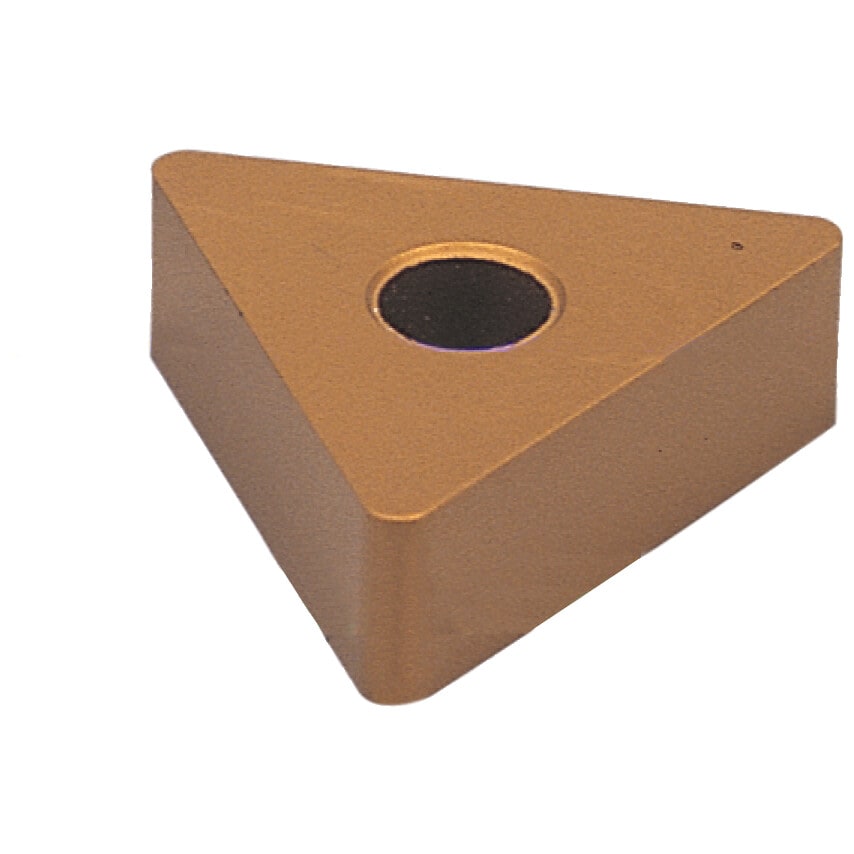

93 approach for 7 positive 80 triangular inserts.

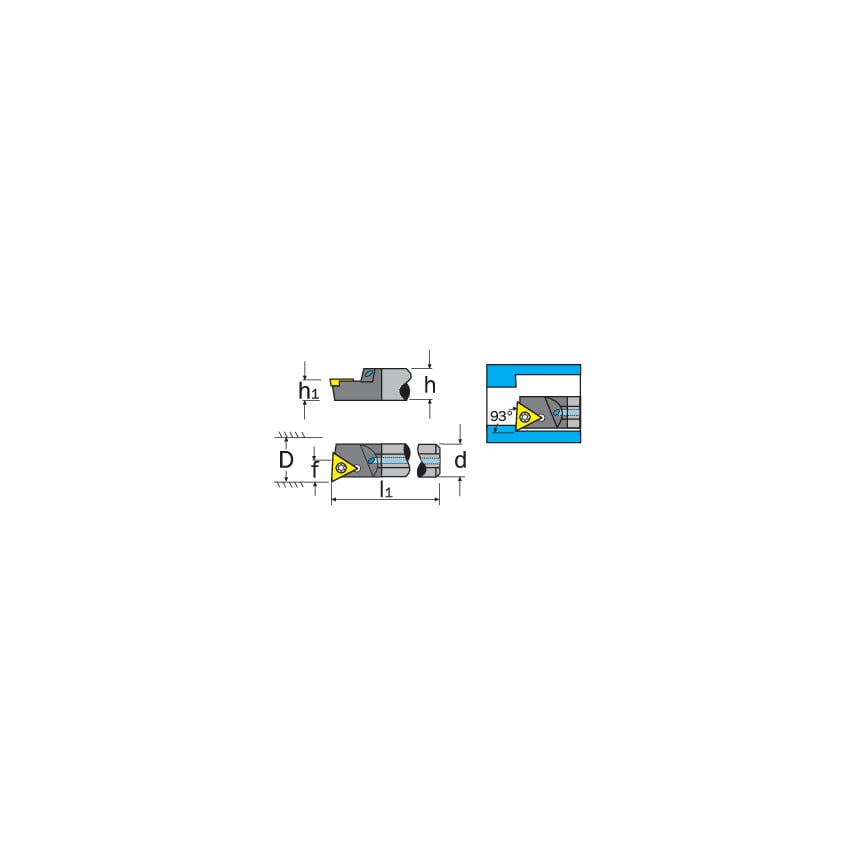

| Approach Angle | 93\u00b0 |
| Clearance Angle | 7\u00b0 |
| Shank Height (h) | 11mm |
| Minimum Bore Diameter (D) | 14mm |
| Insert Inscribed Circle | 6.35mm |
| Cutting Direction | Right Hand |
| Shank Diameter (d) | 12mm |
| ISO Designation | E12M STUCR 11 |
| Overall Length (l1) | 150mm |
| Insert Size | 1102 |
| Cutting Height (h1) | 5.5mm |
| Set Type | Individual Boring Bar |
| Toolholder Style | STUC |
| Insert Style | TC_T |
| Coolant Delivery | Internal |
| Insert Cutting Edge Length | 11mm |
| Centre To Cutting Tip | 6.5mm |
| Insert Shape | Triangle |
| Insert Holding Type | Screw-On |
| Shank Material | Carbide |
