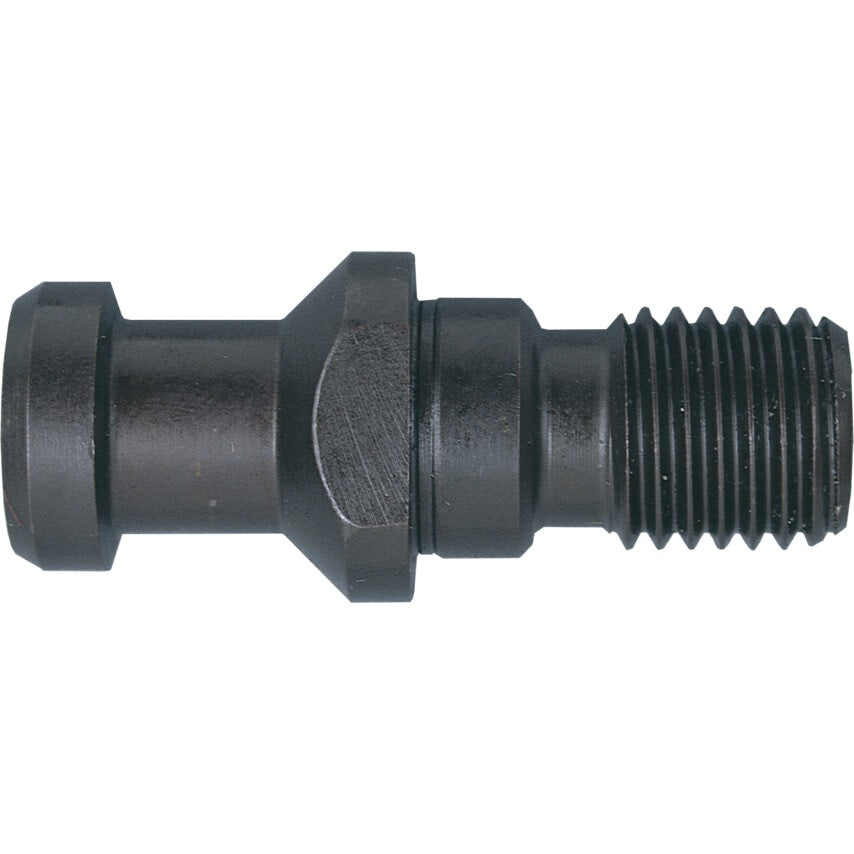

Pull Studs - Standard
(CH = Chamfered Shoulder)
DIN 69872

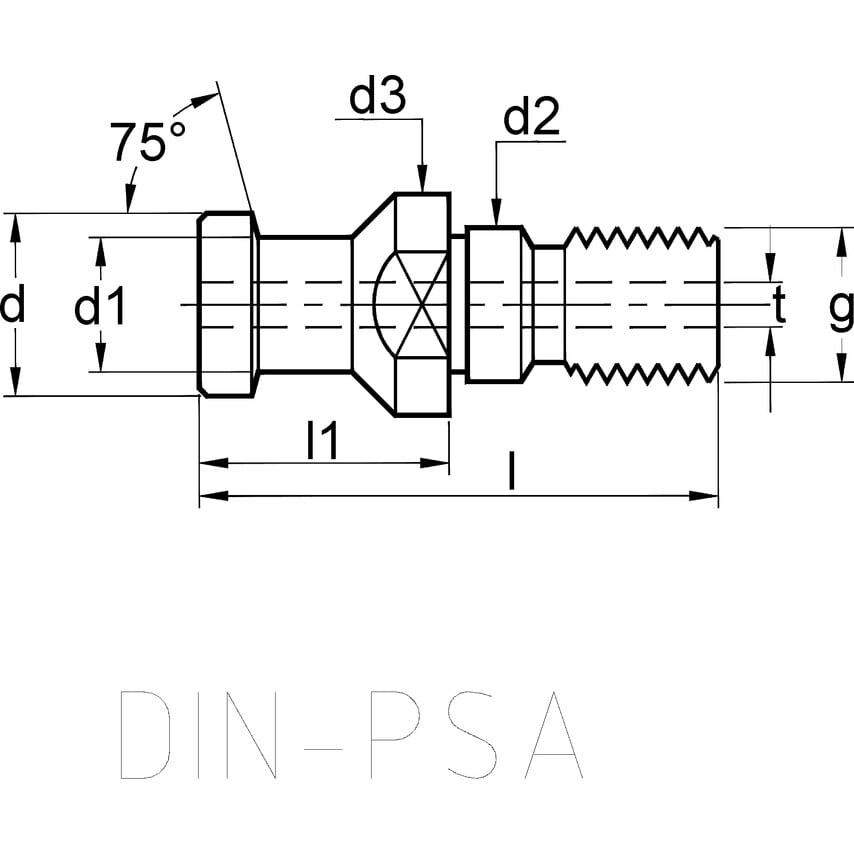

| D2 | 17mm |
| t | 7.5mm |
| Angle | 75\u00b0 |
| D1 | 14mm |
| Standards Met | DIN 69872 |
| MFR Part No. | DN40-CH-PSA |
| L | 54mm |
| l1 | 26mm |
| d3 | 23mm |
| D | 19mm |
| Spigot Size (g) | M16 |
