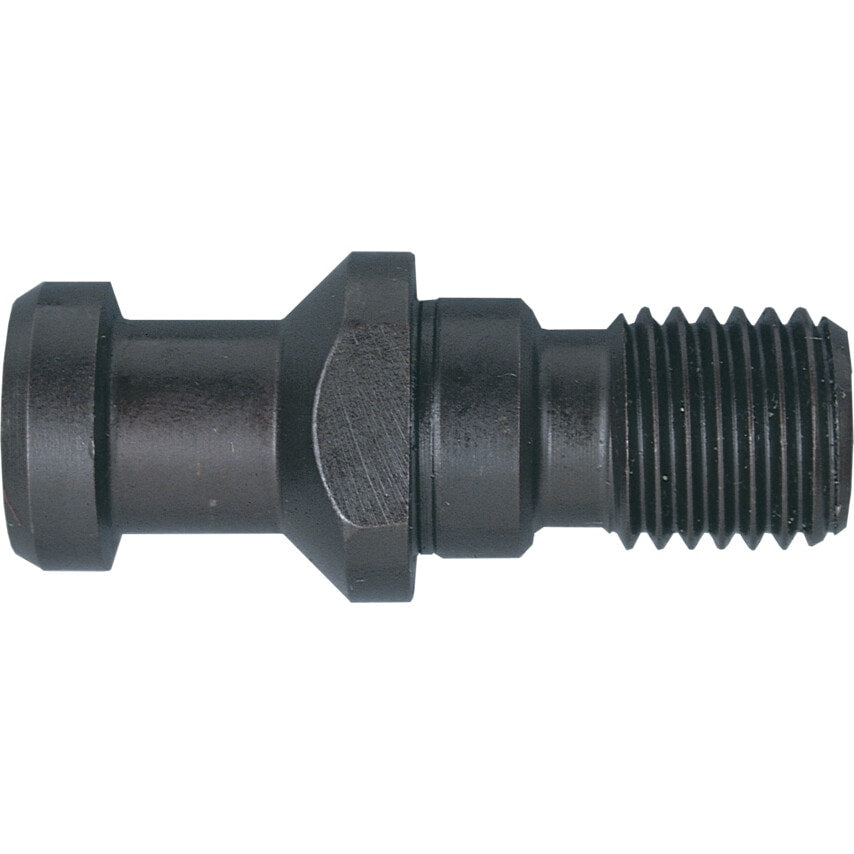

Pull Studs - Standard
(CH = Chamfered Shoulder)
DIN 69872

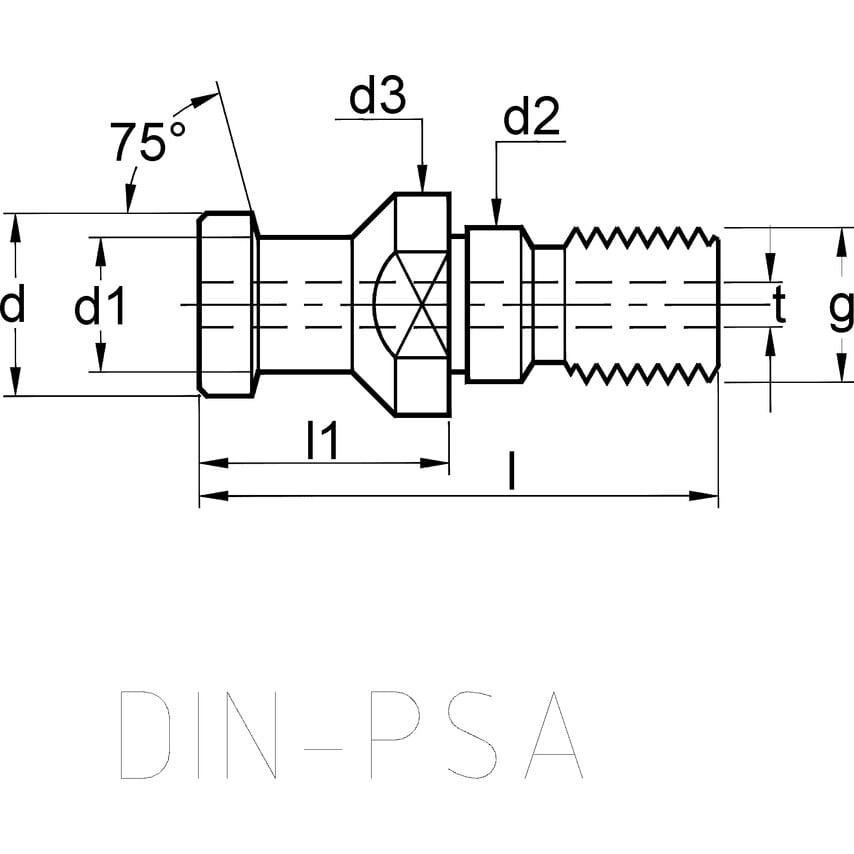

| D | 28mm |
| D2 | 25mm |
| L | 74mm |
| l1 | 34mm |
| t | 11.5mm |
| MFR Part No. | DN50-CH-PSA |
| d3 | 36mm |
| Spigot Size (g) | M24 |
| D1 | 21mm |
| Angle | 75\u00b0 |
| Standards Met | DIN 69872 |
