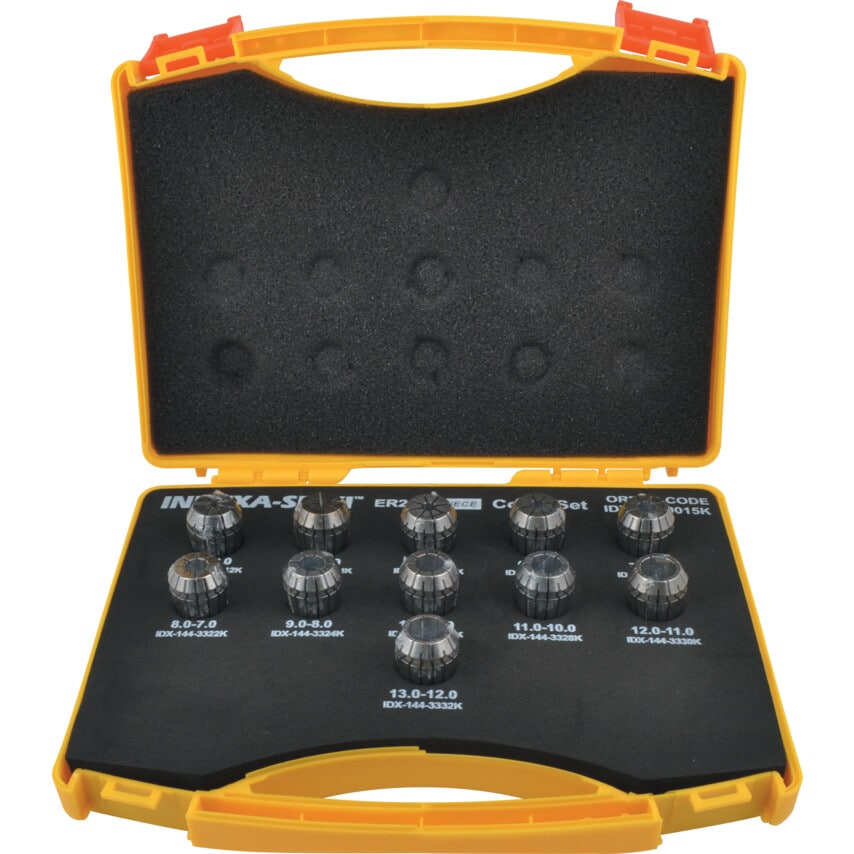

ER - Collet Sets
Indexa ER collets are the most versatile tool holding system for any operation that utilises a round shank cutting tool in a machining centre and is suitable for a wide range of applications.
Features & Benefits
Manufactured from hardened and tempered high alloy steel
All supplied in hard wearing bench cases
Conform to DIN 6499 standards
Well maintained ER system components result in increased tool life, higher feed rates, better work piece accuracy and enhanced work piece finish
Variety of sets available to suit application
Typical Applications
Drilling
Milling
Tapping
Reaming
Boring
Notes
Sets available:
ER11: Number of collets: 10 - Range 1.0 - 7.0mm
ER16: Number of collets: 9 - Range 1.0 - 10.0mm
ER20: Number of collets: 11 - Range 2.0 - 13.0mm
ER25: Number of collets: 15 - Range 1.0 - 16.0mm
ER32: Number of collets: 18 - Range 2.0 - 20.0mm
ER40: Number of collets: 23 - Range 3.0 - 26.0mm
| Collet Size | 2.0 - 13.0mm |
| Material | High Alloy Steel |
| Diameter | 21.0mm |
| Series | ER |
| Range Diameter | 2.00 -13.00mm |
| Product Type | Collet Set |
| Length | 31.5mm |
| Type | ER20 |
| System of Measurement | Metric |
| Number of Pieces | 11 |
