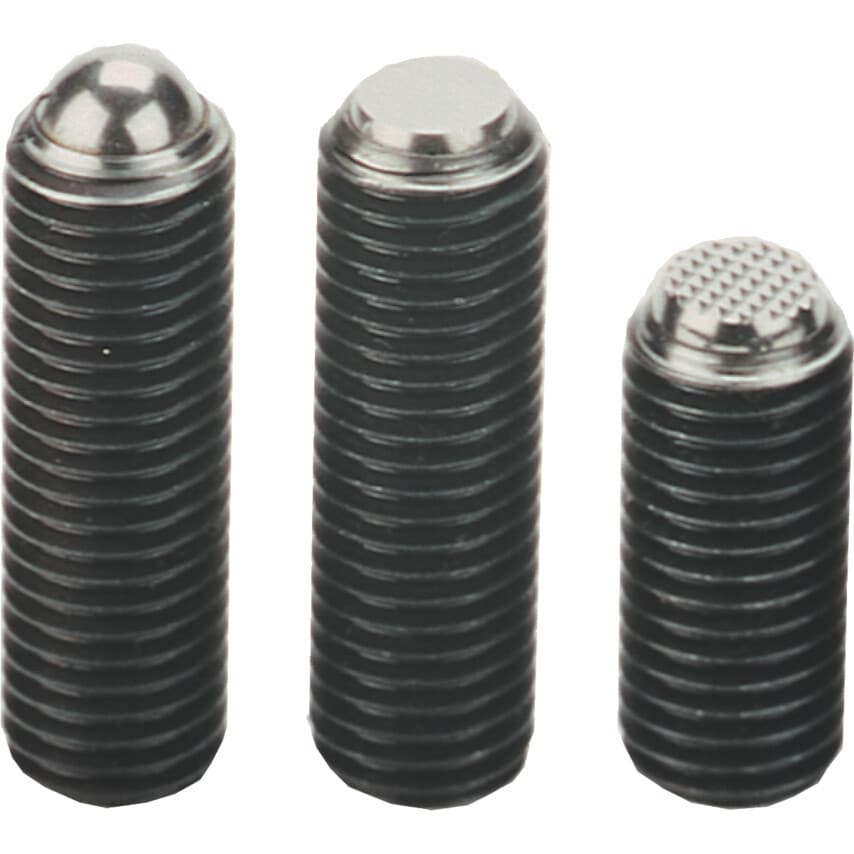

FC16 - Swivel Clamping Screw
Material:
Body - Medium Carbon Steel EN198.
Point - Through Hardened Steel EN 31.
Hardness:
Body - HRC 32 - 38.
Point - HRC 62.
Surface Finish: Point - Hardened and Ground.
| Surface Finish | Point - Hardened and Ground |
| Material | Carbon Steel |

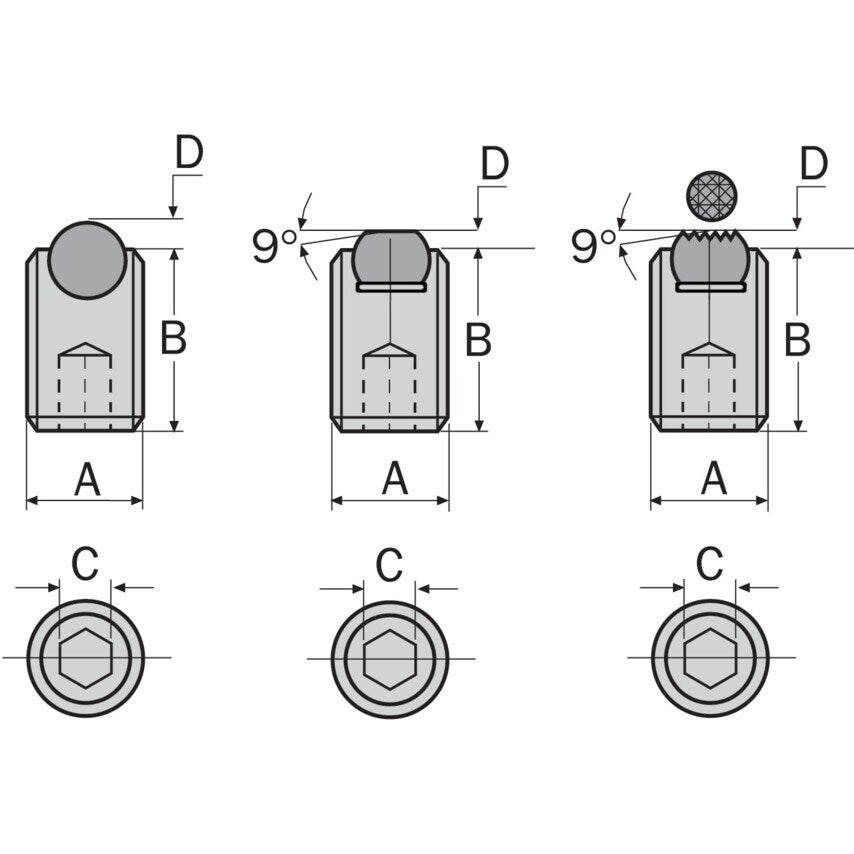

| B | 25mm |
| MFR Part No. | PT16B-1025N |
| C | 5mm |
| Standards Met | EN 31 | EN198 |
| Clamp Style | Dog Point |
| Product Type | Clamp Set Screw |
| Dimensions | M10x25mm |
| Type | Clamp Set Screw |
