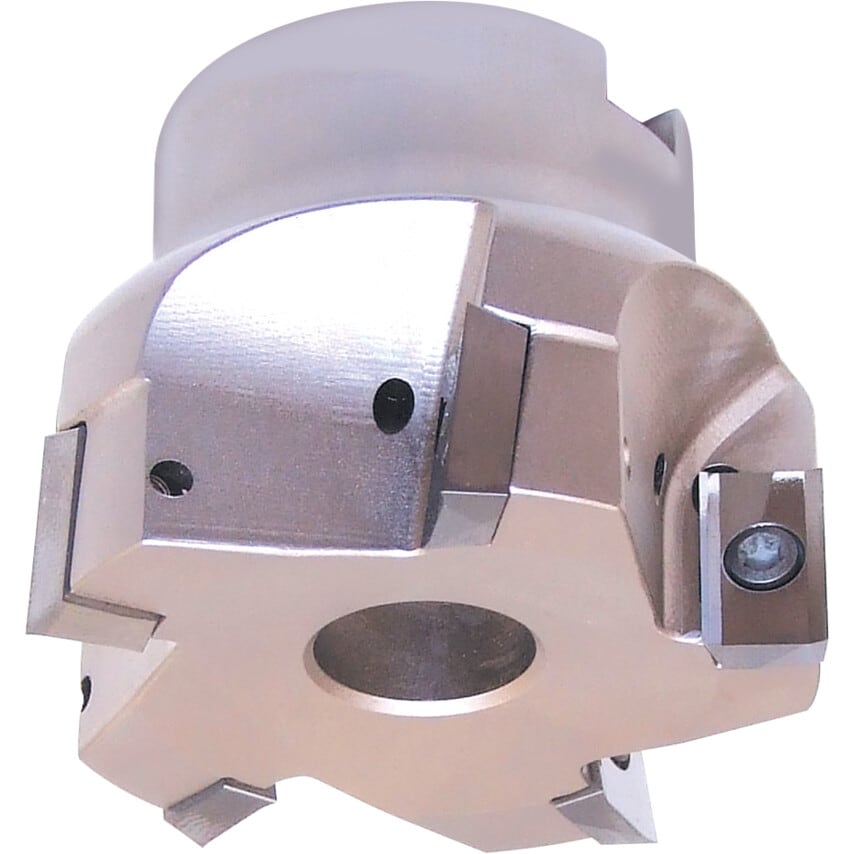

63MM XP-90C Shell Mill

XP-90C Shell Mills For APKT 16 Inserts Positive 90 approach milling cutter, using size 16 inserts allowing depth passes and high feed per teeth. Plasma Ion coating offers longer tool life and greater hardness that is more resistant to wear. Through coolant as standard. Feed Per Tooth (Fz) mm: 0.10 - 0.30.

Toolholder Material	Steel
Height	50mm
Milling Application	Shouldering
Product Type	Shell Mill
Depth of Cut	8mm
Insert Holding Type	Centre Screw Clamping
ISO Designation	XP-90C 63mm
Cutting Edge Angle	90\u00b0
Insert Size	1604
Coolant Delivery	Coolant Through
Arbor Hole Diameter	22mm
Insert Style	APKT | APXT
Toolholder Style	Shell Mill
Insert Shape	Parallelogram
MFR Part No.	920.063PIZ/C
Number of Inserts	5
Maximum Cutting Diameter	63mm
