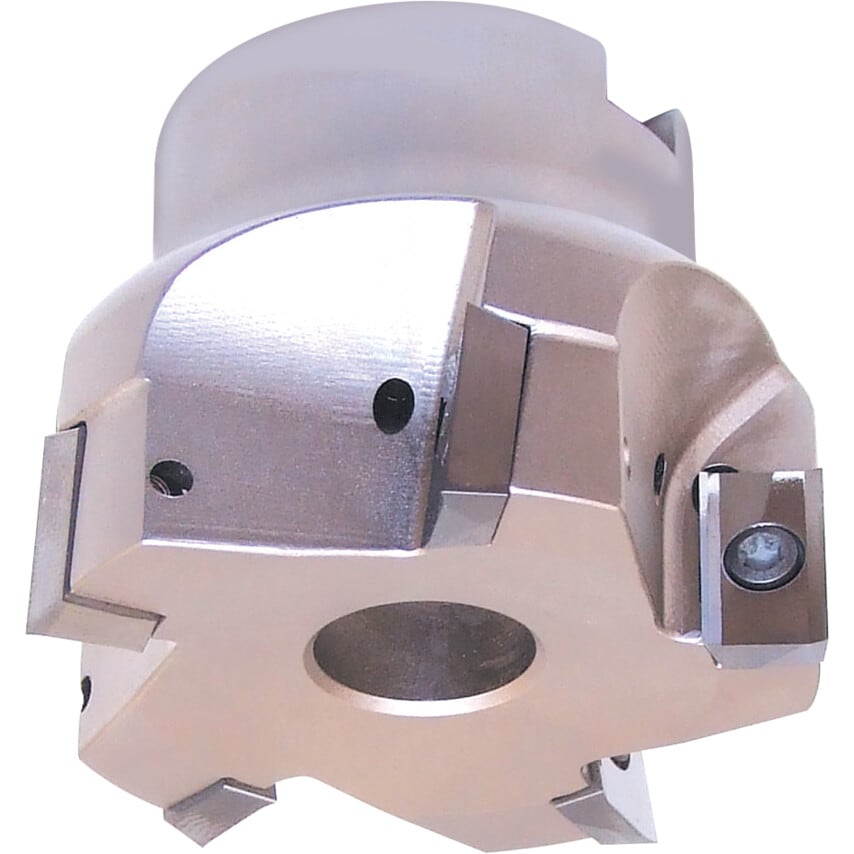

80MM XP-90C Shell Mill

XP-90C Shell Mills For APKT 16 Inserts Positive 90 approach milling cutter, using size 16 inserts allowing depth passes and high feed per teeth. Plasma Ion coating offers longer tool life and greater hardness that is more resistant to wear. Through coolant as standard. Feed Per Tooth (Fz) mm: 0.10 - 0.30.

Toolholder Style	Shell Mill
Depth of Cut	8mm
Maximum Cutting Diameter	80mm
Toolholder Material	Steel
Number of Inserts	6
Cutting Edge Angle	90\u00b0
Height	50mm
Coolant Delivery	Coolant Through
Insert Size	1604
Arbor Hole Diameter	27mm
Insert Holding Type	Centre Screw Clamping
ISO Designation	XP-90C 80mm
MFR Part No.	920.080PIZ/C
Insert Style	APKT | APXT
Product Type	Shell Mill
Insert Shape	Parallelogram
Milling Application	Shouldering
