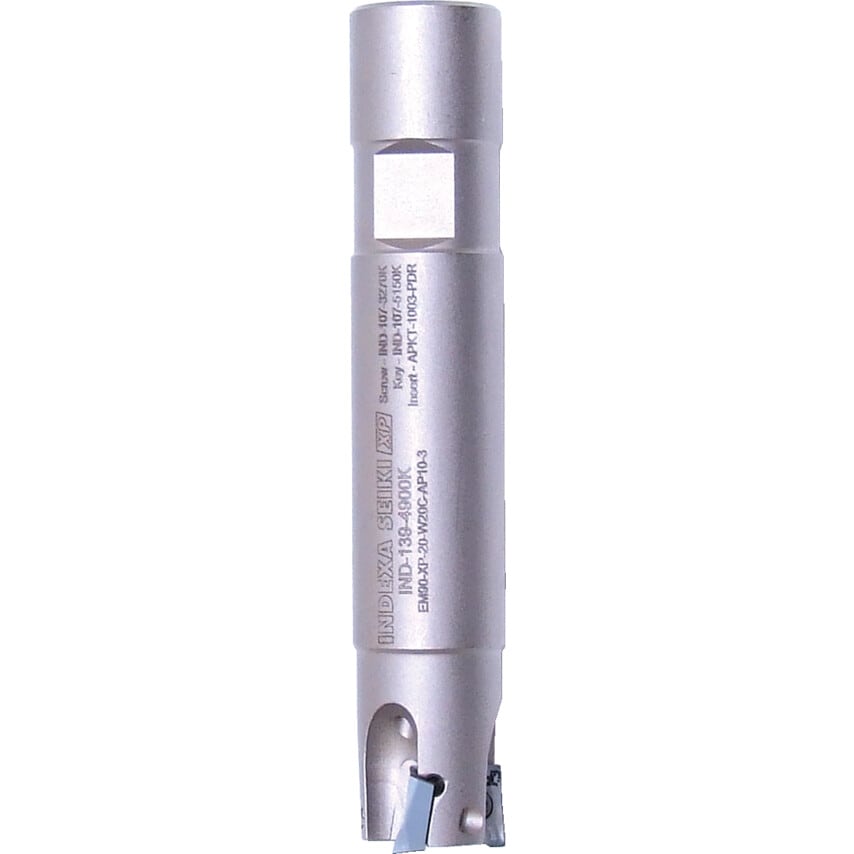

10MM XP-90C Weldon End Mill

XP-90C End Mills For AP_T 10 Inserts Positive 90 approach milling cutter, using size 10/16 inserts allowing depth passes and high feed per teeth. Plasma Ion coating offers longer tool life and greater hardness that is more resistant to wear. Through coolant as standard. Insert Size: APXT 10. Feed Per Tooth (Fz) mm: 0.05 - 0.20.

Insert Shape	Parallelogram
MFR Part No.	924.01PIZ/C
Coolant Delivery	Coolant Through
Maximum Cutting Diameter	10mm
Depth of Cut	5mm
Product Type	Weldon End Mill
ISO Designation	XP-90C 10mm
Toolholder Style	End Mill
Number of Inserts	1
Toolholder Material	Steel
Milling Application	Facing | Profiling
Cutting Edge Angle	90\u00b0
Insert Style	APKT | APXT
Insert Holding Type	Screw-On
Arbor Hole Diameter	10mm
Height	80mm
Insert Size	1003
