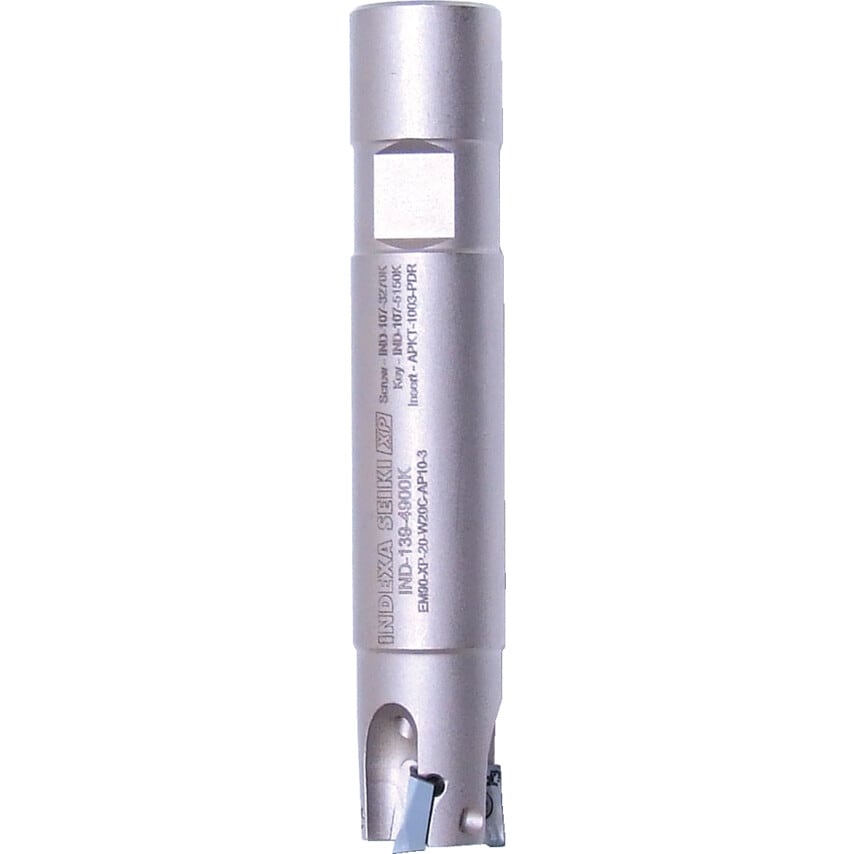

16MM XP-90C Weldon End Mill

XP-90C End Mills For AP_T 10 Inserts Positive 90 approach milling cutter, using size 10/16 inserts allowing depth passes and high feed per teeth. Plasma Ion coating offers longer tool life and greater hardness that is more resistant to wear. Through coolant as standard. Insert Size: APXT 10. Feed Per Tooth (Fz) mm: 0.05 - 0.20.

Toolholder Material	Steel
Coolant Delivery	Coolant Through
Cutting Edge Angle	90\u00b0
Toolholder Style	End Mill
Arbor Hole Diameter	16mm
Insert Shape	Parallelogram
Insert Style	APKT | APXT
Maximum Cutting Diameter	16mm
Insert Holding Type	Screw-On
Number of Inserts	2
Milling Application	Facing | Profiling
Height	90mm
Depth of Cut	5mm
MFR Part No.	924.016PIZ/C
Insert Size	1003
ISO Designation	XP-90C 16mm
Product Type	Weldon End Mill
