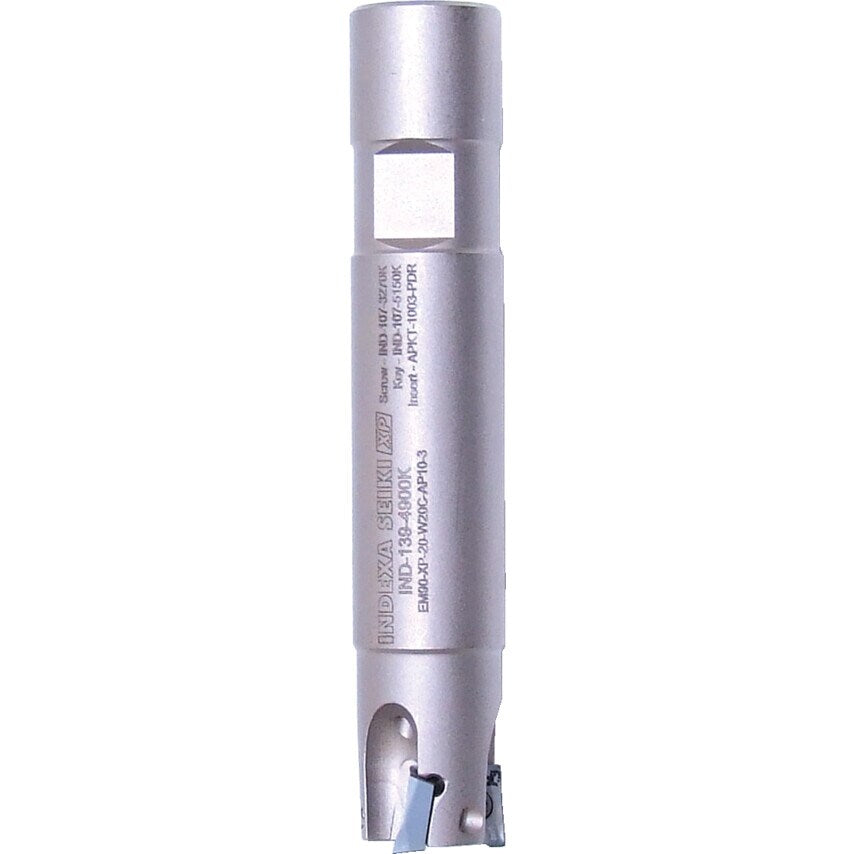

12MM XP-90C Weldon End Mill

XP-90C End Mills For AP_T 10 Inserts Positive 90 approach milling cutter, using size 10/16 inserts allowing depth passes and high feed per teeth. Plasma Ion coating offers longer tool life and greater hardness that is more resistant to wear. Through coolant as standard. Insert Size: APXT 10. Feed Per Tooth (Fz) mm: 0.05 - 0.20.

ISO Designation	XP-90C 12mm
Cutting Edge Angle	90\u00b0
Insert Size	1003
Insert Style	APKT | APXT
Number of Inserts	1
Arbor Hole Diameter	12mm
Milling Application	Facing | Profiling
Product Type	Weldon End Mill
Coolant Delivery	Coolant Through
Maximum Cutting Diameter	12mm
Insert Holding Type	Screw-On
Depth of Cut	5mm
Height	80mm
MFR Part No.	924.012PIZ/C
Insert Shape	Parallelogram
Toolholder Material	Steel
Toolholder Style	End Mill
