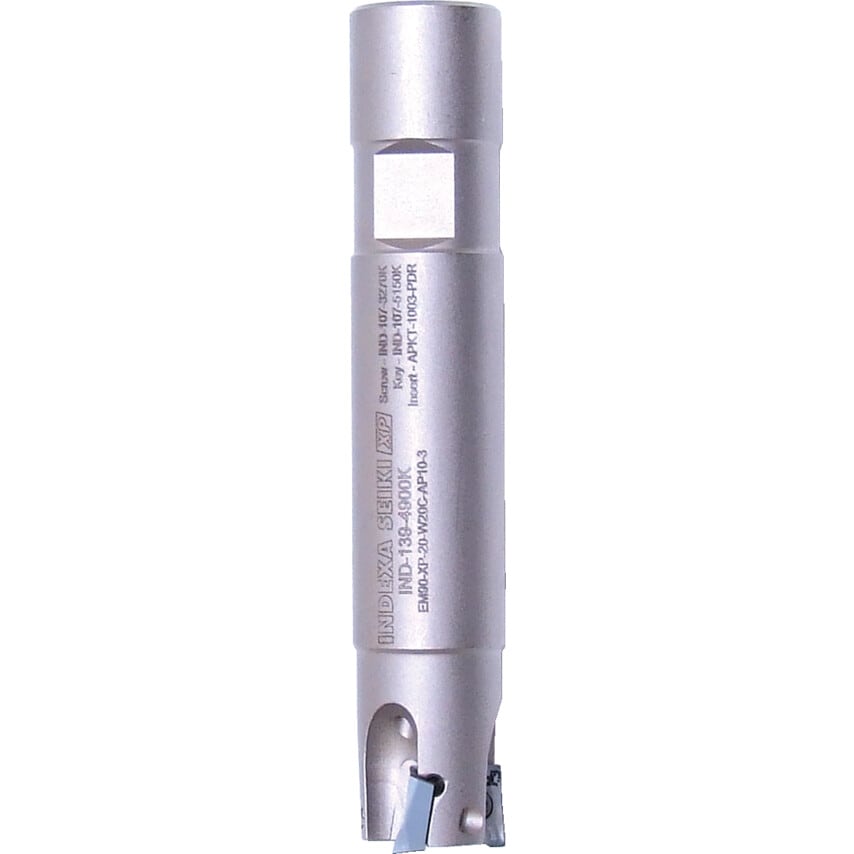

20MM XP-90C Weldon End Mill

XP-90C End Mills For AP_T 10 Inserts Positive 90 approach milling cutter, using size 10/16 inserts allowing depth passes and high feed per teeth. Plasma Ion coating offers longer tool life and greater hardness that is more resistant to wear. Through coolant as standard. Insert Size: APXT 10. Feed Per Tooth (Fz) mm: 0.05 - 0.20.

Milling Application	Facing | Profiling
Height	110mm
Insert Holding Type	Screw-On
Arbor Hole Diameter	20mm
Maximum Cutting Diameter	20mm
ISO Designation	XP-90C 20mm
Number of Inserts	3
Insert Shape	Parallelogram
Product Type	Weldon End Mill
Depth of Cut	5mm
Insert Size	1003
Insert Style	APKT | APXT
Cutting Edge Angle	90\u00b0
Coolant Delivery	Coolant Through
MFR Part No.	924.020PIZ/C
Toolholder Material	Steel
Toolholder Style	End Mill
