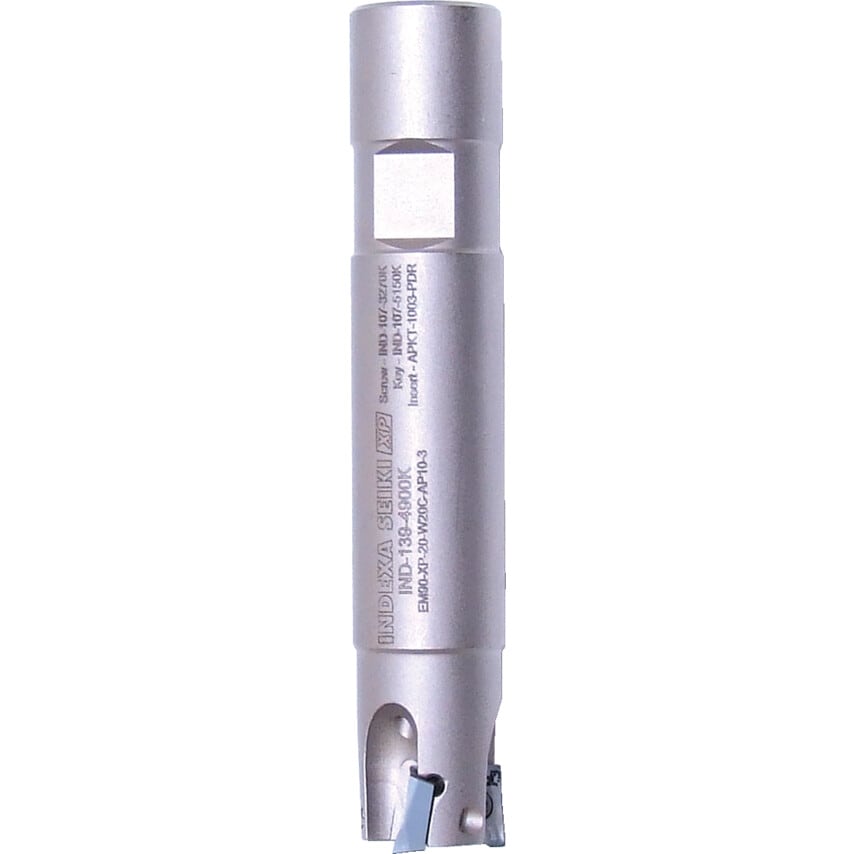

40MM XP-90C Weldon End Mill (16)

XP-90C End Mills For AP_T 10 Inserts Positive 90 approach milling cutter, using size 10/16 inserts allowing depth passes and high feed per teeth. Plasma Ion coating offers longer tool life and greater hardness that is more resistant to wear. Through coolant as standard. Insert Size: APXT 10. Feed Per Tooth (Fz) mm: 0.05 - 0.20.

Insert Style	APKT
Coolant Delivery	Coolant Through
Insert Shape	85\u00b0 Parallelogram
Toolholder Style	End Mill
Height	136mm
Product Type	Weldon End Mill
Insert Size	1604
MFR Part No.	921.040PIZ/C
Number of Inserts	4
ISO Designation	XP-90C 40mm
Milling Application	Facing | Profiling | Slotting
Toolholder Material	Plasma-ion coating
Insert Holding Type	Clamp Screw
Arbor Hole Diameter	32mm
Cutting Edge Angle	90\u00b0
Maximum Cutting Diameter	40mm
