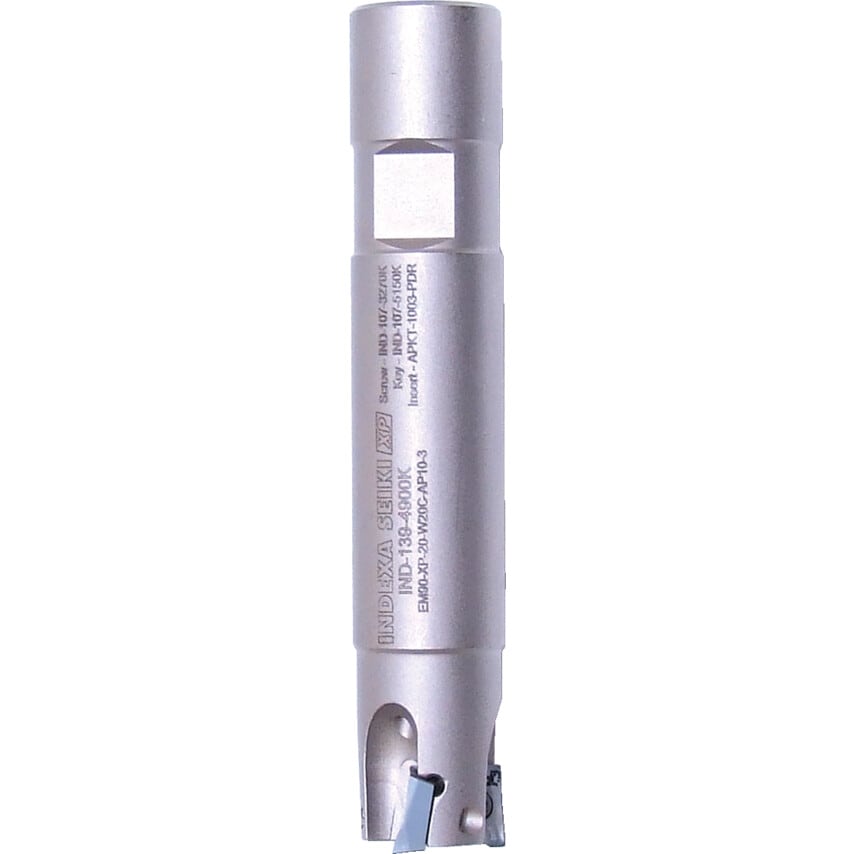

20MM XP-90C Weldon End Mill (16)

XP-90C End Mills For AP_T 10 Inserts Positive 90 approach milling cutter, using size 10/16 inserts allowing depth passes and high feed per teeth. Plasma Ion coating offers longer tool life and greater hardness that is more resistant to wear. Through coolant as standard. Insert Size: APXT 10. Feed Per Tooth (Fz) mm: 0.05 - 0.20.

Insert Shape	85\u00b0 Parallelogram
Height	115mm
Toolholder Style	End Mill
ISO Designation	XP-90C 20mm
Product Type	Weldon End Mill
Insert Size	1604
Milling Application	Profiling | Slotting
Cutting Edge Angle	90\u00b0
Number of Inserts	1
Coolant Delivery	Coolant Through
MFR Part No.	921.02PIZ/C
Insert Style	APKT
Arbor Hole Diameter	20mm
Maximum Cutting Diameter	20mm
