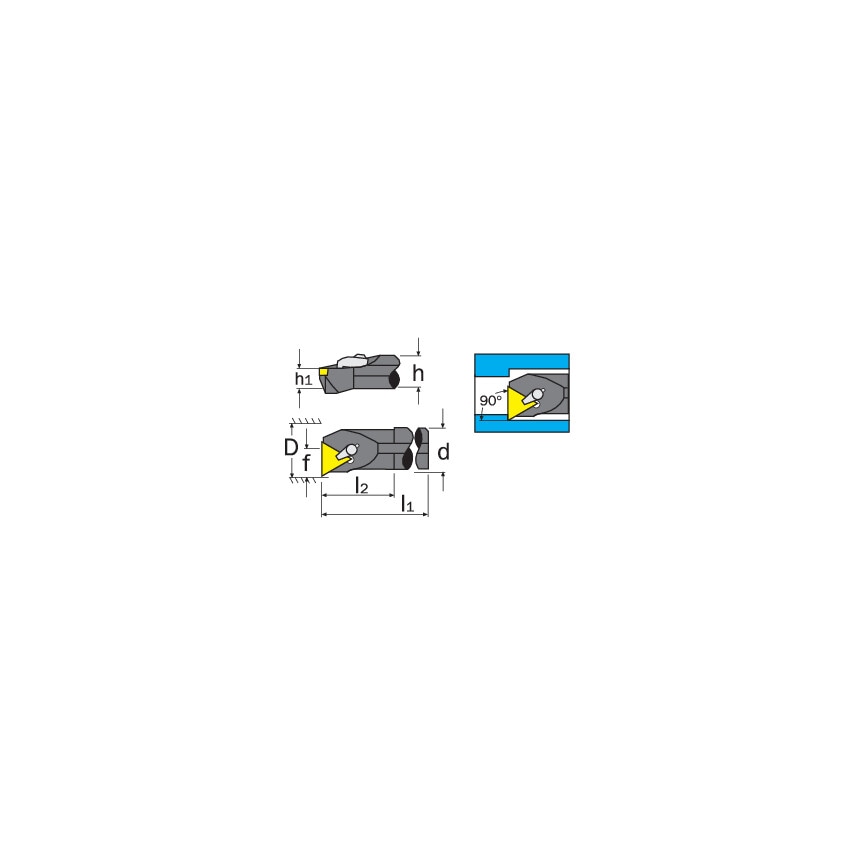

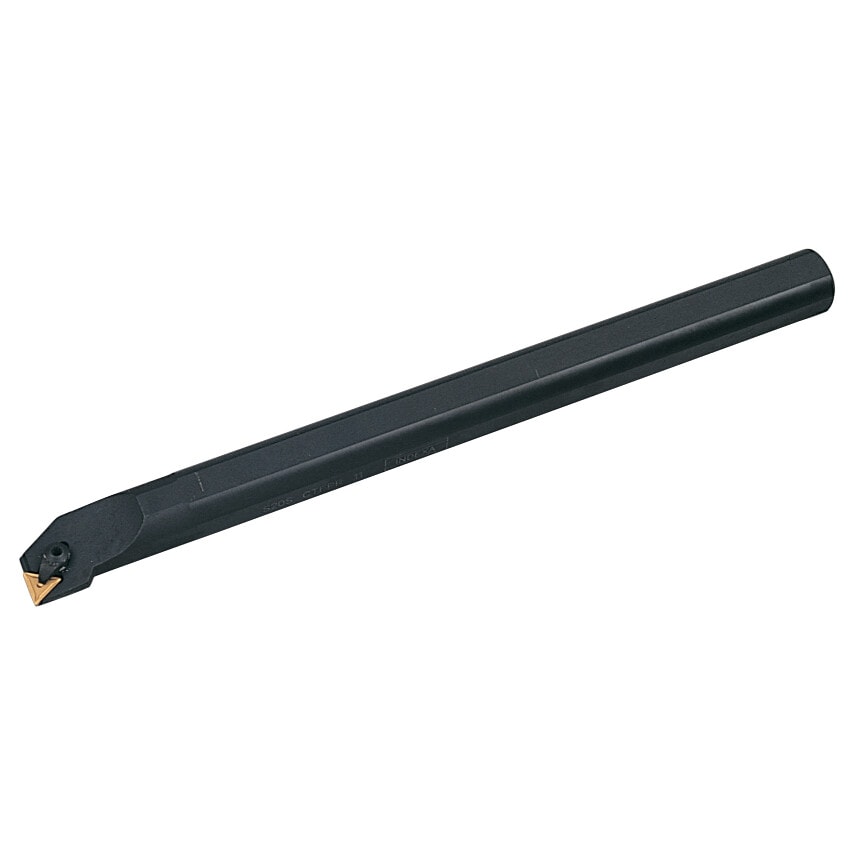

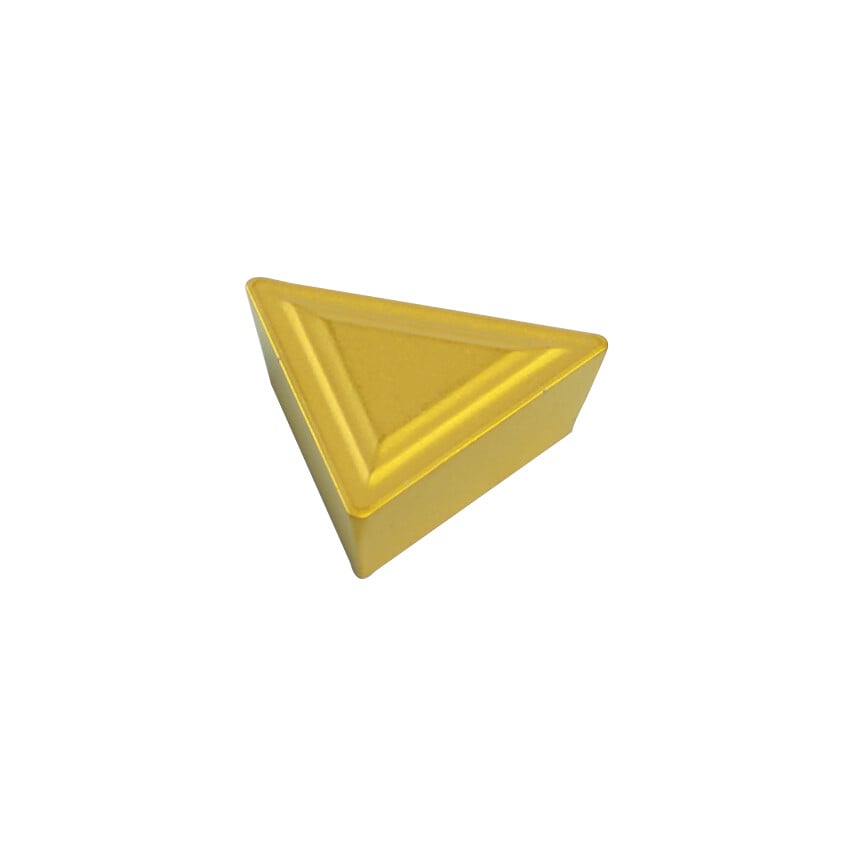

90 approach for 11 positive triangular inserts.
| Cutting Height (h1) | 5.5mm |
| Set Type | Individual Boring Bar |
| Insert Inscribed Circle | 6.35mm |
| Shank Material | Steel |
| Insert Holding Type | Top Clamp |
| Neck Length (l2) | 25mm |
| Insert Shape | Triangle |
| MFR Part No. | S12M-CTFPR11 |
| Approach Angle | 90\u00b0 |
| ISO Designation | CTFPR 11 |
| Overall Length (l1) | 150mm |
| Minimum Bore Diameter (D) | 16mm |
| Shank Height (h) | 11mm |
| Shank Diameter (d) | 12mm |
| Insert Size | 1103 |
| Insert Cutting Edge Length | 11mm |
| Insert Style | TP_N | TP_R |
| Centre To Cutting Tip | 9mm |
| Coolant Delivery | External |
| Cutting Direction | Right Hand |
| Toolholder Style | CTFP |
| Clearance Angle | 11\u00b0 |
