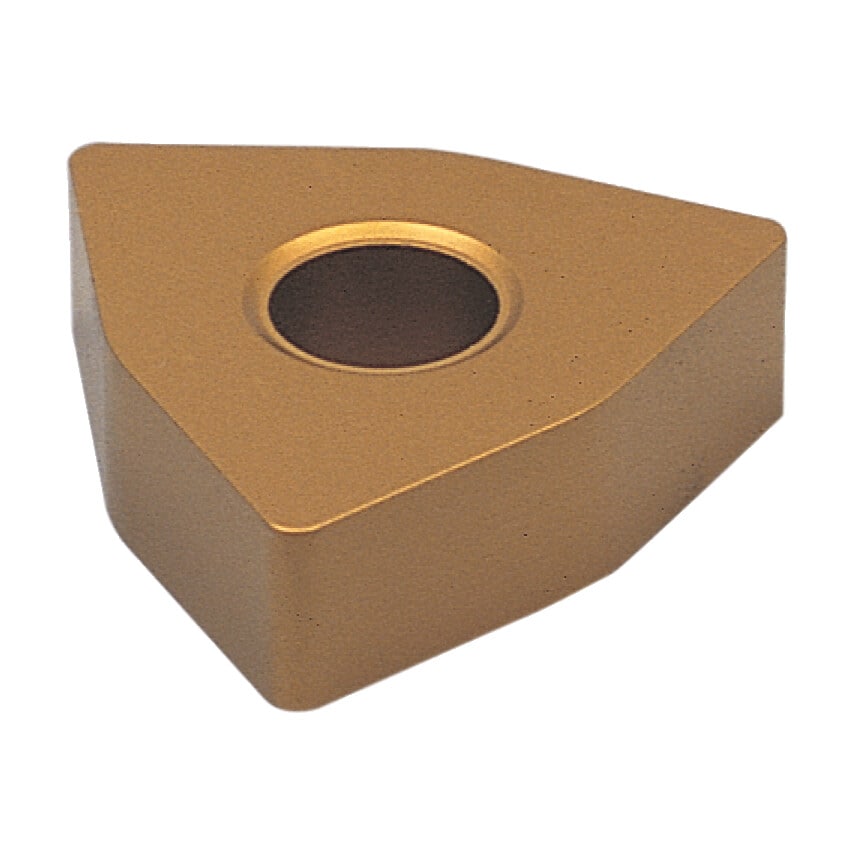

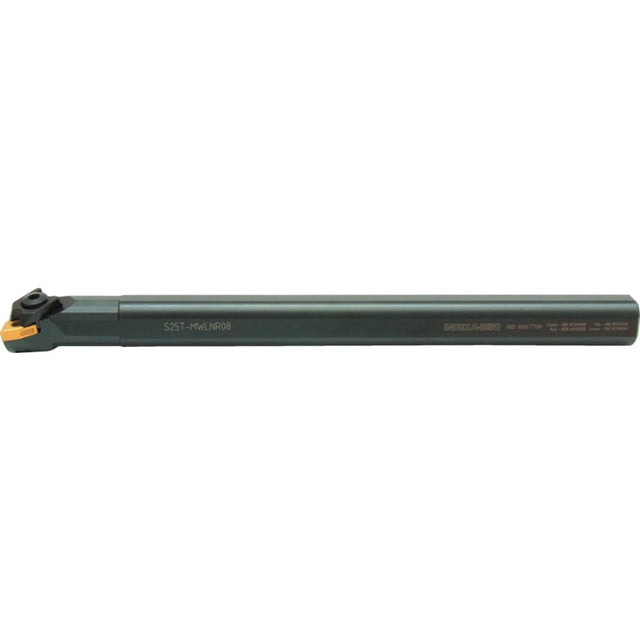

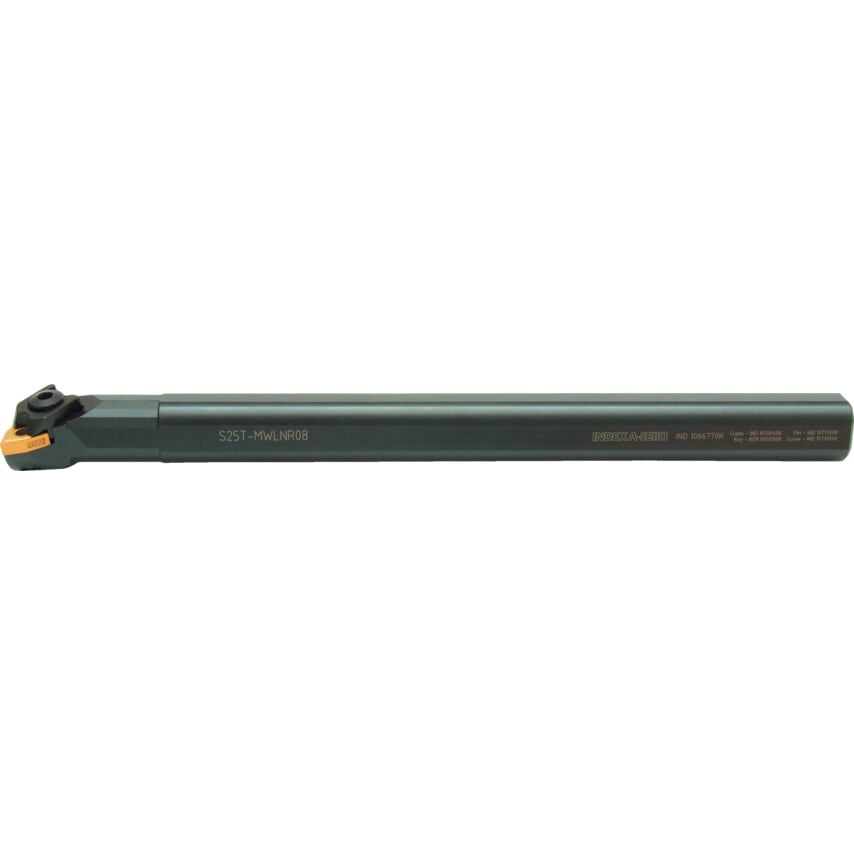

95 approach for 80 negative trigon inserts.

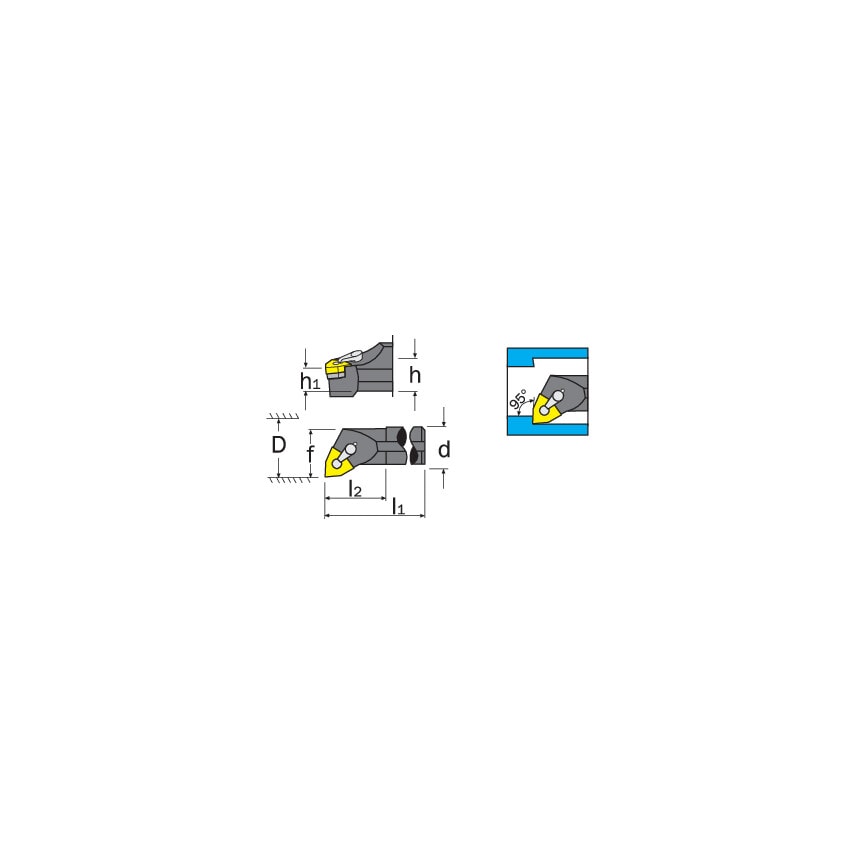

| Approach Angle | 95\u00b0 |
| Cutting Height (h1) | 18.5mm |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (D) | 48mm |
| MFR Part No. | S40V-MWLNR08 |
| Clearance Angle | 0\u00b0 |
| Insert Size | 0804 |
| Shank Material | Steel |
| Insert Inscribed Circle | 12.7mm |
| Insert Holding Type | Top Clamp & Pin Lock |
| Neck Length (l2) | 60mm |
| Shank Diameter (d) | 40mm |
| Insert Cutting Edge Length | 8.7mm |
| Coolant Delivery | External |
| Shank Height (h) | 37mm |
| ISO Designation | S40V MWLNR 08 |
| Toolholder Style | MWLN |
| Centre To Cutting Tip | 27mm |
| Insert Style | WN_A | WN_G |
| Insert Shape | Trigon |
| Overall Length (l1) | 400mm |
| Set Type | Individual Boring Bar |
