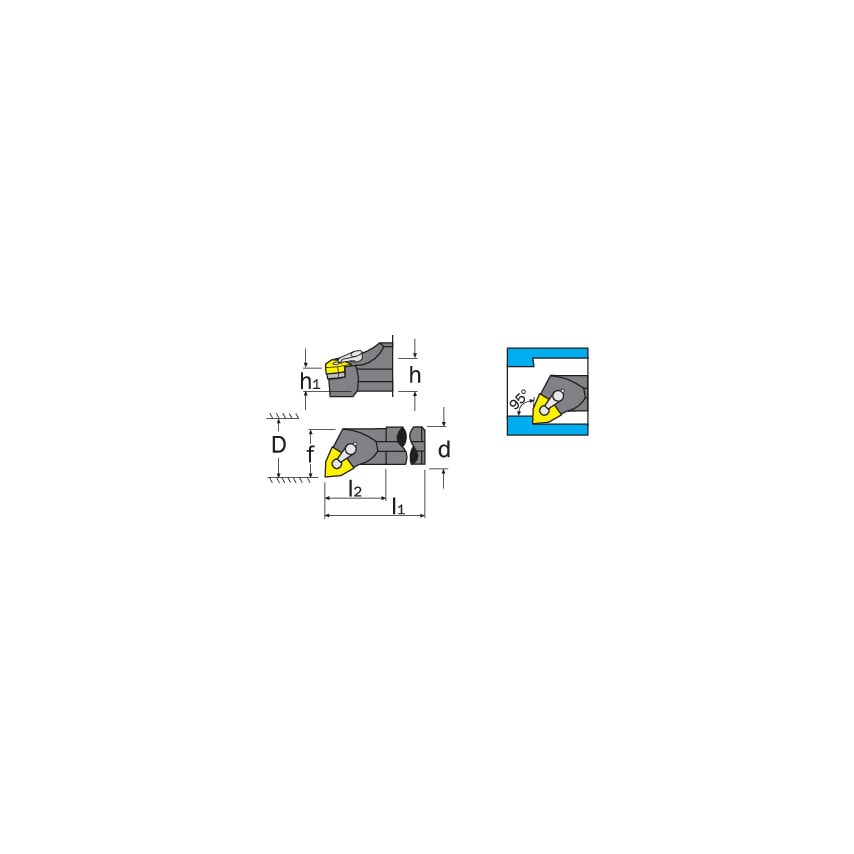

95 approach for 80 negative trigon inserts.
| Insert Holding Type | Top Clamp & Pin Lock |
| Overall Length (l1) | 350mm |
| Shank Diameter (d) | 32mm |
| Centre To Cutting Tip | 22mm |
| Insert Shape | Trigon |
| Toolholder Style | MWLN |
| Minimum Bore Diameter (D) | 48mm |
| Set Type | Individual Boring Bar |
| ISO Designation | S32U MWLNL 08 |
| Clearance Angle | 0\u00b0 |
| Shank Material | Steel |
| Insert Style | WN_A | WN_G |
| Approach Angle | 95\u00b0 |
| Shank Height (h) | 30mm |
| Insert Size | 0804 |
| Cutting Direction | Left Hand |
| Neck Length (l2) | 50mm |
| Insert Cutting Edge Length | 8.7mm |
| Insert Inscribed Circle | 12.7mm |
| Cutting Height (h1) | 15mm |
| Coolant Delivery | External |
