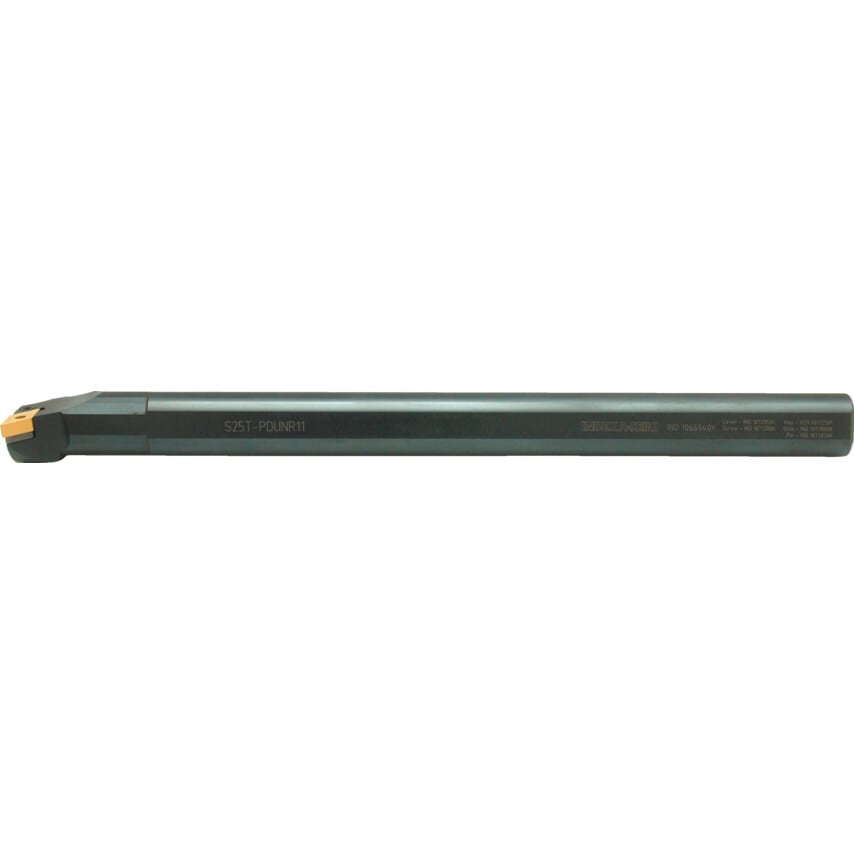

93 approach for 55 negative rhombic inserts.
| Insert Shape | 55\u00b0 Rhombic |
| Coolant Delivery | External |

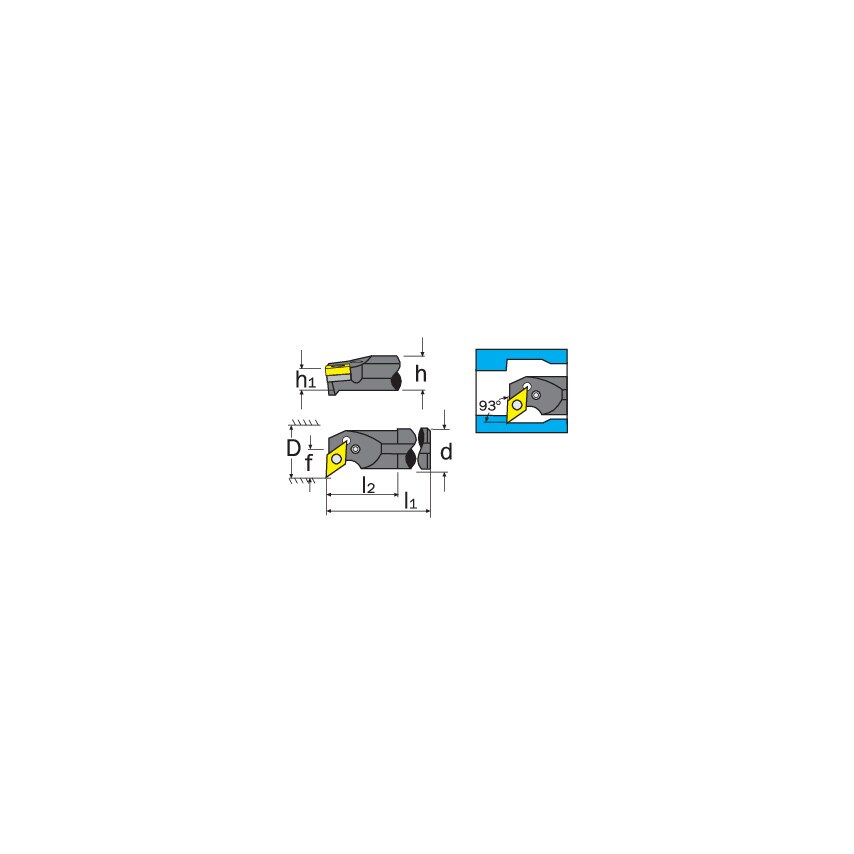

| Overall Length (l1) | 400mm |
| Neck Length (l2) | 60mm |
| Shank Material | Steel |
| Set Type | Individual Boring Bar |
| Centre To Cutting Tip | 27mm |
| Insert Inscribed Circle | 12.7mm |
| Clearance Angle | 0\u00b0 |
| Cutting Direction | Right Hand |
| Shank Height (h) | 37mm |
| Insert Size | 1506 |
| Cutting Height (h1) | 18.5mm |
| MFR Part No. | S40V-PDUNR15 |
| Minimum Bore Diameter (D) | 48mm |
| Insert Cutting Edge Length | 15mm |
| Insert Holding Type | Lever Lock |
| Insert Style | DN_A | DN_G |
| Toolholder Style | PDUN |
| Shank Diameter (d) | 40mm |
| ISO Designation | S40V PDUNR 15 |
| Approach Angle | 93\u00b0 |
