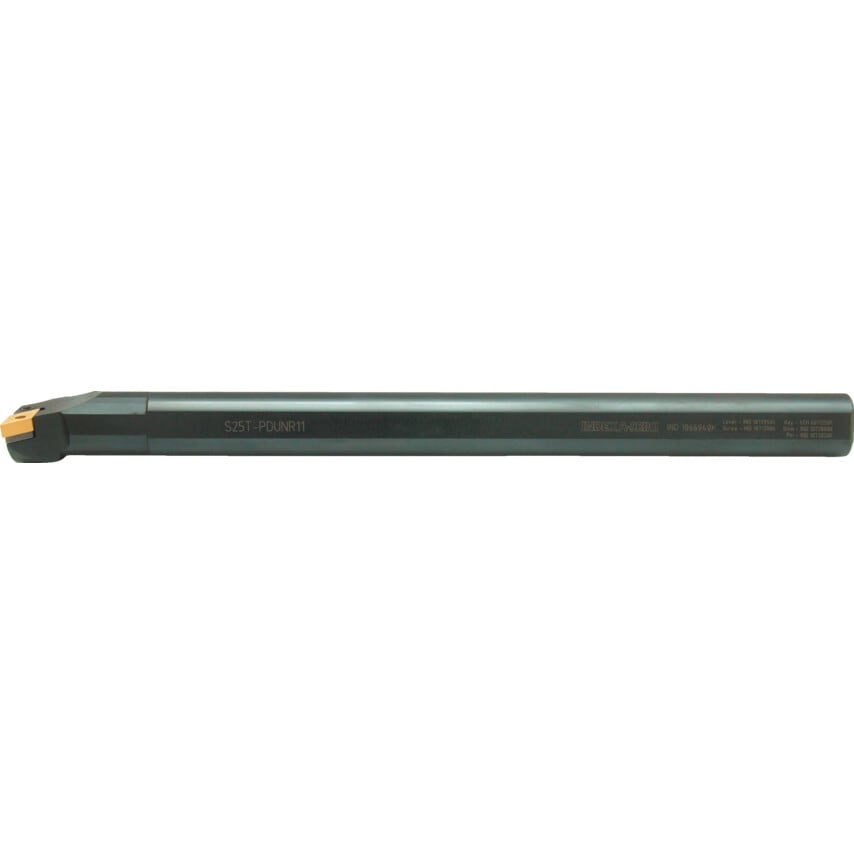

93 approach for 55 negative rhombic inserts.
| Cutting Direction | Right Hand |
| Insert Holding Type | Lever Lock |
| Centre To Cutting Tip | 22mm |
| Insert Size | 1104 |
| Shank Material | Steel |
| Clearance Angle | 0\u00b0 |
| Insert Style | DN_A | DN_G |
| ISO Designation | S25T PDUNR 11 |
| MFR Part No. | S25T-PDUNR11 |
| Coolant Delivery | External |

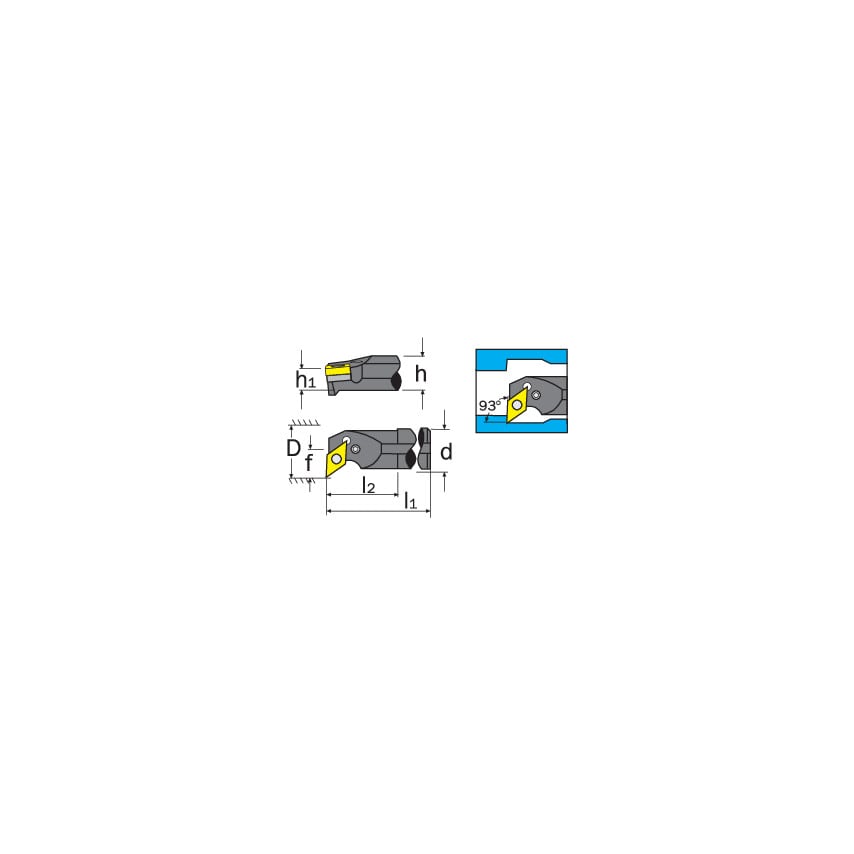

| Overall Length (l1) | 300mm |
| Minimum Bore Diameter (D) | 30mm |
| Neck Length (l2) | 50mm |
| Cutting Height (h1) | 15mm |
| Insert Inscribed Circle | 9.52mm |
| Shank Height (h) | 25mm |
| Set Type | Individual Boring Bar |
| Toolholder Style | PDUN |
| Insert Cutting Edge Length | 11.6mm |

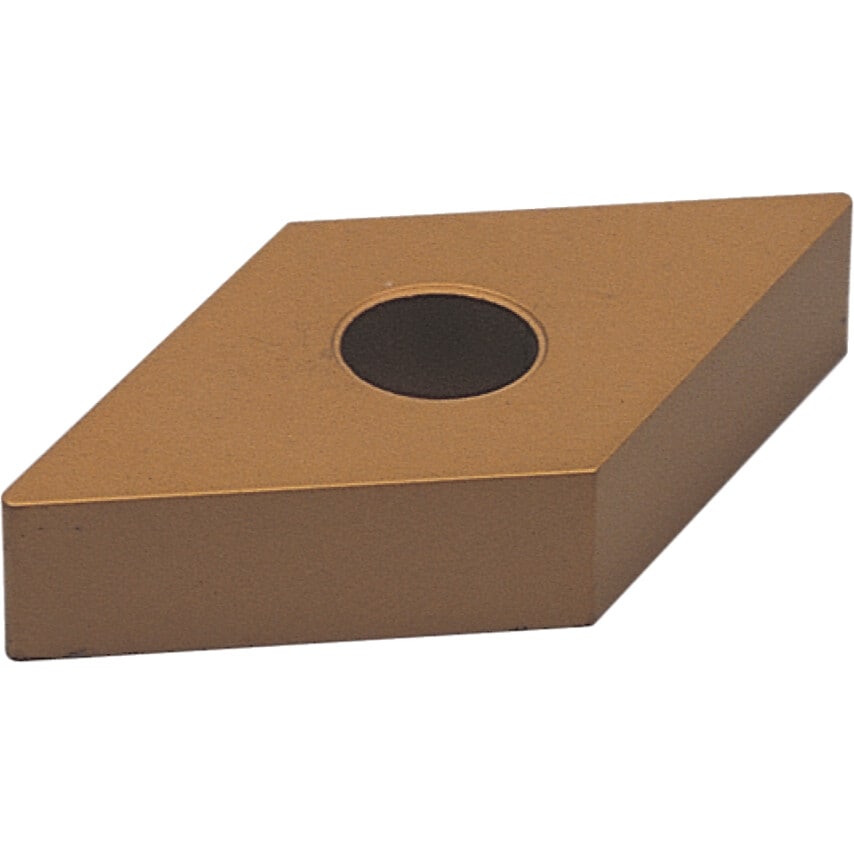

| Insert Shape | 55\u00b0 Rhombic |
| Approach Angle | 93\u00b0 |
| Shank Diameter (d) | 25mm |
