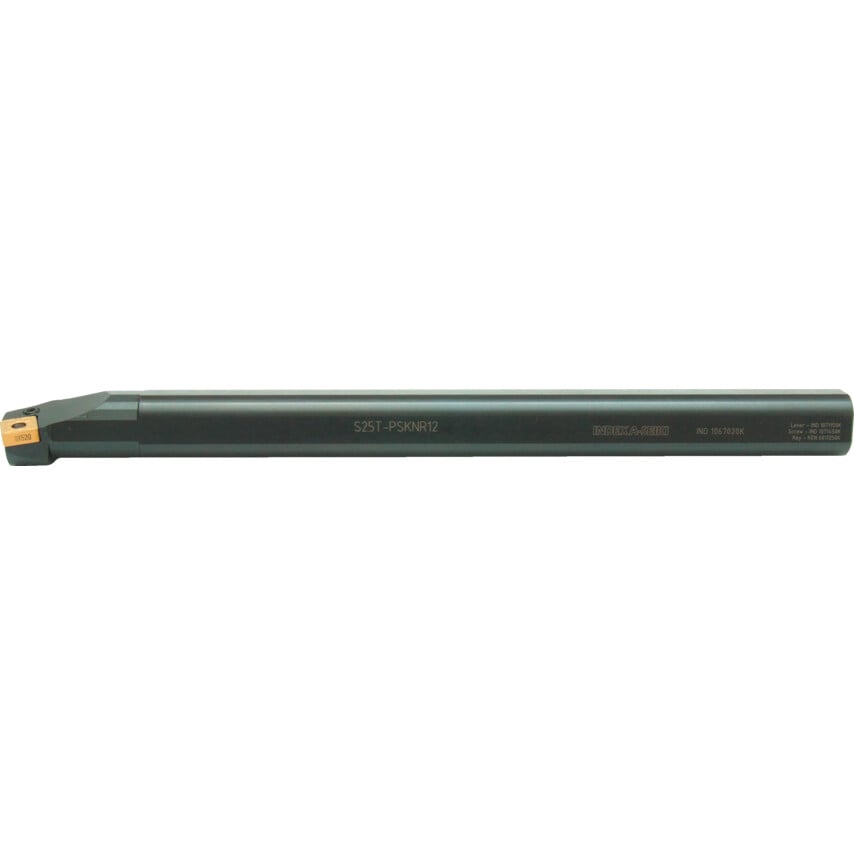

75 Approach for negative square inserts.

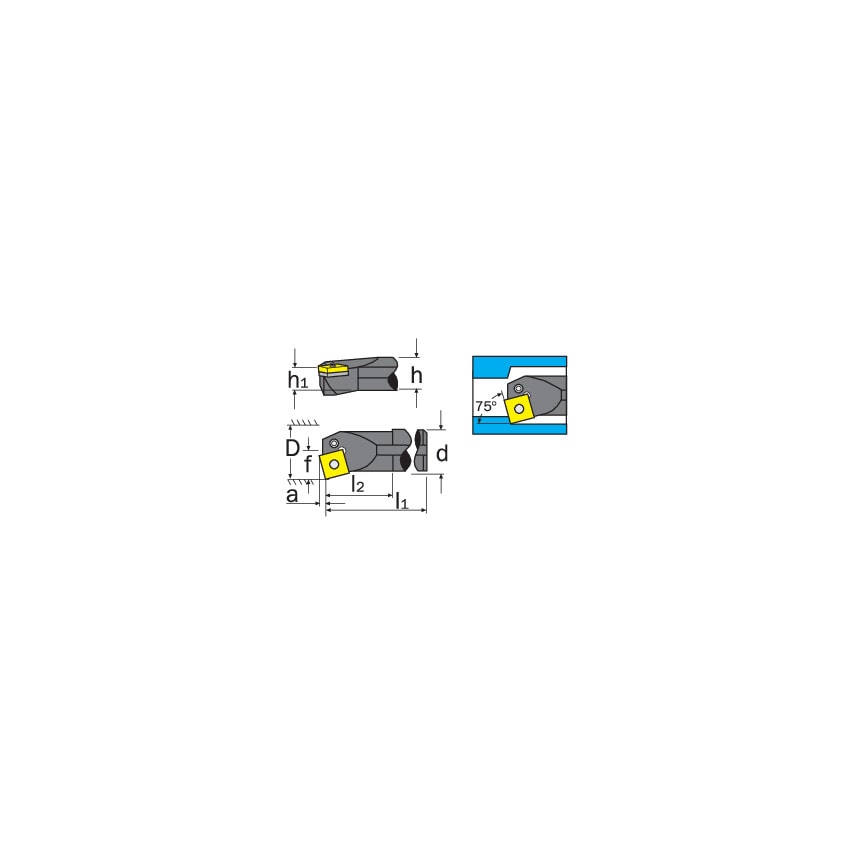

| Centre To Cutting Tip | 17mm |
| Insert Cutting Edge Length | 12.70mm |
| Approach Angle | 75\u00b0 |
| Cutting Height (h1) | 11.50mm |
| Toolholder Style | PSKN |
| Cutting Direction | Right Hand |
| Shank Material | Steel |
| ISO Designation | S25T PSKNR 12 |
| Shank Height (h) | 23.00mm |
| Clearance Angle | 0\u00b0 |
| Minimum Bore Diameter (D) | 31.00mm |
| Set Type | Individual Boring Bar |
| Coolant Delivery | External |

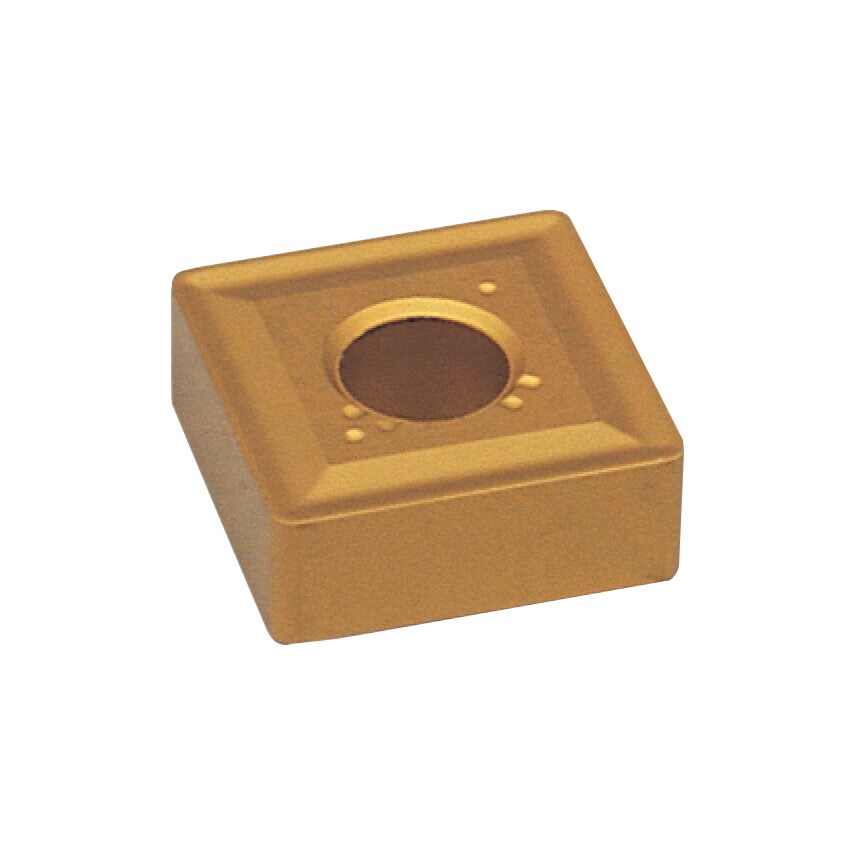

| Insert Shape | Square |
| Insert Style | SN_G |
| Overall Length (l1) | 300.00mm |
| Insert Inscribed Circle | 12.70mm |
| Insert Holding Type | Lever Lock |
| Insert Size | 1204 |
| Shank Diameter (d) | 25.00mm |
| Neck Length (l2) | 40.00mm |
| MFR Part No. | S25T-PSKNR12 |
