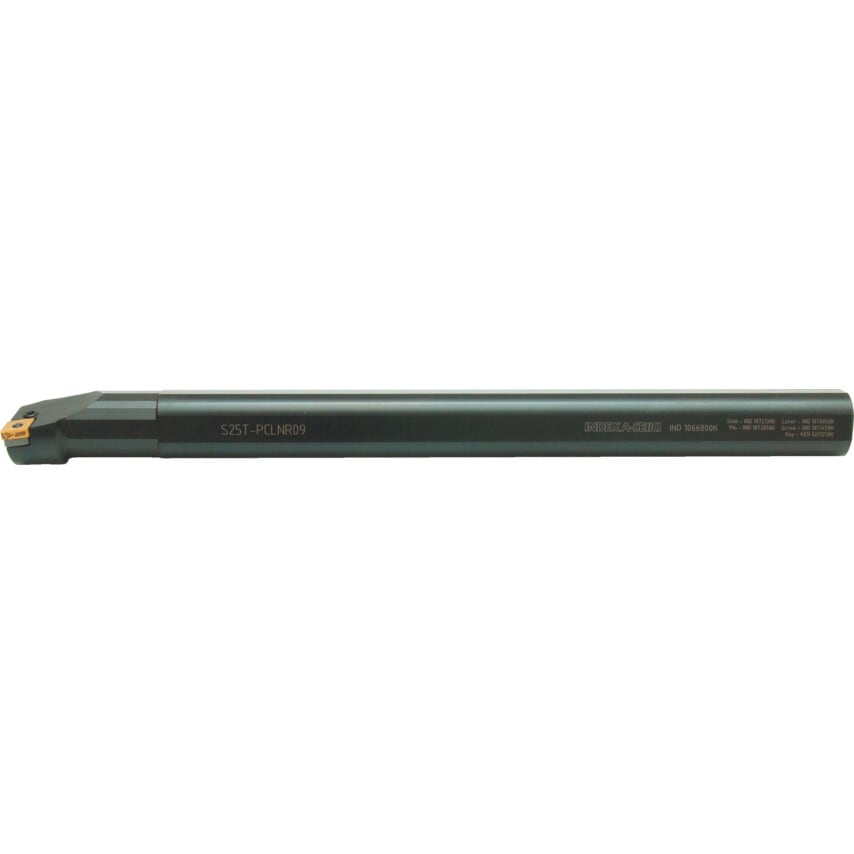

95 approach for 80 negative rhombic inserts.

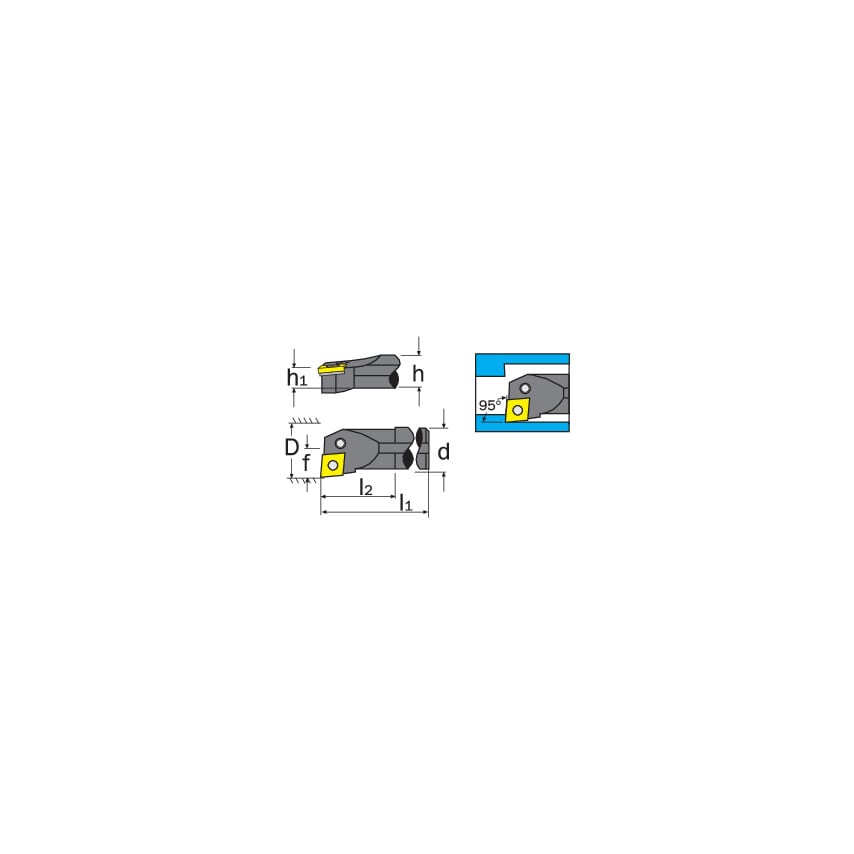

| Centre To Cutting Tip | 17mm |
| Shank Material | Steel |
| Overall Length (l1) | 300mm |
| Insert Holding Type | Lever Lock |
| Clearance Angle | 0\u00b0 |
| Toolholder Style | PCLN |
| MFR Part No. | S25T-PCLNR12 |
| Insert Size | 1204 |
| Cutting Direction | Right Hand |
| Shank Diameter (d) | 25mm |
| ISO Designation | S25T PCLNR 12 |
| Insert Style | CN_A | CN_G |
| Approach Angle | 95\u00b0 |
| Coolant Delivery | External |
| Cutting Height (h1) | 11.5mm |
| Insert Cutting Edge Length | 12.9mm |
| Shank Height (h) | 23mm |
| Insert Shape | 80\u00b0 Rhombic |
| Neck Length (l2) | 40mm |
| Insert Inscribed Circle | 12.7mm |
| Minimum Bore Diameter (D) | 31mm |
| Set Type | Individual Boring Bar |
