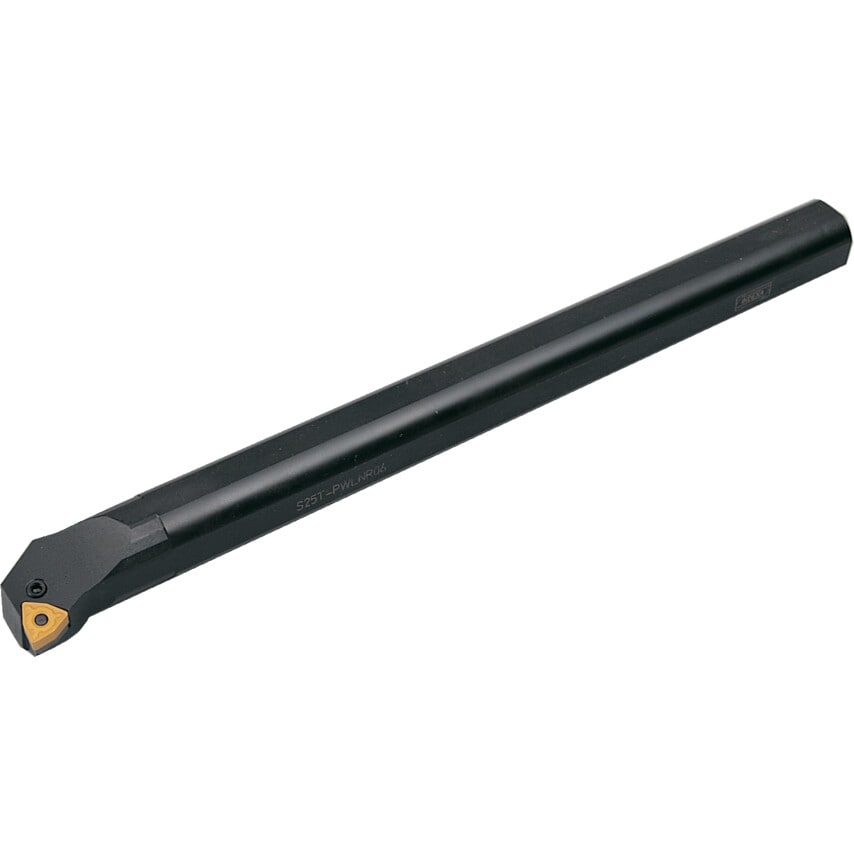

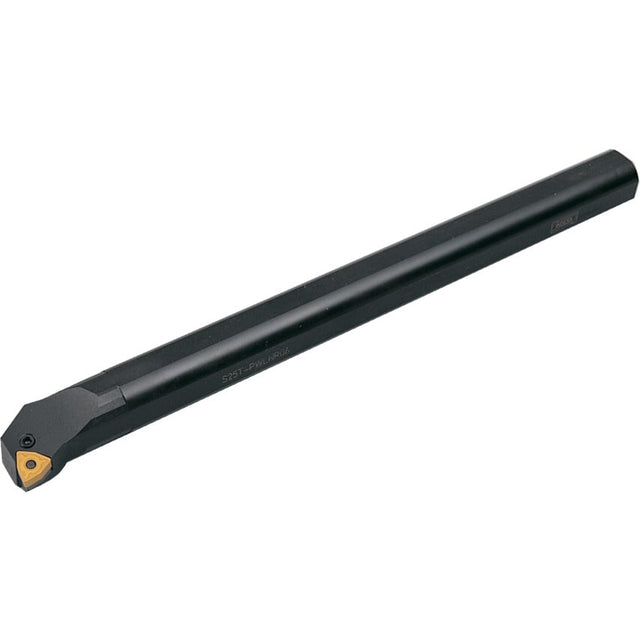

95 approach for negative 80 Trigon inserts.

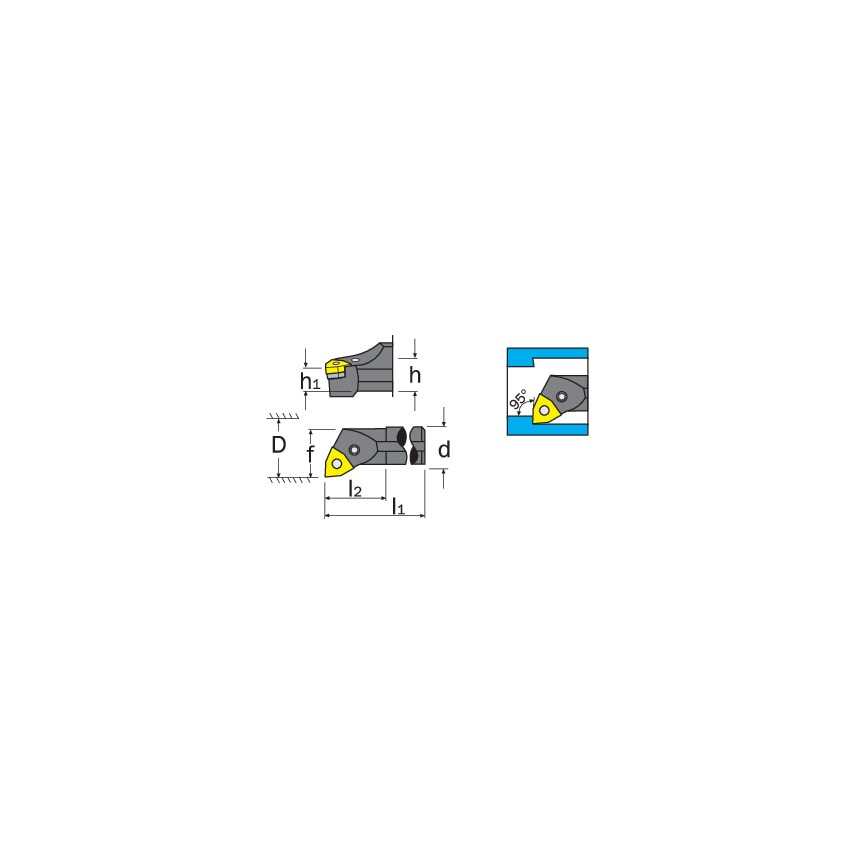

| MFR Part No. | S16R-PWLNL06 |
| Shank Diameter (d) | 16.00mm |
| Cutting Height (h1) | 9.00mm |
| Coolant Delivery | External |
| Neck Length (l2) | 44.00mm |
| ISO Designation | S16R PWLNR 06 |
| Insert Style | WN_G |
| Insert Cutting Edge Length | 6.50mm |
| Minimum Bore Diameter (D) | 19.00mm |
| Overall Length (l1) | 200.00mm |

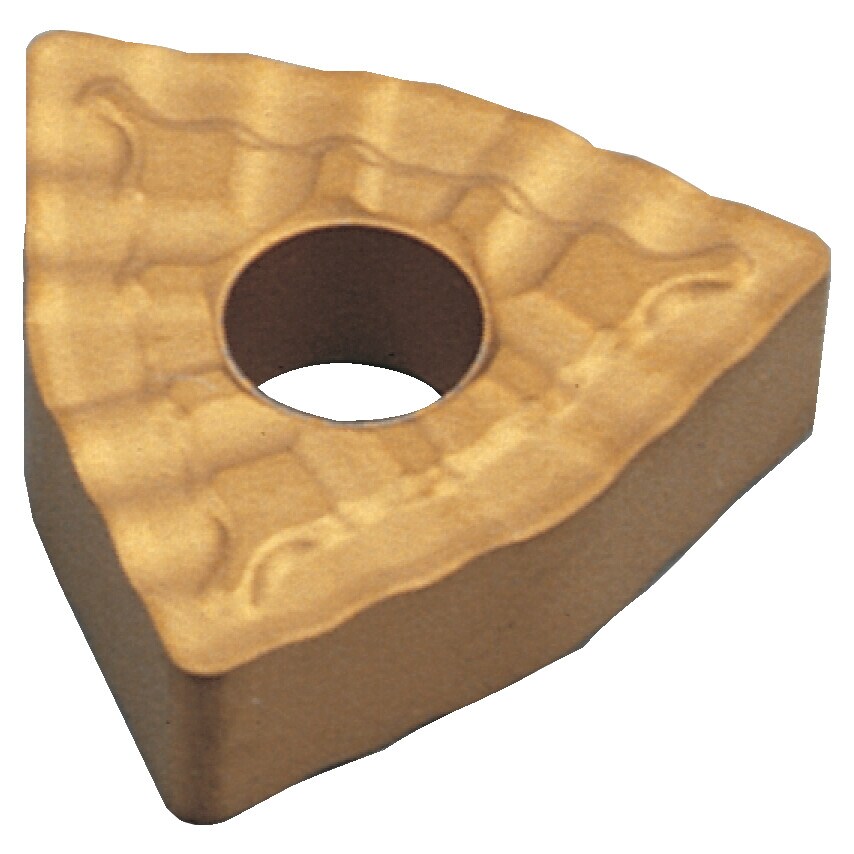

| Insert Shape | Trigon |
| Shank Height (h) | 15.00mm |
| Clearance Angle | 0\u00b0 |
| Insert Inscribed Circle | 9.52mm |
| Insert Size | 0604 |
| Set Type | Individual Boring Bar |
| Approach Angle | 95\u00b0 |
| Toolholder Style | PWLN |
| Insert Holding Type | Lever Lock |
| Cutting Direction | Right Hand |
| Centre To Cutting Tip | 10mm |
| Shank Material | Steel |
