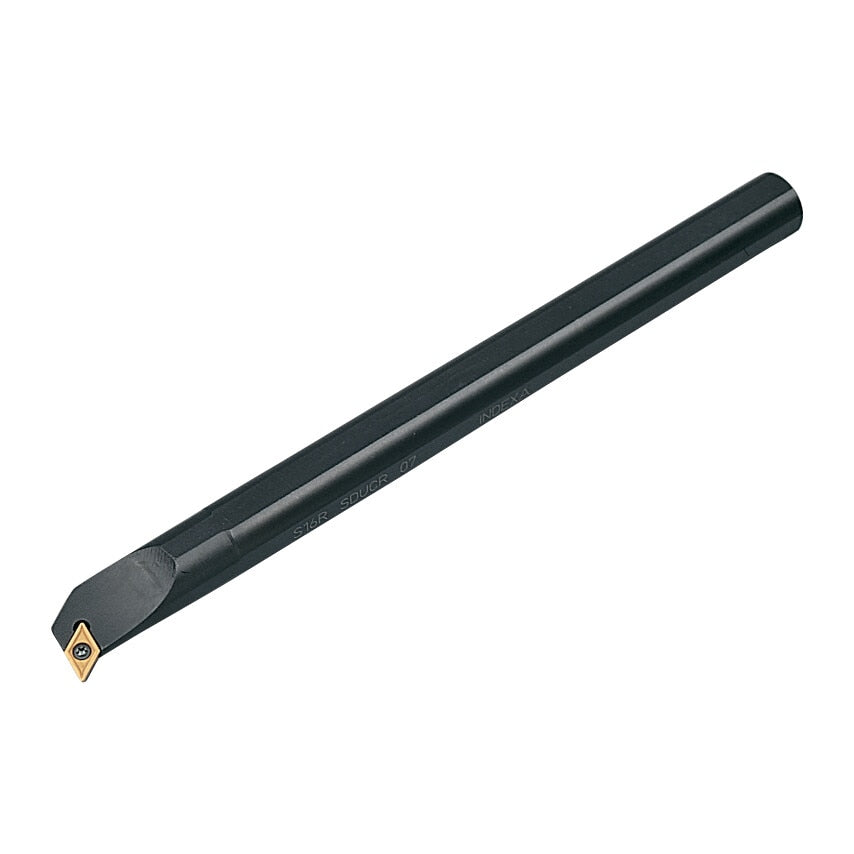

93 approach for 7 positive 55 rhombic inserts.
| Insert Cutting Edge Length | 11.6mm |
| Insert Inscribed Circle | 9.52mm |
| Minimum Bore Diameter (D) | 24mm |
| Insert Style | DC_T |
| Insert Holding Type | Screw-On |
| Clearance Angle | 7\u00b0 |
| Overall Length (l1) | 250mm |
| Cutting Height (h1) | 9mm |
| ISO Designation | S20S SDUCR 11 |
| Shank Height (h) | 18mm |
| Cutting Direction | Right Hand |
| Centre To Cutting Tip | 13mm |
| MFR Part No. | 106-772 |
| Coolant Delivery | External |
| Toolholder Style | DC_T |
| Insert Shape | 55\u00b0 Rhombic |
| Neck Length (l2) | 35mm |
| Shank Diameter (d) | 20mm |
| Shank Material | Steel |
| Insert Size | 11T3mm |
| Approach Angle | 93\u00b0 |
| Set Type | Individual Boring Bar |
