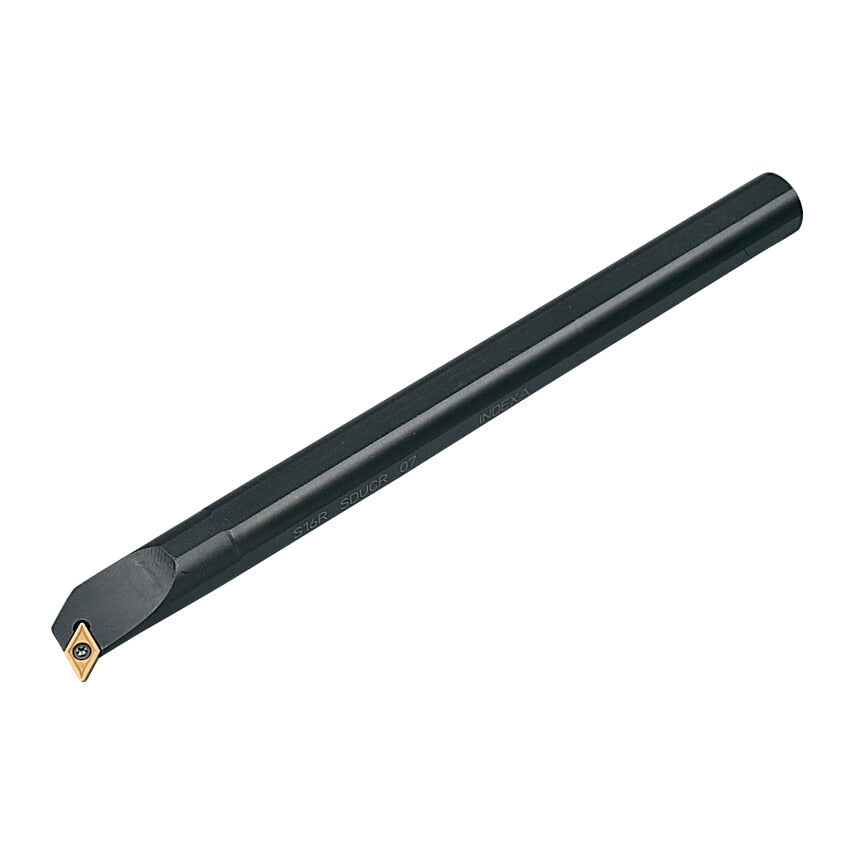

93 approach for 7 positive 55 rhombic inserts.

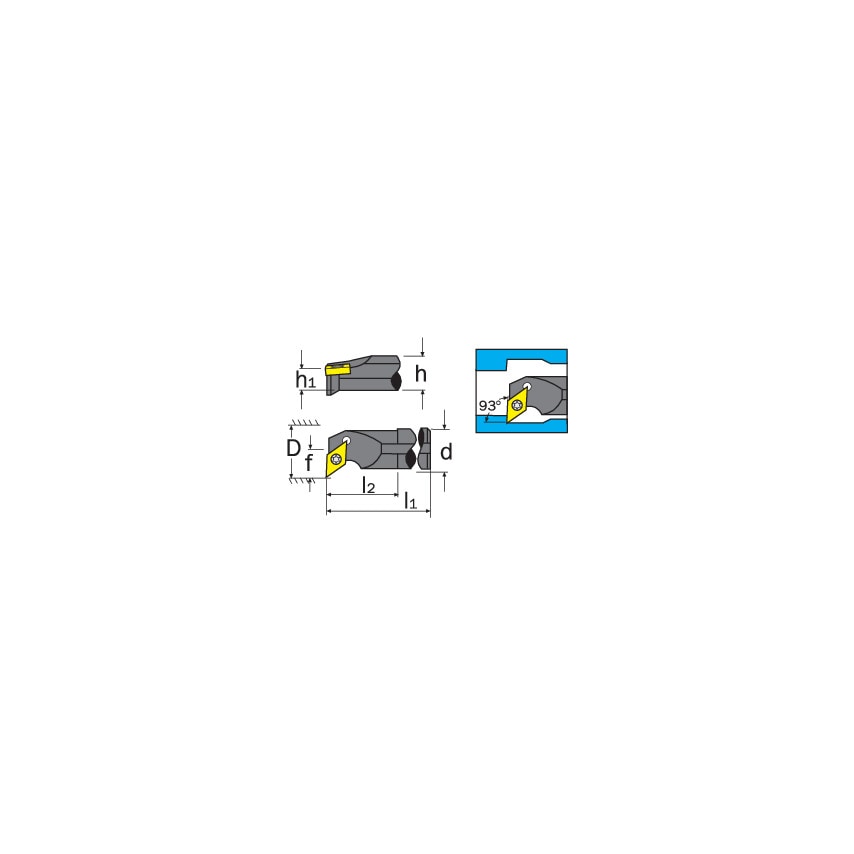

| ISO Designation | S16R SDUCR 07 |
| Cutting Height (h1) | 7.5mm |
| Set Type | Individual Boring Bar |

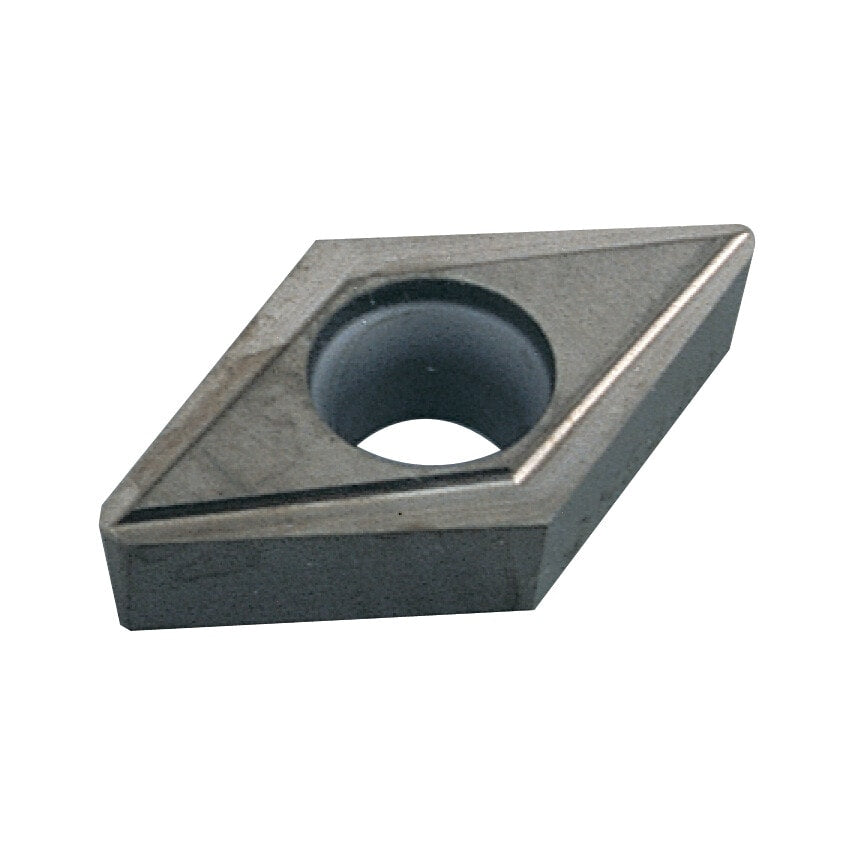

| Insert Shape | 55\u00b0 Rhombic |
| Insert Style | DC_T |
| Cutting Direction | Right Hand |
| Insert Holding Type | Screw-On |
| Overall Length (l1) | 200mm |
| Clearance Angle | 7\u00b0 |
| MFR Part No. | S16R-SDUCR07 |
| Shank Height (h) | 15mm |
| Insert Inscribed Circle | 6.35mm |
| Insert Size | 0702mm |
| Toolholder Style | DC_T |
| Centre To Cutting Tip | 11mm |
| Insert Cutting Edge Length | 7.8mm |
| Shank Diameter (d) | 16mm |
| Coolant Delivery | External |
| Approach Angle | 93\u00b0 |
| Minimum Bore Diameter (D) | 20mm |
| Neck Length (l2) | 30mm |
| Shank Material | Steel |
