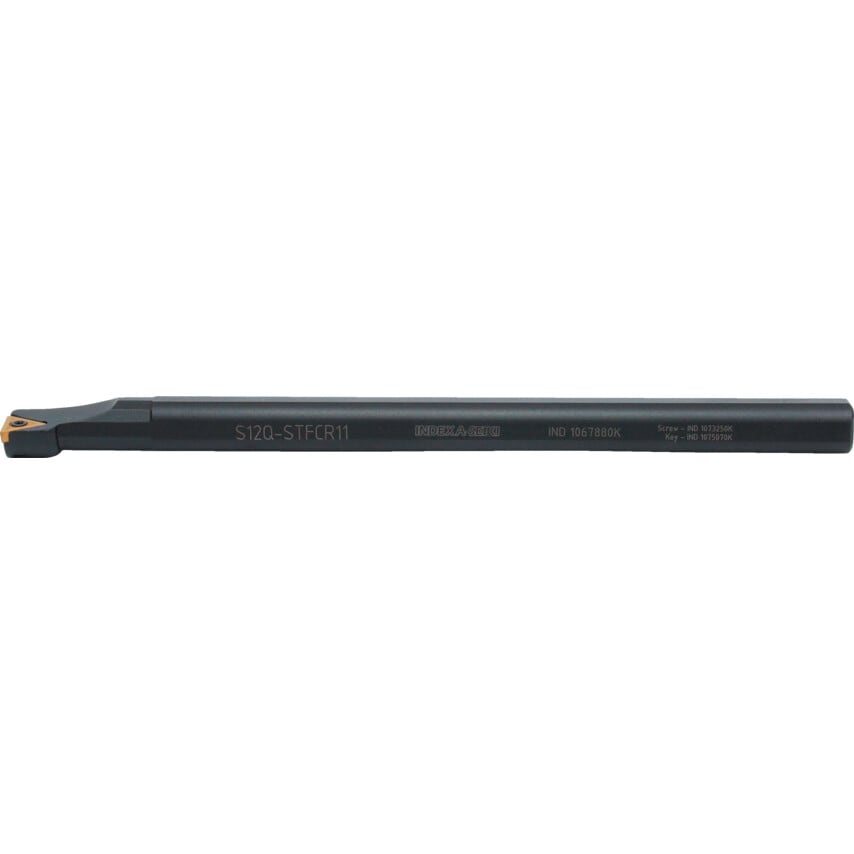

90 approach for 7 positive triangular inserts.

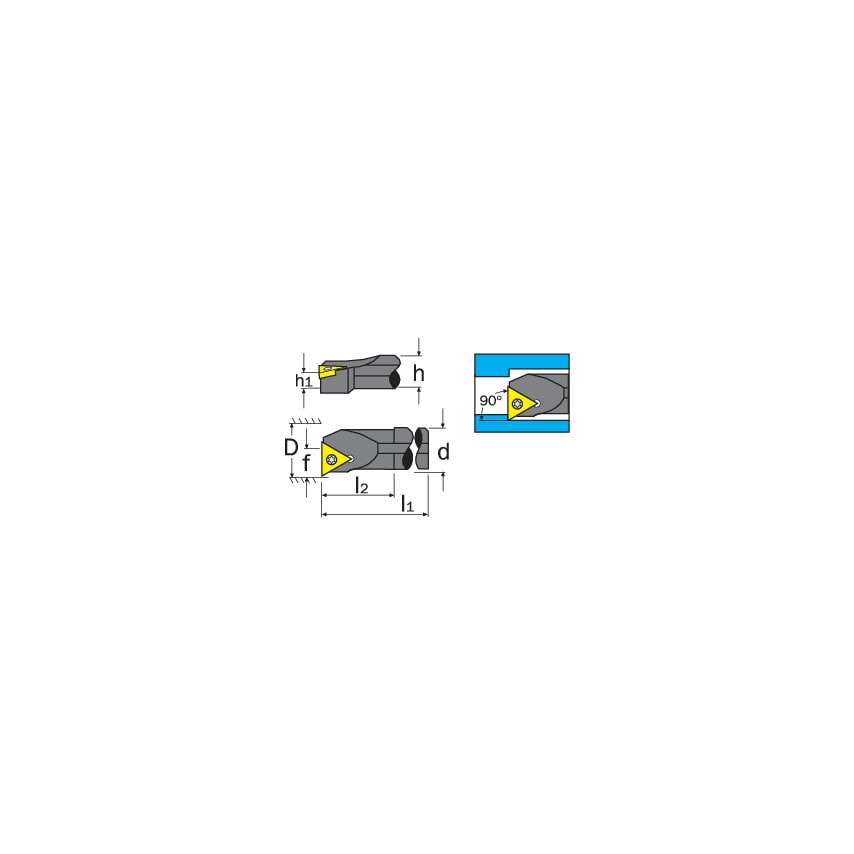

| Approach Angle | 90\u00b0 |
| Shank Diameter (d) | 16.00mm |
| Neck Length (l2) | 30.00mm |
| Coolant Delivery | External |
| Toolholder Style | STFC |
| Overall Length (l1) | 200.00mm |
| MFR Part No. | S16R-STFCR11 |
| ISO Designation | S16R STFCR 11 |
| Shank Material | Steel |
| Clearance Angle | 7\u00b0 |
| Insert Cutting Edge Length | 11.00mm |
| Set Type | Individual Boring Bar |
| Cutting Height (h1) | 7.50mm |
| Insert Holding Type | Screw-On |

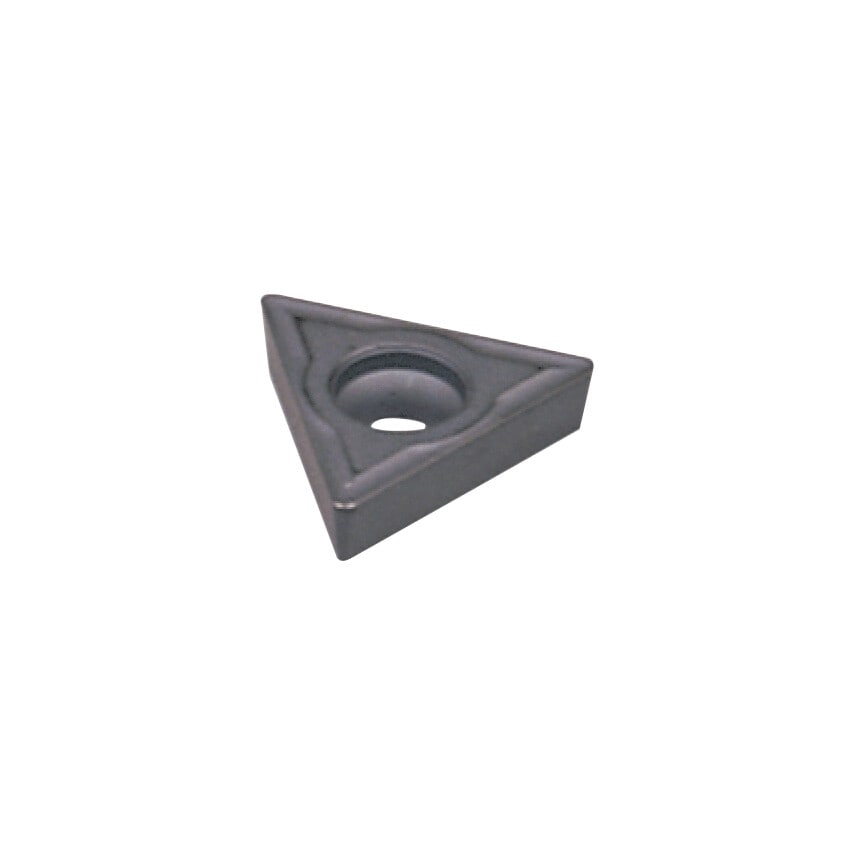

| Insert Style | TC_T |
| Insert Shape | Triangle |
| Shank Height (h) | 15.00mm |
| Centre To Cutting Tip | 11mm |
| Insert Size | 1102mm |
| Minimum Bore Diameter (D) | 20.00mm |
| Cutting Direction | Right Hand |
| Insert Inscribed Circle | 6.35mm |
