90 approach for 7 positive triangular inserts.

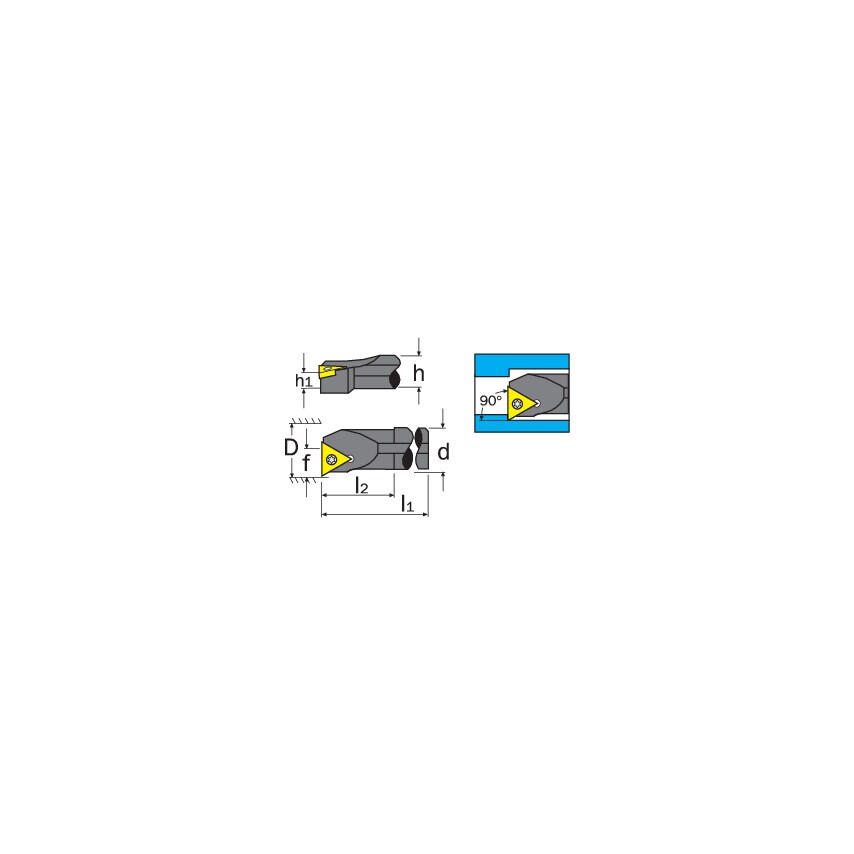

| Insert Holding Type | Screw-On |
| Insert Size | 16T3mm |
| Insert Inscribed Circle | 9.52mm |
| Cutting Direction | Right Hand |
| Shank Diameter (d) | 25.00mm |
| ISO Designation | S25T STFCR 16 |
| Insert Cutting Edge Length | 16.50mm |
| Coolant Delivery | External |
| Insert Style | TC_T |
| Set Type | Individual Boring Bar |
| Overall Length (l1) | 300.00mm |
| Minimum Bore Diameter (D) | 31.00mm |

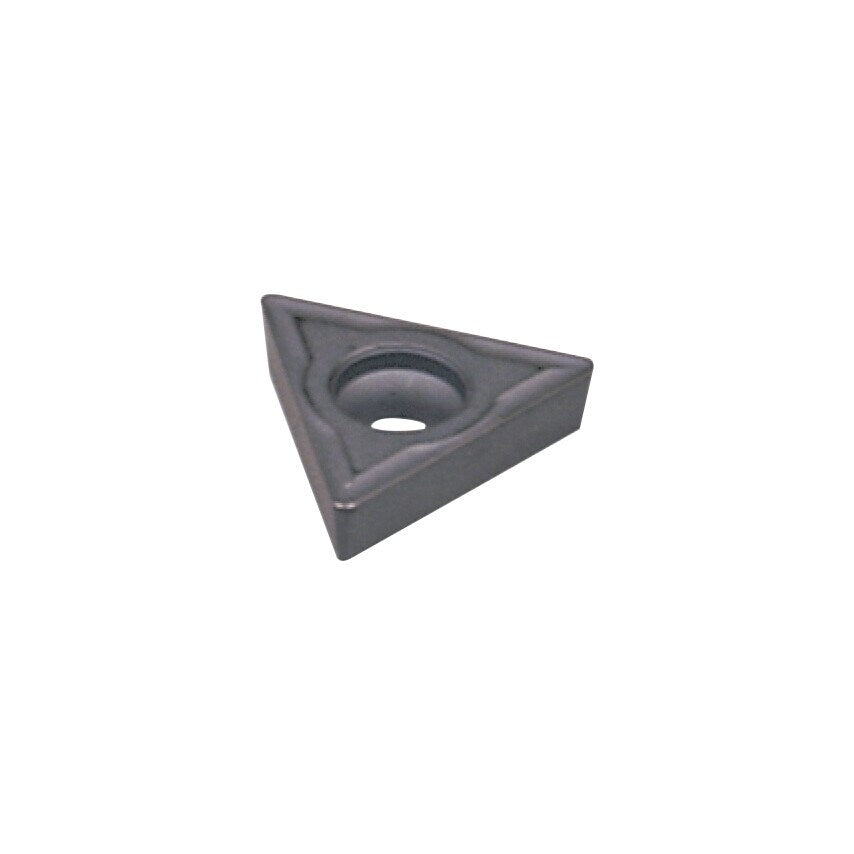

| Insert Shape | Triangle |
| Shank Height (h) | 23.00mm |
| Toolholder Style | STFC |
| Shank Material | Steel |
| Cutting Height (h1) | 11.50mm |
| MFR Part No. | 0 |
| Clearance Angle | 7\u00b0 |
| Centre To Cutting Tip | 17mm |
| Approach Angle | 90\u00b0 |
| Neck Length (l2) | 40.00mm |
