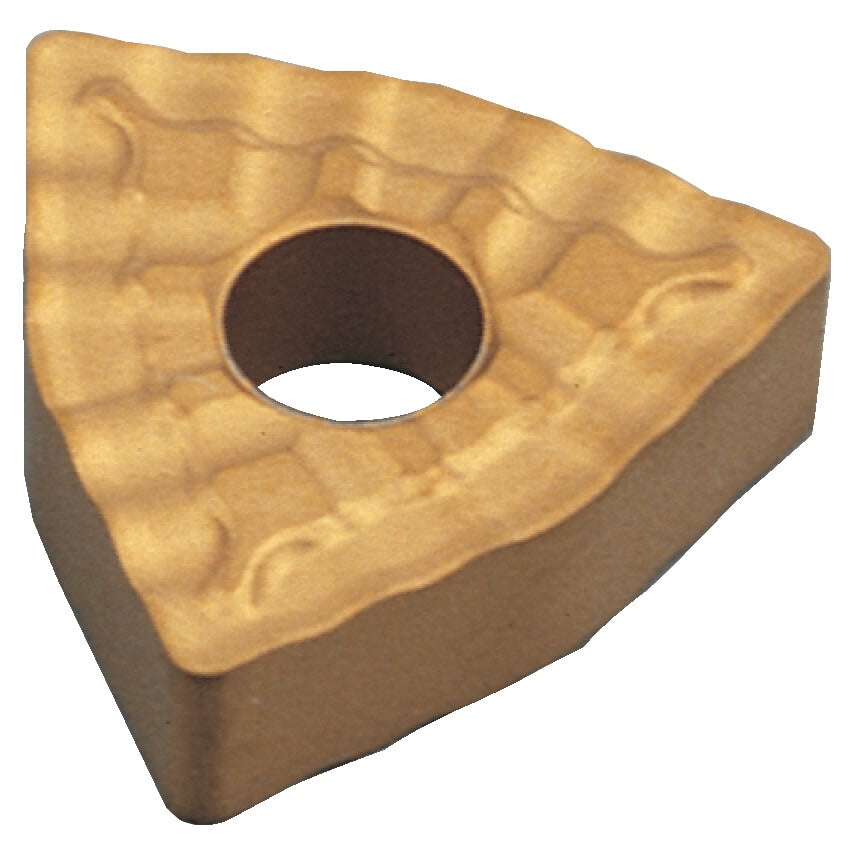

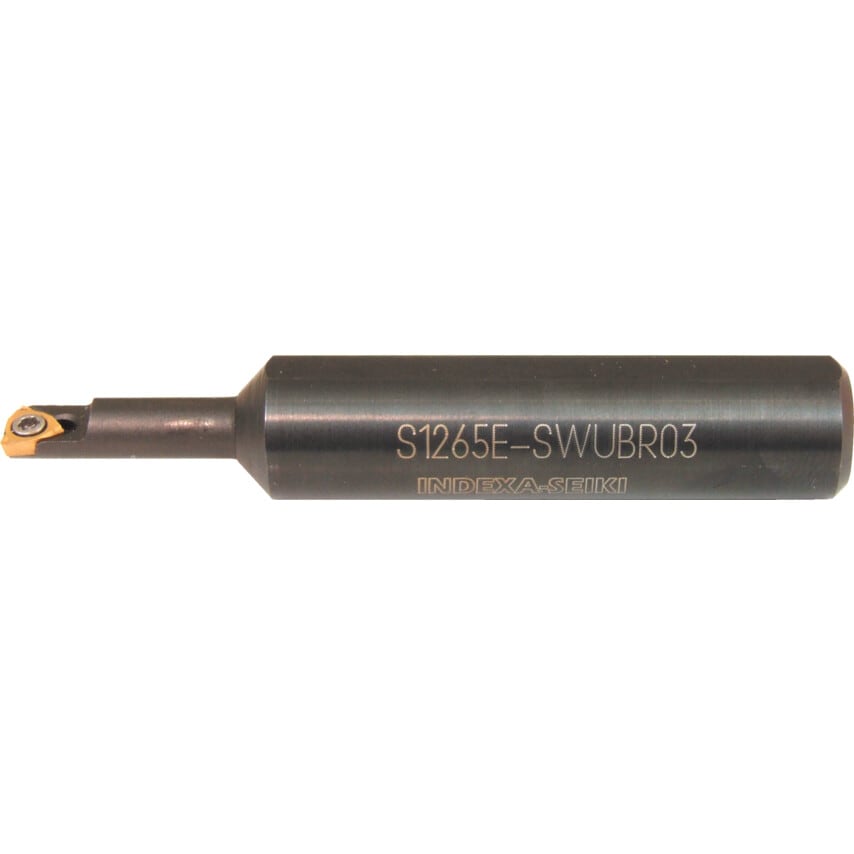

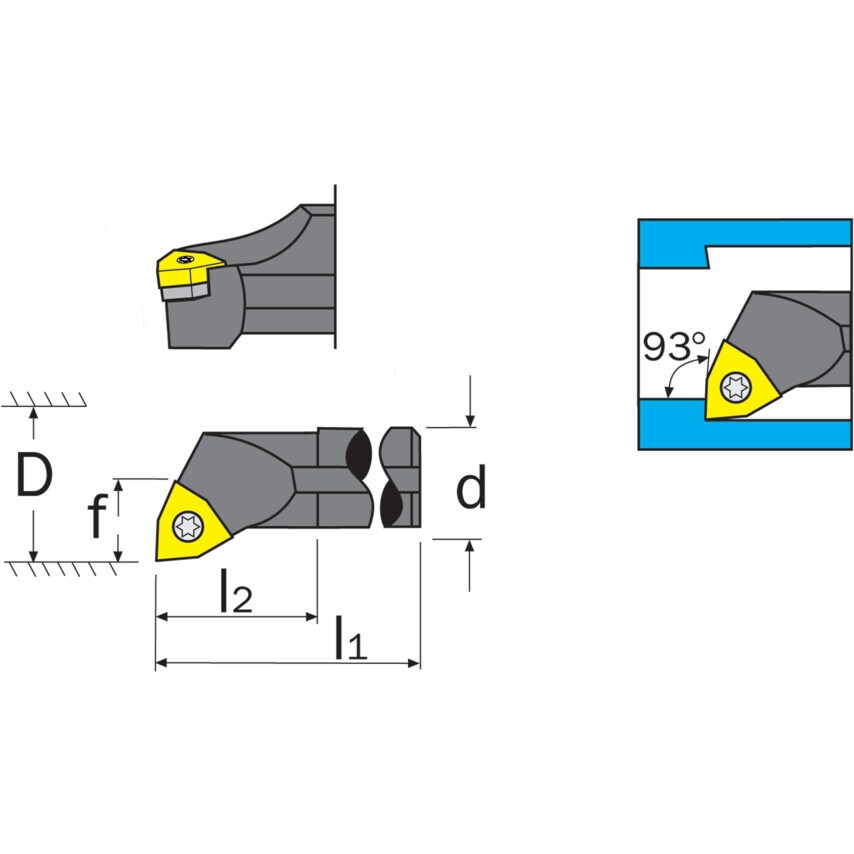

93 approach for 80 positive trigon inserts.
| Coolant Delivery | External |
| Minimum Bore Diameter (D) | 12.0mm |
| Neck Length (l2) | 42mm |
| Set Type | Individual Boring Bar |
| Shank Material | Steel |
| ISO Designation | S1212_SWUBR=03 |
| Insert Size | 0301mm |
| Insert Holding Type | Screw-On |
| Overall Length (l1) | 92mm |
| Insert Shape | Trigon |
| Approach Angle | 93\u00b0 |
| Centre To Cutting Tip | 6mm |
| Insert Style | WB_T |
| Toolholder Style | WB_T |
| Cutting Direction | Right Hand |
| Shank Diameter (d) | 12mm |
