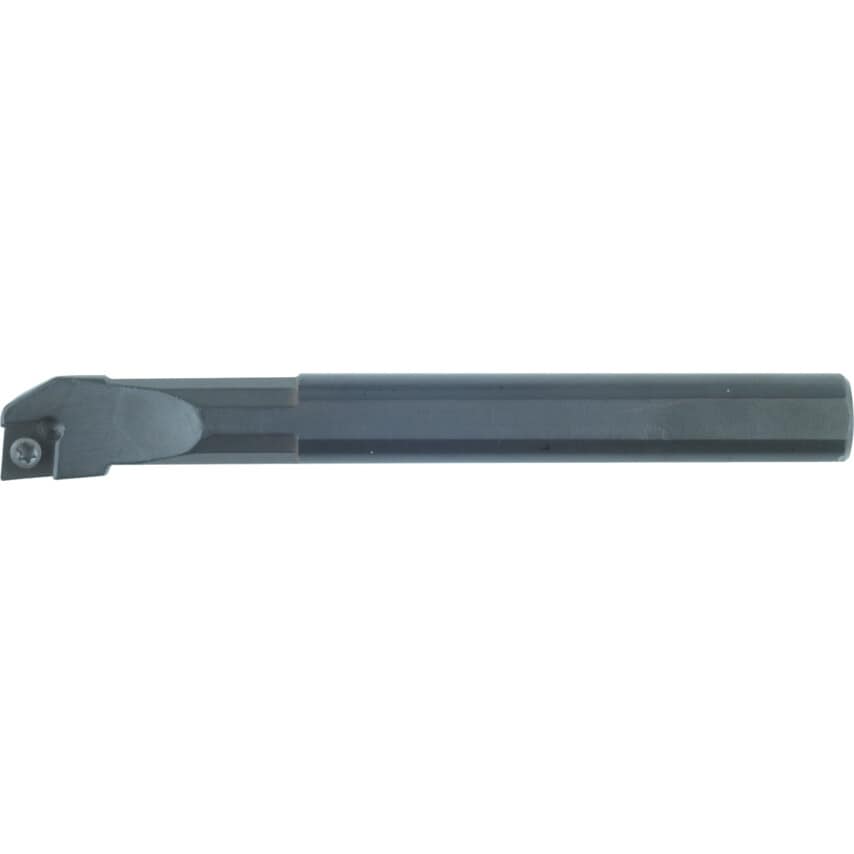

95 approach for 7 positive 80 rhombic inserts.

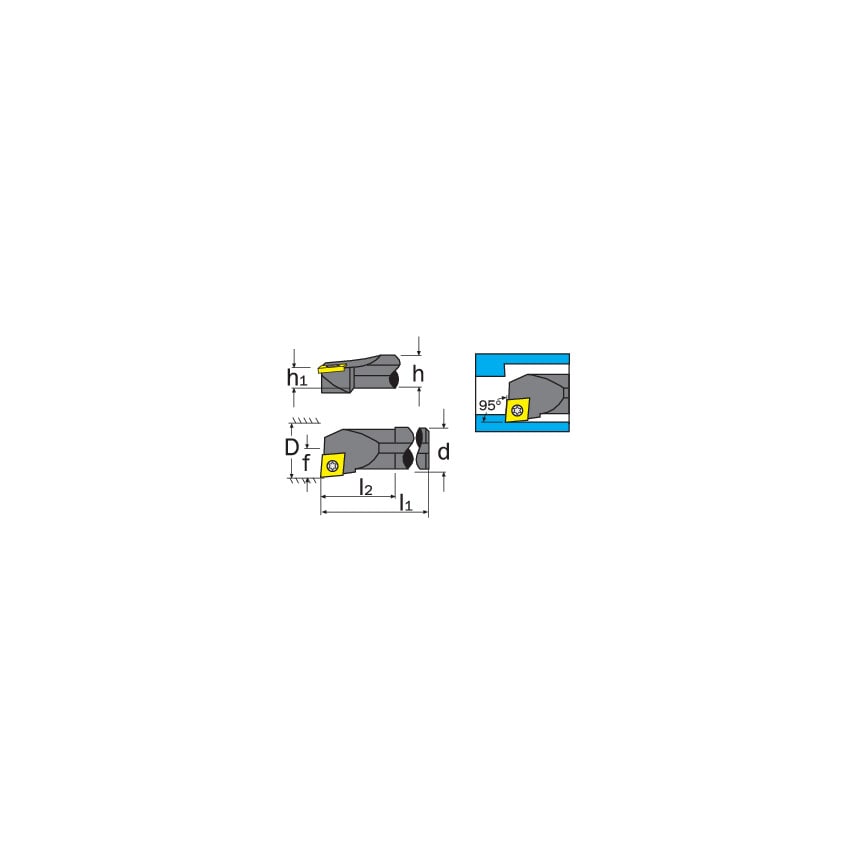

| Insert Size | 09T3mm |
| Centre To Cutting Tip | 9mm |
| Clearance Angle | 7\u00b0 |
| Insert Style | CC_T |
| Insert Shape | 80\u00b0 Rhombic |
| Overall Length (l1) | 180mm |
| Neck Length (l2) | 30mm |
| Cutting Height (h1) | 5.5mm |
| Product Type | Boring Bar |
| Shank Material | Steel |
| Insert Cutting Edge Length | 9.7mm |
| Toolholder Style | SCLC |
| Insert Inscribed Circle | 9.52mm |
| Approach Angle | 95\u00b0 |
| Shank Height (h) | 11mm |
| Shank Diameter (d) | 12mm |
| Minimum Bore Diameter (D) | 17mm |
| Cutting Direction | Left Hand |
| Set Type | Individual Boring Bar |
| Coolant Delivery | External |
| Insert Holding Type | Screw-On |
| MFR Part No. | S12Q-SCLCL09 |
| ISO Designation | S12Q SCLCL 09 |
