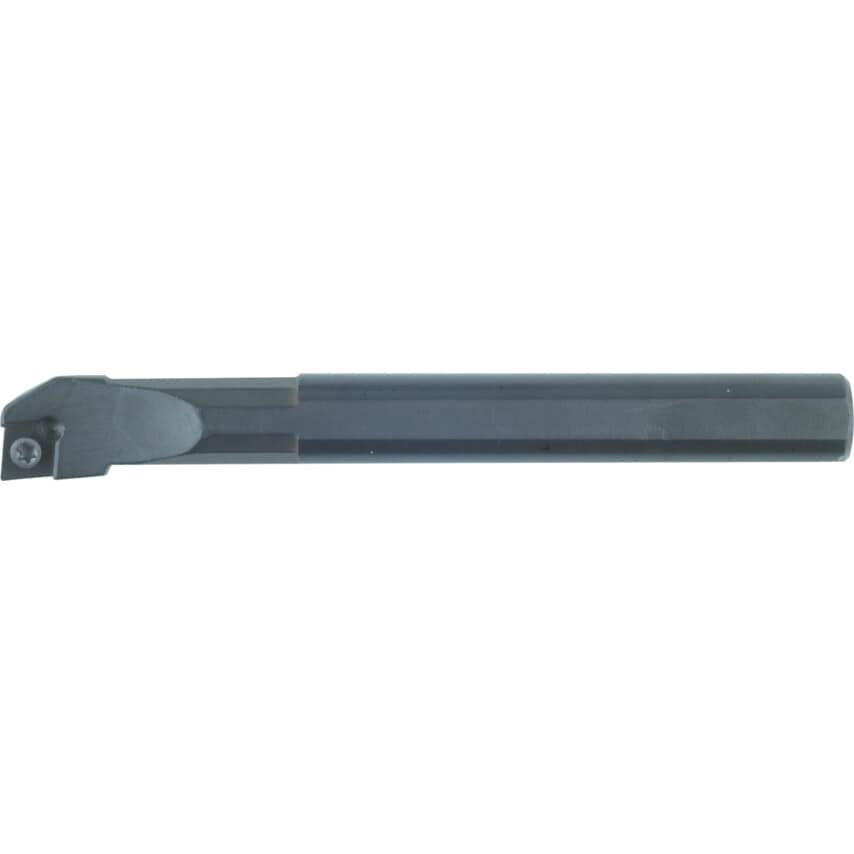

95 approach for 7 positive 80 rhombic inserts.

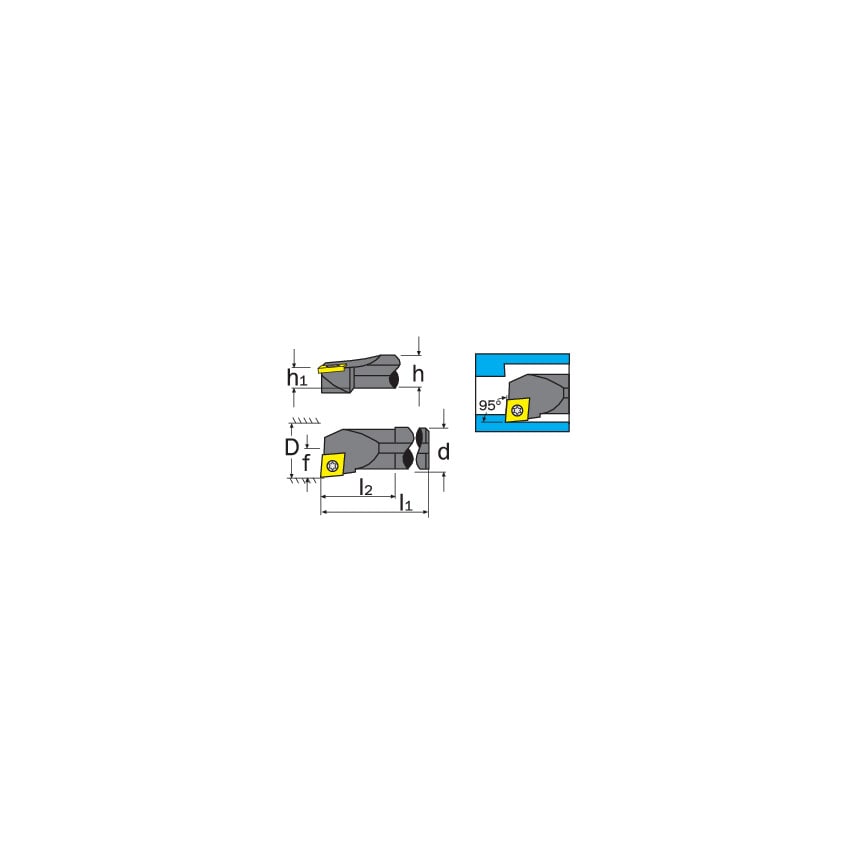

| Insert Cutting Edge Length | 6.5mm |
| ISO Designation | S08K SCLCL 06 |
| Shank Height (h) | 7mm |
| Minimum Bore Diameter (D) | 11mm |
| Neck Length (l2) | 16mm |
| Coolant Delivery | External |
| Insert Holding Type | Screw-On |
| Set Type | Individual Boring Bar |
| Overall Length (l1) | 125mm |
| Insert Shape | 80\u00b0 Rhombic |
| Toolholder Style | SCLC |
| Product Type | Boring Bar |
| Insert Style | CC_T |
| Shank Diameter (d) | 8mm |
| Cutting Direction | Left Hand |
| Shank Material | Steel |
| Approach Angle | 95\u00b0 |
| Insert Inscribed Circle | 6.35mm |
| Insert Size | 0602mm |
| Clearance Angle | 7\u00b0 |
| MFR Part No. | 106-7390 |
| Centre To Cutting Tip | 5mm |
| Cutting Height (h1) | 3.5mm |
