95 approach. Uses CCMT 06 inserts.

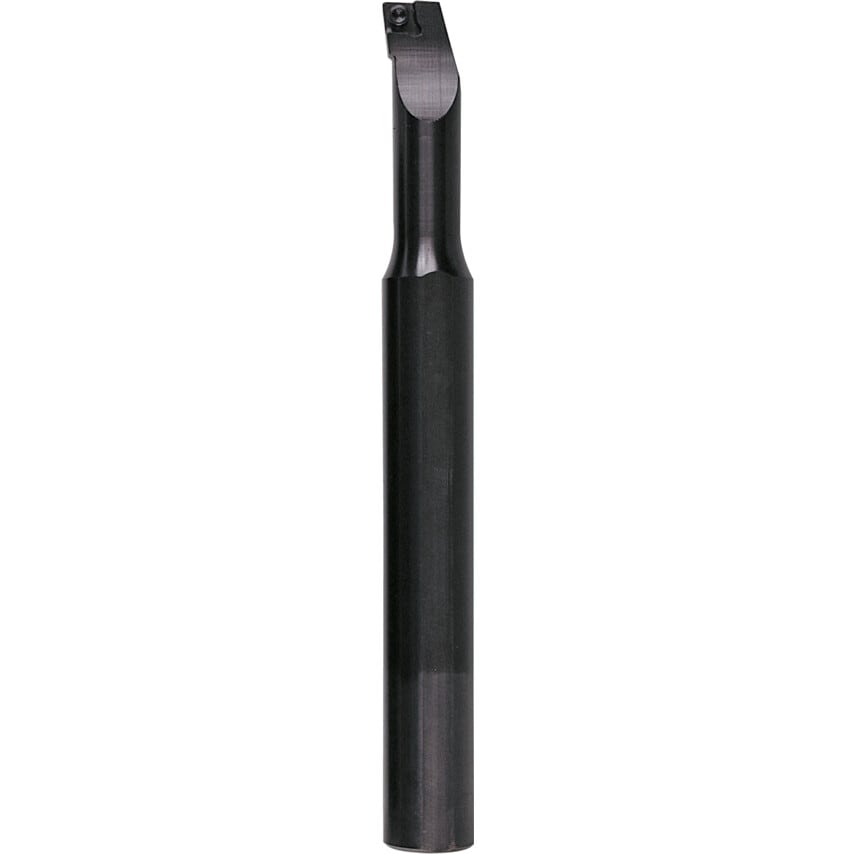

SCLCR Screw-on Boring Bars
SCLCR 95 approach screw-on boring bar for use with a CCMT 06 insert. For small diameter bores on manual and CNC lathes.

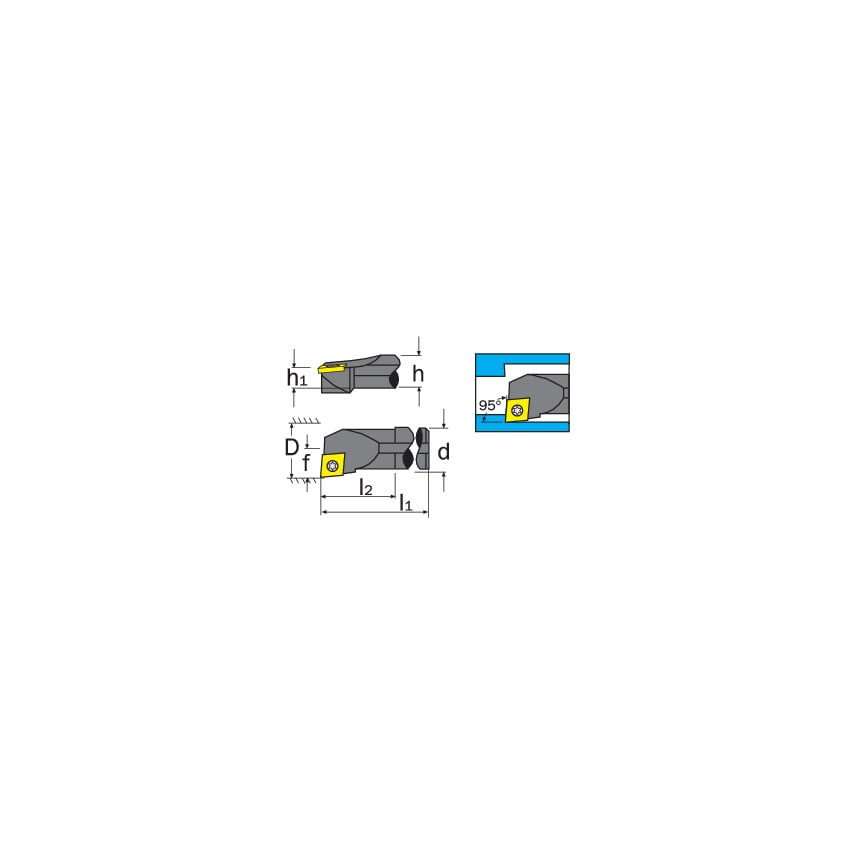

| Cutting Direction | Right Hand |
| Overall Length (l1) | 150mm |
| Insert Cutting Edge Length | 6.5mm |
| Insert Shape | 80\u00b0 Rhombic |
| Clearance Angle | 7\u00b0 |
| Minimum Bore Diameter (D) | 18mm |
| MFR Part No. | A1216M SCLCR 06 |
| Shank Material | Steel |
| Toolholder Style | SCLC |
| Insert Inscribed Circle | 6.35mm |
| ISO Designation | A1216M SCLCR 06 |
| Centre To Cutting Tip | 9mm |
| Coolant Delivery | Internal |
| Shank Diameter (d) | 12mm |
| Neck Length (l2) | 50mm |
| Approach Angle | 95\u00b0 |
| Insert Size | 0602mm |
| Insert Holding Type | Screw-On |
| Set Type | Individual Boring Bar |
| Insert Style | CC_T |
| Shank Height (h) | 15mm |
