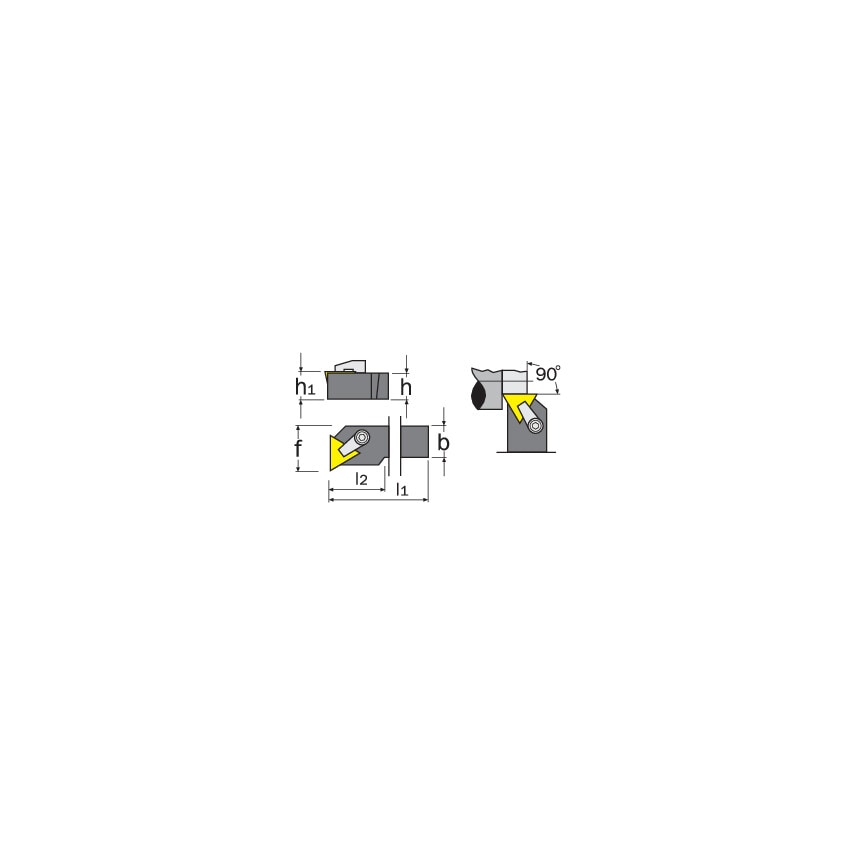

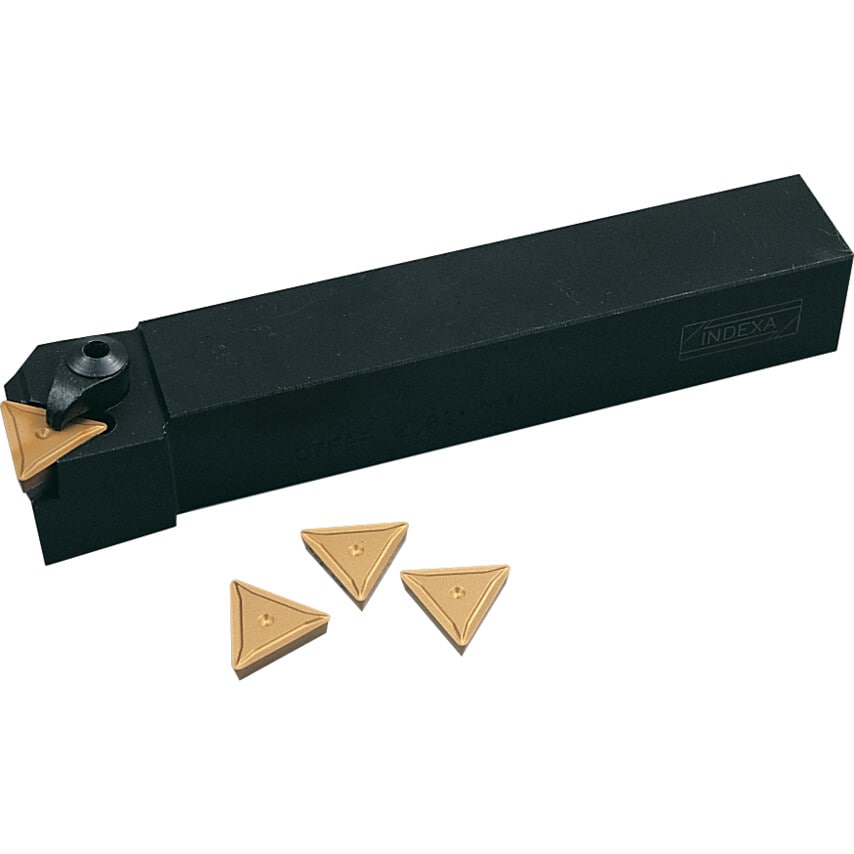

90 Approach for 11 positive triangular inserts.
| Set Type | Individual Toolholder |
| Insert Holding Type | Top Clamp |
| Shank Width (b) | 16 |
| MFR Part No. | CTFPR1616H11 |
| Side to Cutting Tip (f) | 20 |
| Neck Length | 22mm |
| Coolant Delivery | External |
| Toolholder Style | CTFP |
| Approach Angle | 90 |
| Insert Shape | Triangular |
| Insert Cutting Edge Length | 11 |
| ISO Designation | CTFPR 1616H11 |
| Shank Style | Straight |
| Insert Style | TP_N | TP_R |
| Cutting Height (h1) | 16 |
| Overall Length (l1) | 100 |
| Clearance Angle | 25 |
| Insert Size | 1103 |
| Shank Material | Steel |
| Shank Height (h) | 16 |
| Cutting Direction | Right Hand |
| Head Length (l2) | 22 |
| Insert Inscribed Circle | 6.35 |
